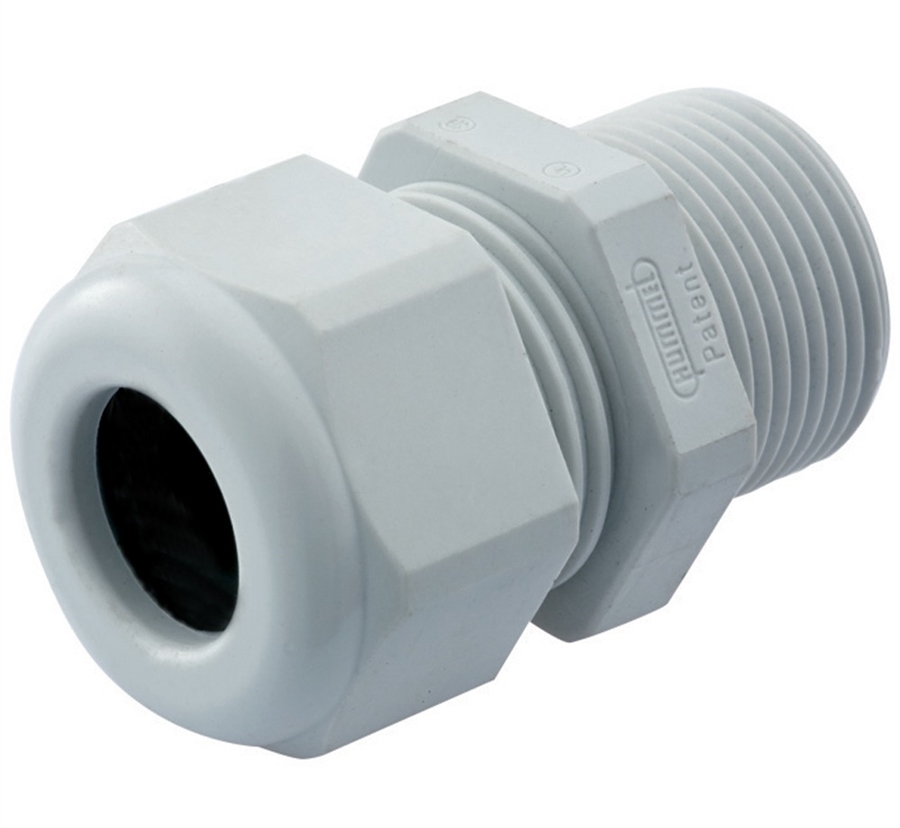

Sealcon CD50DA-GY high quality gray nylon cord grip is designed for the toughest applications. Also known as Hummel 1.209.5000.30. Sold Individually.
Locking nut & O-Ring sold separately

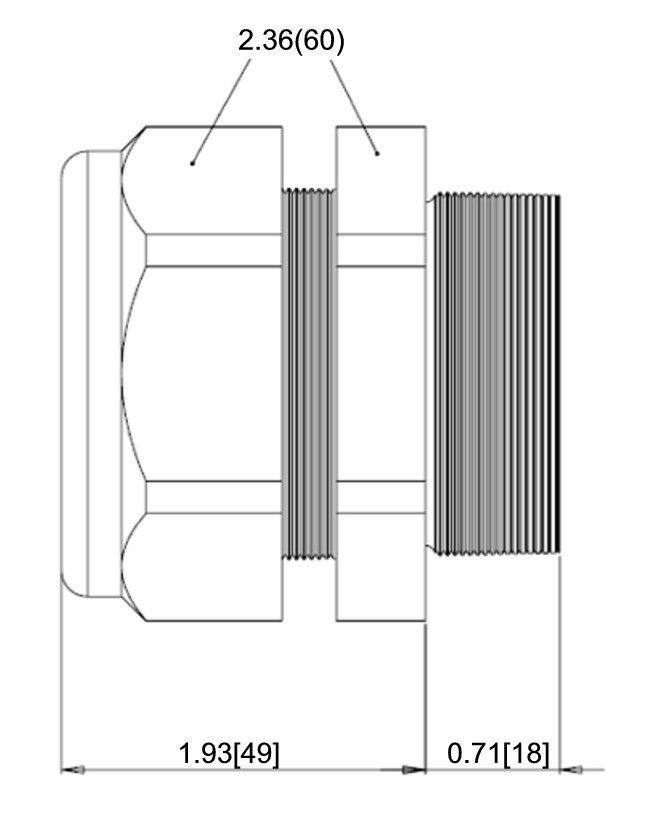

Specifications
- Thread Size: M50 x 1.5
- Cable O.D. Range: 1.26" - 1.50" (32 - 38 mm)
- Through Hole Diameter: 1.97" (50 mm)
- Body Length: 1.93" (49 mm)
- Thread Length: .71" (18 mm)
- Wrench Flat Dome: 2.36" (60 mm)
- Wrench Flat Body: 2.36" (60 mm)
Features
- Nylon 6/6 Material with Buna-N Seal
- Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
- 150 psig (10 bar) Pressure Rating
- Flame Protected to UL 94
- Halogen and Phosphorous Free
- Vibration Resistant Dome
- Resists salt water, acids, alkalis', gasoline & oils.
- Durable Rugged Construction
- RoHS & Deca BDE, CSA approval
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals
- Waste Electrical and Electronic Equipment Directive
- UL / CUL Listed
- UL Registered
- EAC
- CE
- German Lloyd
- VDE
Sealcon Elongated M50 x 1.5 Metric Nylon / Plastic liquid tight cable glands are used to attach wire or cable to different applications in almost any industry. This strain relief fitting provides a NEMA 4x 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Elongated threads are often used when the cord grip goes through a thick wall, or simply if a longer thread length better serves the needs of the application. Sealcon strain relief cable glands have patented overlapping clamping splines and recessed custom grommets to help keep your cable protected from damage and the elements. The CD50DA-GY features a substantial amount of Pull-out resistance because it applies an even force on all points of the cable.
Sealcon CD50DA-GY Metric Size Elongated Cord Grip
|
|
|
