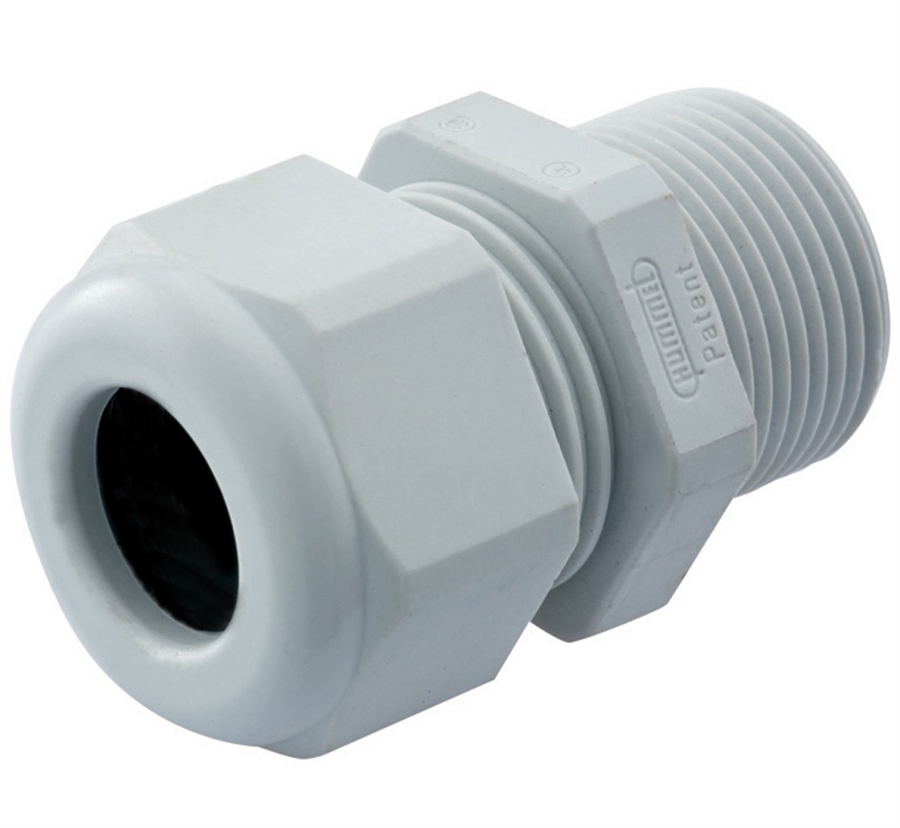

Sealcon CD16DA-GY high quality gray nylon cord grip with elongated thread is designed for the toughest applications. Also known as Hummel 1.209.1600.30. Sold Individually.
Locking nut & O-Ring sold separately
Specifications
- Thread Size: M16 x 1.5
- Cable O.D. Range: .16" - .31" (4 - 8 mm)
- Through Hole Diameter: .63" (16 mm)
- Body Length: .87" (22 mm)
- Thread Length: .59" (15 mm)
- Wrench Flat Dome: .75" (19 mm)
- Wrench Flat Body: .75" (19 mm)
Features
- Nylon 6/6 Material with Buna-N Seal
- Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
- 150 psig (10 bar) Pressure Rating
- Flame Protected to UL 94
- Halogen and Phosphorous Free
- Vibration Resistant Dome
- Resists salt water, acids, alkalis', gasoline & oils.
- Durable Rugged Construction
- RoHS & Deca BDE, CSA approval
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals
- Waste Electrical and Electronic Equipment Directive
- UL / CUL Listed
- UL Registered
- EAC
- CE
- German Lloyd
- VDE
Sealcon Elongated M16 x 1.5 Metric Nylon / Plastic Strain Relief Fittings are used when attaching cable or wire to applications in almost any industry. This cable gland provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Elongated thread is typically used in applications that need a longer thread length, or when the strain relief passes through a thick wall. Sealcon fittings feature patented overlapping clamping splines and recessed custom grommets to help protect your cable from damage and the elements. The CD16DA-BK cord grip has a substantial amount of Pull-out resistance because it applies concentric force on all points of the cable.
Sealcon CD16DA-GY Standard Insert Elongated Cord Grip
|
|
|
