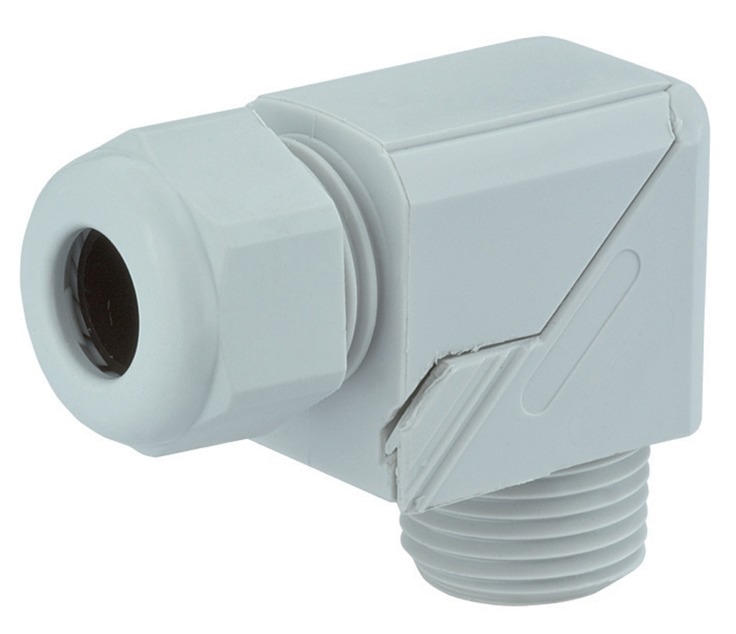

Sealcon ED09NA-GY high quality gray nylon snap elbow cord grip is designed for the toughest applications. Also known as Hummel 1.313.3800.70. Sold Individually.
Locking nut & O-Ring sold separately
Specifications
- Thread Size: 3/8" NPT
- Cable O.D. Range: .16" - .31" (4 - 8 mm)
- Through Hole Diameter: .68" (17.2 mm)
- Body Length: 1.77" (45 mm)
- Height: .91" (23 mm)
- Thread Length: .59" (15 mm)
- Wrench Flat Dome: .75" (19 mm)
- Wrench Flat Body: .75" (19 mm)
Features
- Nylon 6/6 Material with Buna-N Seal
- Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
- 150 psig (10 bar) Pressure Rating
- Flame Protected to UL 94
- Halogen and Phosphorous Free
- Vibration Resistant Dome
- Resists salt water, acids, alkalis', gasoline & oils.
- Durable Rugged Construction
- RoHS & Deca BDE, CSA approval
- Can be compatible with Heyco 8563 (Cable O.D. 0.181"-0.312"), Woodhead 5503 (Cable O.D. 0.187"-0.25") & 5505 (Cable O.D. 0.25"-0.312")
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of
Chemicals
- Waste Electrical and Electronic Equipment Directive
- UL / CUL Listed
- UL Registered
- EAC
- CE
- German Lloyd
Sealcon 3/8" NPT Nylon / Plastic cord grips, strain relief fittings, or Cable Glands are used in many different industries to assist customers when connecting cable or wire to various applications. This fitting can provide a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. The ACME thread on the dome top is self-locking, so the ED09NA-GY cord grip provides a large amount of Pull-out resistance by applying a concentric force on all points of the cable. The standard and reduced inserts can be swapped out to change the cable opening size, increasing modularity. This cable gland is ideal for applications where the available space is at a premium.
Note: Contact us about purchasing individual standard or reduced inserts
Sealcon ED09NA-GY
|
|
