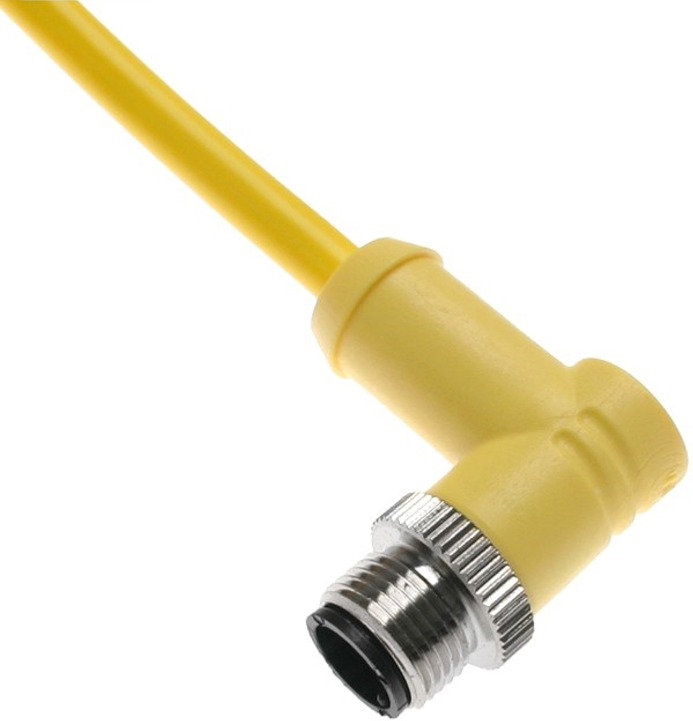

The Mencom MDCP-8MP-10M-R Micro DC (M12) male right angle cordset features an 8 pin insert, 24 gauge wire and 10 meters of cable. The body is yellow PUR with gold plated copper alloy contacts. The cable is oil resistant and rated at 60V and 80 C. Rated IP 69. Operating temperature -40 C to 80 C (-40 F to 176 F). Mencom MDC cordsets use an M12 coupling nut and a single keyway. They provide plug and play operation for a number of applications.
Pin #1 - White
Pin #2 - Brown
Pin #3 - Green
Pin #4 - Yellow
Pin #5 - Gray
Pin #6 - Pink
Pin #7 - Blue
Pin #8 - Red
Specifications
- Body- Yellow PUR
- Insulator- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 24/8 AWM Yellow PUR Jacket w/ Foil Shield
- Shielding- Yes
- Rated Voltage- 60 V
- Rated Current- 2 A
- Wire Gauge- 24
- Pin Count- 8
- Cable Length- 10 meters (32.8 ft)
- Cable O.D.- 0.24
- Ingress Protection- IP 69

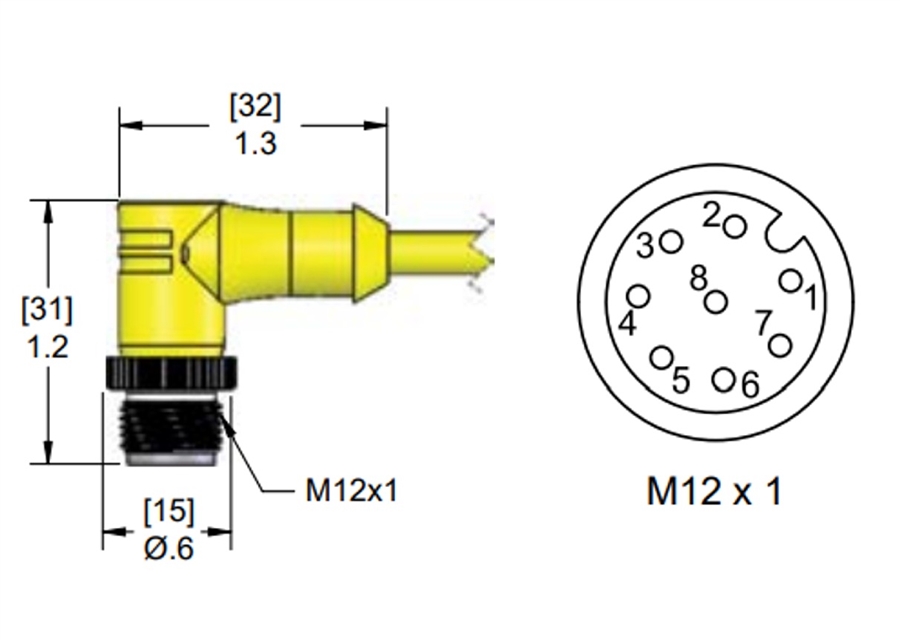

- Orientation Head- Male Right Angle
- Coupling Thread- Male
- Mating Thread / Type Head- M12
- Nut- No
- Approvals- UL & CUL Listed
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
