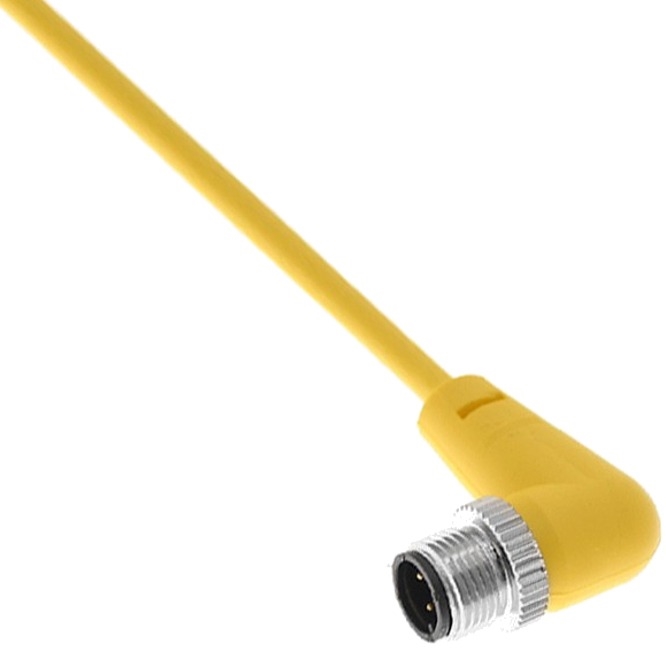

Mencom M12 Cordset, 5 Pole, Male Right Angle, 4 M

The Mencom MDC-5MP-4M-R Micro DC (M12) male right angle cordset features a 5 pin insert, 22 gauge wire and 4 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut with a single keyway, and provide plug and play solutions for various applications. Note: The ground pin is no longer a part of the 5 pin male M12 inserts

Specifications

• Body- Yellow PVC
• Insert- Polyamide
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Cable- 22/5 AWM Yellow PVC Jacket
• Rated Voltage- 300 V
• Rated Current- 4 Amps
• Wire Gauge- 22
• Pin Count- 5
• Cable Length- 4 meters (13.12 ft)

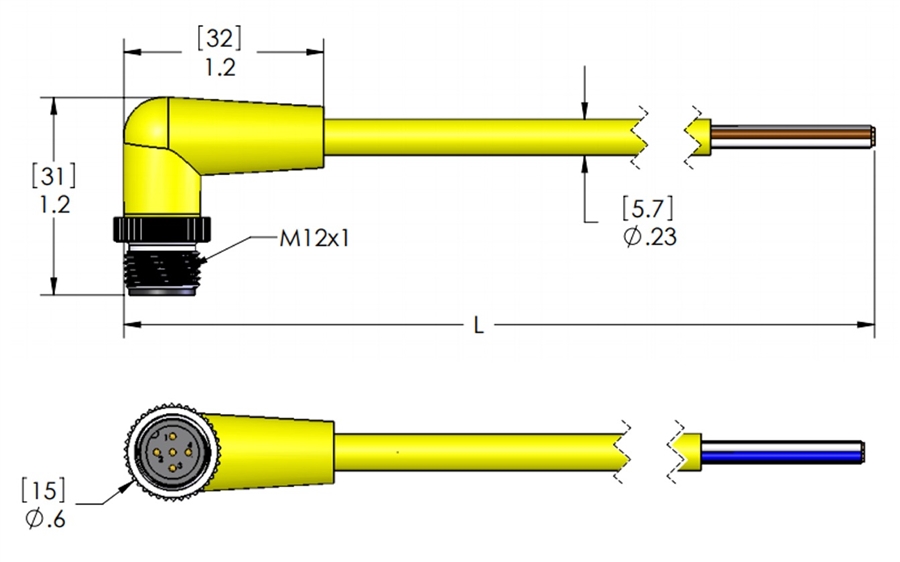

• Cable O.D.- 0.22
• Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
• Orientation Head- Male Right Angle
• Coupling Thread- Male
• Mating Thread / Type Head- M12
• Nut- No
• Approvals- UL & CUL Listed
