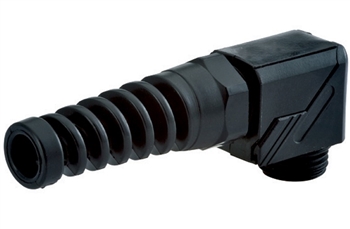

Sealcon EF09NA-BK high quality black nylon snap elbow cord grip is designed for the toughest applications. Also known as Hummel 1.314.3801.70. Sold Individually.
Locking nut & O-Ring sold separately
Specifications
- Thread Size: 3/8" NPT
- Cable O.D. Range: .16" - .31" (4 - 8 mm)
- Through Hole Diameter: .68" (17.2 mm)
- Body Length: 3.35" (85 mm)
- Height: .91" (23 mm)
- Thread Length: .59" (15 mm)
- Wrench Flat Dome: .75" (19 mm)
- Wrench Flat Body: .75" (19 mm)
Features
- Nylon 6/6 Material with Buna-N Seal
- Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
- 150 psig (10 bar) Pressure Rating
- Flame Protected to UL 94
- Halogen and Phosphorous Free
- Resists salt water, acids, alkalis', gasoline & oils.
- Durable Rugged Construction
- RoHS & Deca BDE, CSA approval
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of
Chemicals
- Waste Electrical and Electronic Equipment Directive
- UL / CUL Listed
- UL Registered
- EAC
- CE
- German Lloyd
Sealcon 3/8" NPT Nylon / Plastic Cord Grips, also called Cable Glands or Strain Relief Fittings, are used in a number of industries to help customers when connecting cable or wire to their applications. This cable gland can provide a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. The ACME thread on the flex top is self-locking, so the EF09NA-BK strain relief fitting provides a substantial amount of Pull-out resistance by applying an even force on all points of the cable. To further increase adaptability, the cable opening size can be changed by switching out the standard and reduced inserts. Using a flex nut also prevents the cable from kinking and chafing. Applications that have limited space receive the most benefit from this cord grip.
Note: Contact us about purchasing individual standard or reduced inserts
|
|
|
