The Mencom MDCP-4MP-10M Micro DC (M12) male straight cordset features a 4 pin insert, 22 gauge wire and 10 meters of cable. The body is yellow PUR with gold plated copper alloy contacts. The cable is oil resistant and rated at 300V and 80 C. Rated IP 69. Operating temperature -40 C to 80 C (-40 F to 176 F). Mencom MDC cordsets use an M12 coupling nut and provide plug and play solutions for various applications.

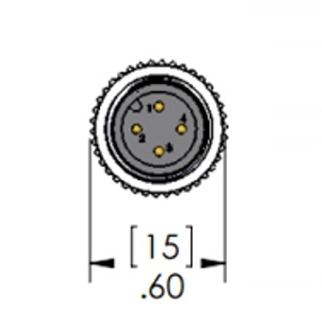

Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Specifications
- Body- Yellow PUR
- Insulator- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 22/4 AWM Yellow PUR Jacket
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22
- Pin Count- 4
- Cable Length- 10 meters (32.8 ft)
- Cable O.D.- 0.2
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Male Straight
- Coupling Thread- Male
- Mating Thread / Type Head- M12
- Nut- No
- Approvals- UL & CUL Listed
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
