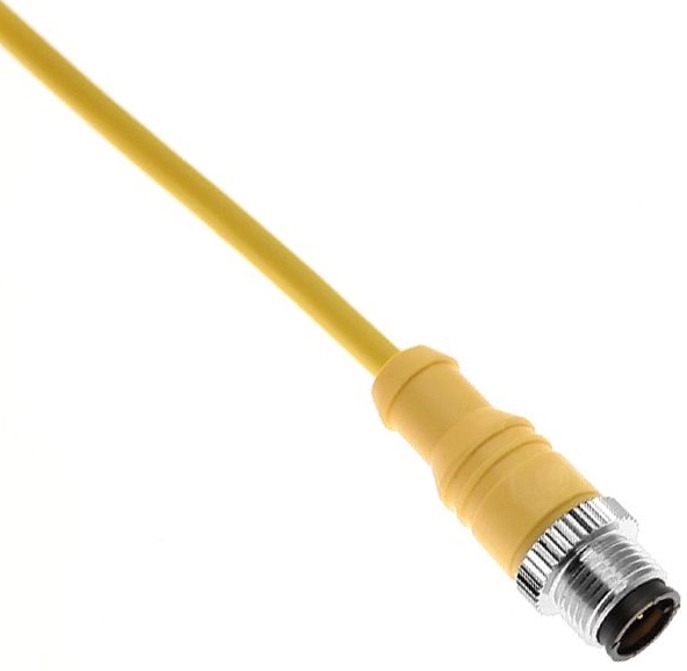

Mencom M12 Cordset, 4 Pole, Male Straight, 10 M, Shielded

The Mencom MDCM-4MP-10M Micro DC (M12) shielded male straight cordset features a 4 pin insert, 22 AWG wire and 10 meters of cable. The body is yellow PVC with gold plated copper alloy contacts and a foil mylar shield with 24 AWG drain wire. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut and provide plug and play solutions for various applications.

Specifications

• Body- Yellow PVC
• Insulator- Polyamide
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Cable- 22/4 AWM Yellow PVC Jacket w/ Foil Shield & Drain Wire
• Rated Voltage- 300 V
• Rated Current- 4 Amps
• Wire Gauge- 22 AWG

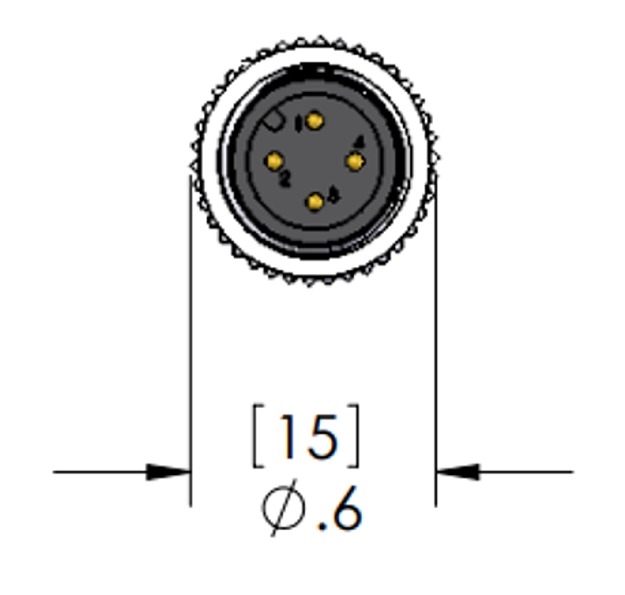

• Pin Count- 4
• Cable Length- 10 meters (32.8 ft)

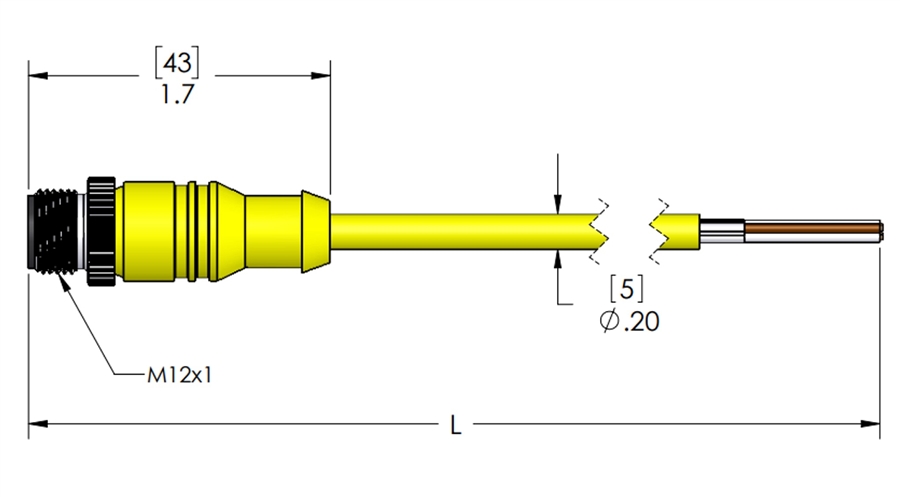

• Cable O.D.- 0.2
• Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
• Orientation Head- Male Straight
• Coupling Thread- Male
• Mating Thread / Type Head- M12
• Nut- No
