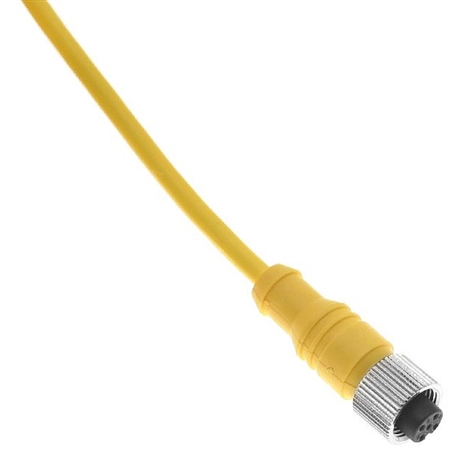

The Mencom MDCM-4FP-1M Micro DC (M12) shielded female straight cordset features a 4 pin insert, 22 AWG wire and 1 meter of cable. The body is yellow PVC with gold plated copper alloy contacts and a foil mylar shield with 24 AWG drain wire. The cable is oil resistant and rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut and provide plug and play solutions for various applications.
Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Specifications
- Body- Yellow PVC
- Insert- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 22/4 AWM Yellow PVC Jacket w/ Foil Shield & Drain Wire
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22 AWG
- Pin Count- 4
- Cable Length- 1 meter (3.28 ft)
- Cable O.D.- 0.2
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Female Straight
- Coupling Thread- Female
- Mating Thread / Type Head- M12
- Nut- No
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
