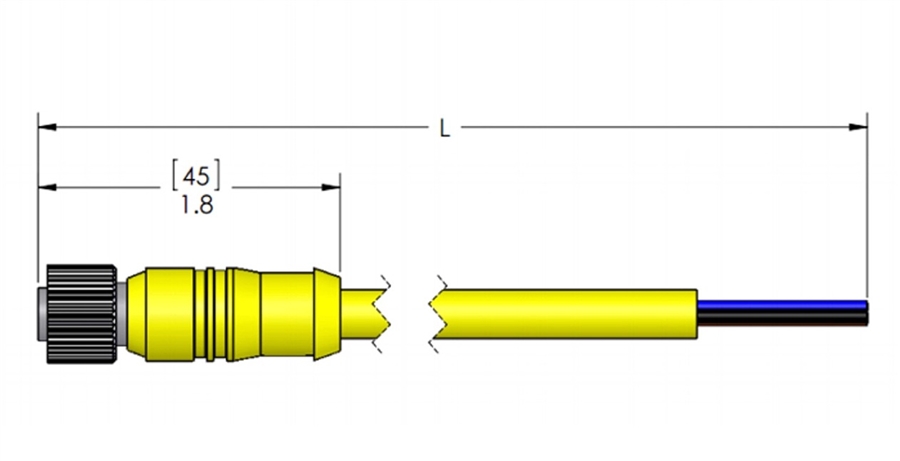

The Mencom MDC-3FPX-2M Micro DC (M12) female straight cordset features a 3 pin insert, 18 gauge wire and 2 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets are known by their M12 coupling nut and single keyway. They provide plug and play solutions for various applications.
Pin #1 - Brown
Pin #2 - No Wire
Pin #3 - Blue
Pin #4 - Black
Pin #5 - No Wire
Specifications
- Body- Yellow PVC
- Insert- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 18/3 AWM Yellow PVC Jacket
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 18
- Pin Count- 3
- Cable Length- 2 meters (6.56 ft)
- Cable O.D.- 0.29
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Female Straight
- Coupling Thread- Female
- Mating Thread / Type Head- M12
- Nut- No
- Approvals- UL & CUL Listed
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
