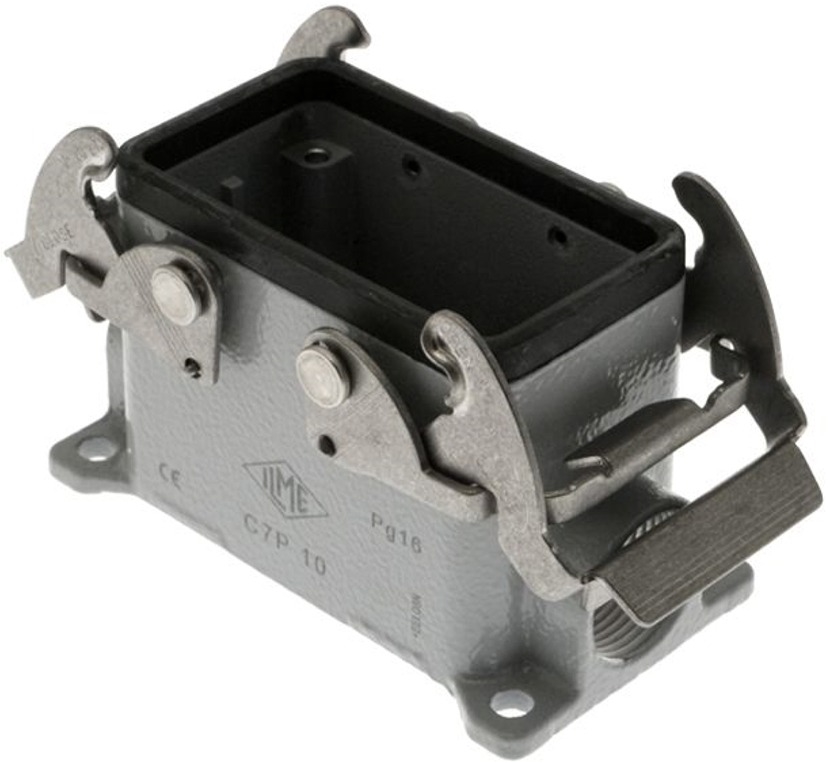

The ILME C7P-10 V-Type surface mount standard housing is size 57.27 and features a double lever with a PG 16 cable entry. The body is die cast aluminum with stainless steel levers. Insert center distance: 57 x 27 mm. Rated IP 66/67 when attached and locked down. The clamping force supplied by the C7P-10 is constant due to the specially designed locking system that creates a vertical downward force.
Specifications
- Body- Die Cast Aluminum
- Gasket- Thermoplastic Elastomer
- Lever- Stainless Steel
- ILME Series- C7
- Insert Dimension- 57.27
- Enclosure Dimension- 57.27
- Housing Type- Metallic, Standard
- Enclosure Type- 2 Levers
- Mounting Style- Surface Mount
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Gasket- Yes
- Cable Entry- Side
- Hood Thread- PG 16
- Ingress Protection- IP 66 / 67
- Insert Center Distance- 57 x 27 mm (2.24" x 1.06")
- Approvals- UL, CUL, RoHS
Compatible Inserts
|
Series
|
Part Number
|
|
CDD
|
CDDF-42
CDDM-42
|
|
CQE
|
CQEF-18
CQEM-18
|
|
CSH, CDSH
|
CSHF-10, CDSHM-18, , CMSHF-03, CMSHM-03
CSHM-10, CDSHF-18
|
|
CCE
|
CCEF-10
CCEM-10
|
|
CNE, CSE
|
CNEF-10T, CNEF-10TX, CNEM-10T, CNEM-10TX
CSEF-10, CSEM-10
|
|
CSS
|
CSSF-10
CSSM-10
|
|
CT, CTSE
|
CTF-10L, CTF-10R, CTM-10L, CTM-10R
CTSEM-10L
|
|
CMSE
|
CMSEF-03, CMSEM-03
|
|
CMCE
|
CMCEF-03
CMCEM-03
|
|
CXF
|
CXF-8/24
CXM-8/24
|
C7P-10 57.27 PG 16 2 Lever ILME V-Type Surface Mount Base
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
