ILME CDD Series Insert, Female, Size 57.27, 42 Pin, 10A


CDDF-42

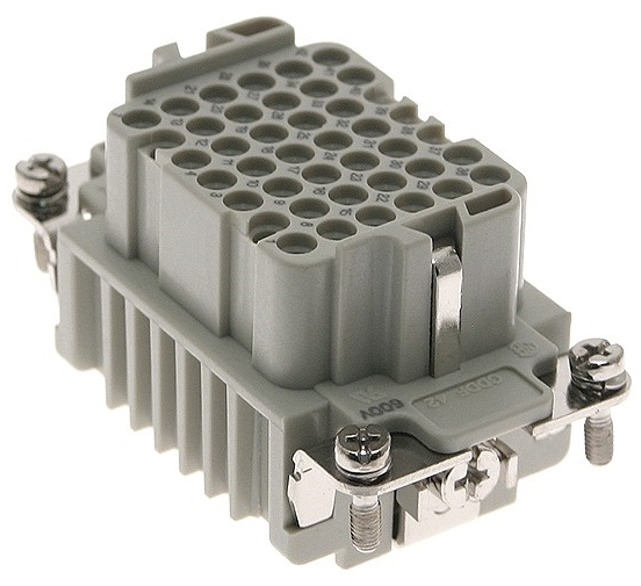

ILME CDDF-42 CDD Series Insert, Female, Size 57.27, 42 Pin, 10A

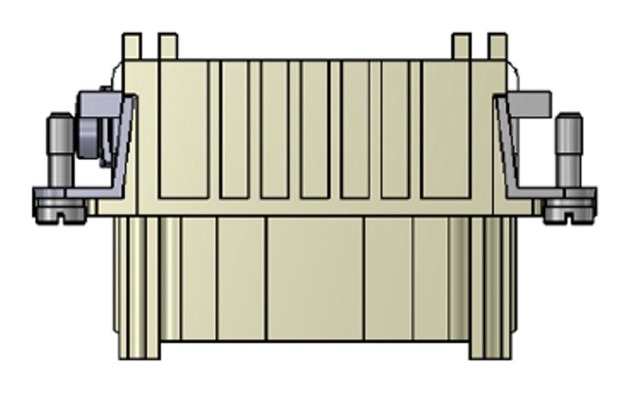

Alternative Views:


Price: $12.29
MFG P/N: CDDF-42
MFG: ILME
Weight (lbs): 0.11

Quantity in Stock :60


Availability:
In Stock
Product Code: CDDF-42
Qty:


Description


The ILME CDDF-42 CDD series standard female insert fits size 57.27 enclosures and is 42 pin + ground with a voltage rating of 600V and a rated current of 10A. The thermoplastic housing is self-extinguishing with a rating of UL 94 V0. Rated IP 20. Termination: crimp pin (sold separately). The CDDF-42 is designed for high intensity applications and is useful when a fast, easy disconnect is needed.

Specifications

  • Housing- Thermoplastic
  • Gender- Female
  • Pin Count- 42 + Ground
  • Rated Current- 10 Amps
  • Rated Voltage- 600 V
  • ILME Series- CDD
  • Housing Type- Standard
  • Operating Temperature- -40 C to 125 C (-40 F to 257 F)
  • Insert Dimension- 57.27
  • Enclosure Dimension- 57.27
  • Termination- Crimp Pin
  • Upper AWG- 14
  • Lower AWG- 26
  • Insulation Resistance- >= 10GOhm
  • Mechanical Life- >= 500 Cycles
  • Contact Resistance- <= 3mOhm
  • Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
  • Approvals- UL, CSA, CCC, GL, GOST

Compatible Enclosures

Series Part Number
CH CHI-10C, CHI-10CS, CHI-10L, CHI-10LS, CHI-10
CH, CA, MH CHP-10, CHP-10.2, CHP-10CS, CHP-10CS2, CHP-10L
CHP-10L2, CHP-10LS, CHP-10LS2, CAP-10LS29, CAP-10LS229
CAP-10.21, CAP-10.221, CAP-10.229, CAP-10.29, CAP-10CS2
CAP-10L2, CAP-10L229, CAP-10L29, CAP-10LS, CAP-10LS2
MHP-10L20, CAPW-10.221, CAP-10L
CH, MH, MA CHO-10, CHO-10L, CHO-10X, MHO-10L20, MAV-10L32, CHV-10X
CHV-10, CHV-10G, CHV-10L, MHV-10L25, MHO-10.20, CHV-10LG
MHO-10L25, MHV-10L20, MHV-10.20, MHO-10.25, MHV-10.25, MAV-10.32
MAO-10.32
CA, MH CAO-10.21, CAO-10.29, CAO-10L21, CAO-10L29, CAO-10X
CAO-10X29, CAV-10L21, CAV-10L29, MAV-10.40, CAV-10LG29
CAV-10.21, CAV-10.29, CAV-10G, CAV-10G29, CAV-10X29
CAV-10.213, CAV-10X, CAV-10LG21
CH, CA CHC-10, CHC-10G, CHC-10L, CHC-10LG
CAF-10, CHC-10C
CH CHIW-10, CHCW-10, CAOW-10L21, CHCW-10LG, CAOW-10.21
CH, CA CHIS-10, CHI-10YC, CHCS-10
TC, TM TCHI-10, TCHC-10, THIH-10
TMAP-10.25, TMAP-10.32, TMAO-10.25, TMAO-10.32
JCVI JCVI-10, JCVI-10L
CG CGI-10



Corresponding Crimp Pins

Wire Gauge Part Number
14 CDFA-2.5, CDFD-2.5
16 CDFA-1.5, CDFD-1.5
18 CDFA-1.0, CDFD-1.0
20 CDFA-0.5, CDFD-0.5
22-26 CDFA-0.3, CDFD-0.3
