The ILME TMAP-06L25 T-Type surface mount insulating housing is size 44.27 and features a single lever with an M25 cable entry. The body is thermoplastic with a thermoplastic lever. Insert center distance: 44 x 27 mm. Rated IP 65 when attached and locked down. The TMAP-06L25 offers a cost effective solution to applications in harsh conditions, as it is resistant to corrosion.
Specifications
- Body- Thermoplastic
- Gasket- Thermoplastic Elastomer
- Lever- Thermoplastic
- ILME Series- TM
- Insert Dimension- 44.27
- Enclosure Dimension- 44.27
- Housing Type- Insulating
- Enclosure Type- 1 Lever
- Mounting Style- Surface Mount
- Temperature Range- -40 C to 90 C (-40 F to 194 F)
- Hood Entry- Side
- Hood Thread- M25
- Gasket- Yes
- Ingress Protection- IP 65 when attached & locked down (Total protection from dust and low pressure water jets from any direction)

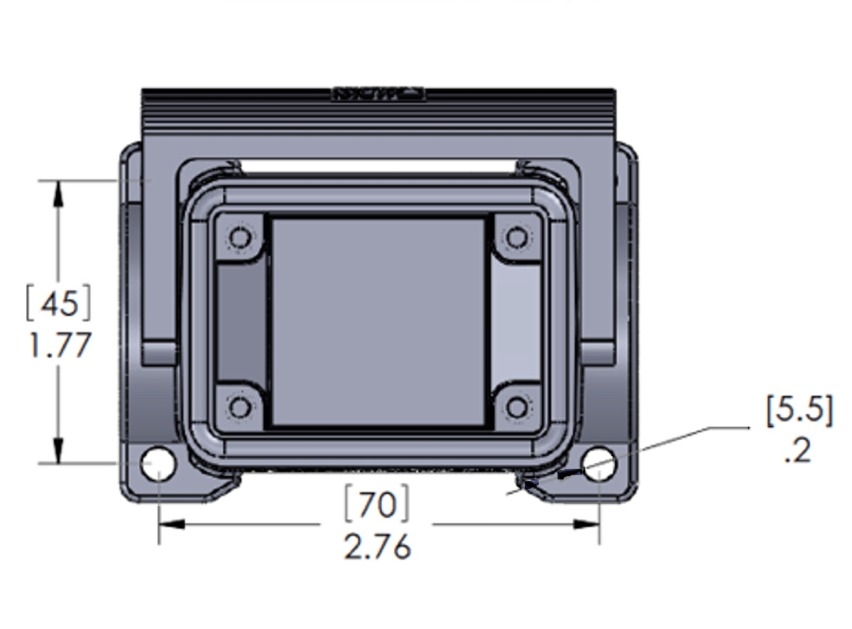

- Insert Center Distance- 44 x 27 mm (1.73" x 1.06")
- Approvals- C UR US, CCC
Compatible Inserts
|
Series
|
Part Number
|
|
CDD
|
CDDF-24
CDDM-24
|
|
CQE,CCE
|
CQEF-10
CQEM-10
CCEM-06
CCEF-06
|
|
CSH, CDSH
|
CSHM-06, CSHF-06
CDSHF-09, CDSHM-09
|
|
CCE
|
CCEF-06, CCEM-06
|
|
CNE, CSE
|
CNEF-06T, CNEF-06TX, CNEM-06T
CNEM-06TX, CSEM-06, CSEF-06
|
|
CSS
|
CSSF-06
CSSM-06
|

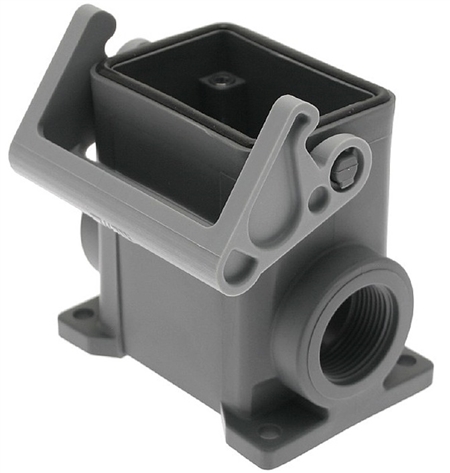

ILME TMAP-06L25 Thermoplastic Surface Mount Base
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
