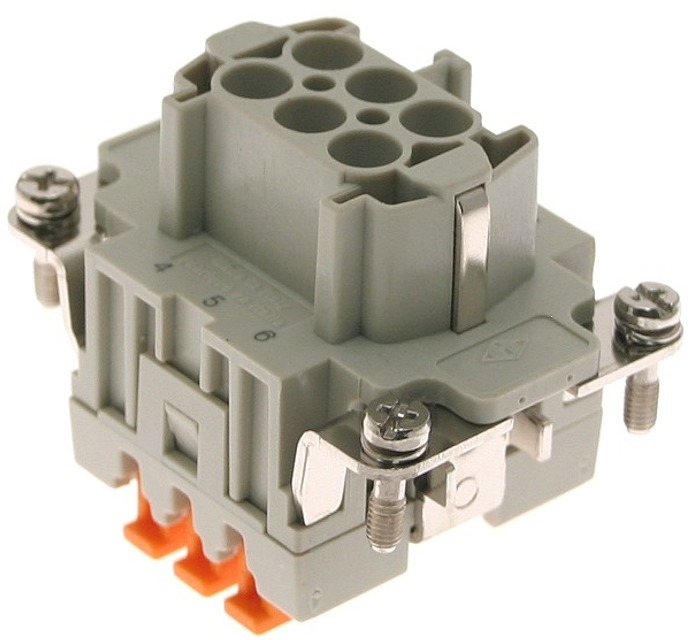

The ILME CSHF-06 CSH series standard female insert fits size 44.27 enclosures and is 6 pin + ground with a voltage rating of 600V and a rated current of 16A. The thermoplastic housing is self-extinguishing and is rated UL 94 V0, with silver plated contacts. Rated IP 20. Termination: spring. The CSHF-06 is resistant to vibration, easier to install and more cost effective due to the spring termination.
Specifications
- Housing- Thermoplastic
- Contacts- Silver Plated
- Gender- Female
- Pin Count- 6 + Ground
- Rated Current- 16 Amps
- Rated Voltage- 600 V
- ILME Series- CSH
- Housing Type- Standard
- Operating Temperature- -40 C to 125 C (-40 F to 257 F)
- Insert Dimension- 44.27
- Enclosure Dimension- 44.27
- Termination- Spring
- Upper AWG- 14
- Lower AWG- 26
- Insulation Resistance- >= 10GOhm
- Mechanical Life- >= 500 Cycles
- Contact Resistance- <= 3mOhm
- Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
- Approvals- UL, CSA, CCC, GOST
Compatible Enclosures
|
Series
|
Part Number
|
|
CH
|
CHI-06L, CHI-06LC, CHI-06LCS, CHI-06LS, CHI-06YC
|
|
CH, CA, MH
|
CHP-06L, CHP-06LS, CHP-06L2, CHP-06LS2, CAP-06LS
CAP-06L, CAP-06L2, CAP-06L229, CAP-06L29, CAP-06LS2, CAP-06LS29, CAP-06LS229
MHP-06L20, CHC-06LG, CHC-06LC
|
|
CH, CA, MH, MA
|
CHO-06L13, CHO-06L16, CHV-06L13, CHV-06L16, CHV-06LG, CHV-06LX16
CAO-06L21, CAO-06L29, CAV-06L21, CAV-06L29, CAV-06LG21, CAV-06LG29
MHO-06L20, MHV-06L20, MAV-06L25, MHV-06L25, MAV-06L32, MHO-06L25
MAO-06L32, CAV-06YX29, CHO-06LX16, MHO-06LX20
|
|
CH, CA
|
CHIW-06L, CHIW-06LS, CAOW-06L21
CAVW-06L21, CAPW-06LS, CAPW-06L29, CAPW-06L229
|
|
CH, CA
|
CHIS-06L, CHCS-06L
|
|
TC, TM
|
TCHI-06L, TCHC-06L,
TMAV-06L32, THIH-06L
TMAP-06L25, TMAP-06L32, TMAO-06L25, TMAO-06L32
|
|
JCVI
|
JCVI-06L
|
|
CG
|
CGI-06, CGO-06.21
|
ILME 44.27 6 Pin Female Insert CSHF-06
|
|
|
 |
|
 |
|
