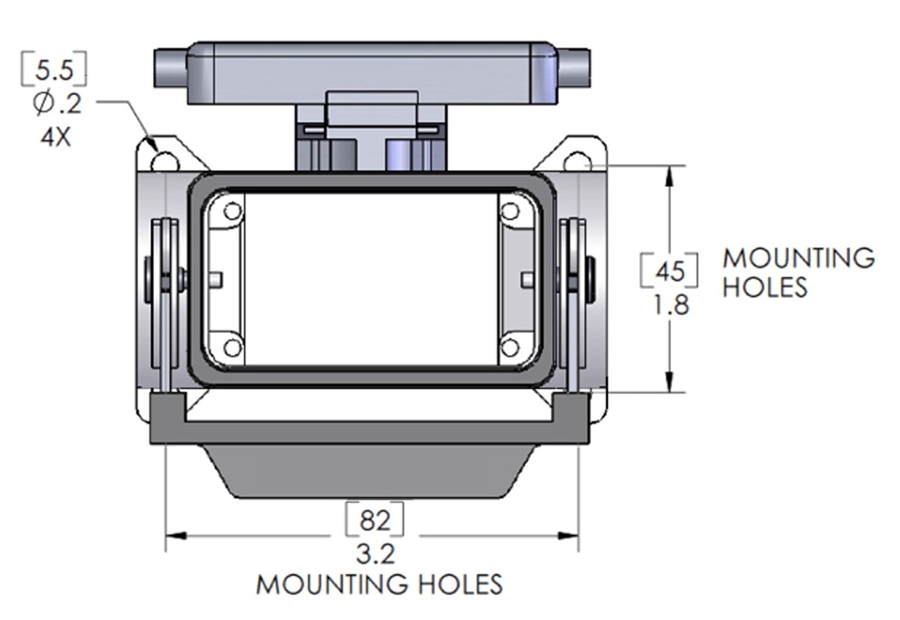

The ILME CAP-10LS C-Type surface mount standard housing is size 57.27 and features a single lever with cover and a PG 21 cable entry. The body is epoxy coated die cast aluminum with a polyamide handle and stainless steel lever. Insert center distance: 57 x 27 mm. Rated IP 65 when attached and locked down. The clamping force supplied by the CAP-10LS is constant due to the stainless steel locking system.

Specifications

Body- Epoxy Coated Die Cast Aluminum
Gasket- Thermoplastic Elastomer
Handle- Polyamide
Lever- Stainless Steel
ILME Series- CA
Insert Dimension- 57.27
Enclosure Dimension- 57.27
Housing Type- Metallic, Standard
Enclosure Type- 1 Lever
Mounting Style- Surface Mount
Temperature Range- -40 C to 125 C (-40 F to 257 F)
Gasket- Yes
Hood Entry- Side
Hood Thread- PG 21
Ingress Protection- IP 65 Total protection from dust and low pressure water jets from any direction)
Insert Center Distance- 57 x 27 mm (2.24" x 1.06")
Approvals- C UR US, CCC, GL

Compatible Inserts

Series	Part Number
CDD	CDDF-42 CDDM-42
CQE	CQEF-18 CQEM-18
CSH, CDSH	CSHF-10, CDSHM-18, CMSHF-03, CMSHM-03 CSHM-10, CDSHF-18
CCE	CCEF-10 CCEM-10
CNE, CSE	CNEF-10T, CNEF-10TX, CNEM-10T, CNEM-10TX CSEF-10, CSEM-10
CSS	CSSF-10 CSSM-10
CMSE	CMSEF-03, CMSEM-03
CMCE	CMCEF-03 CMCEM-03
CXF	CXF-8/24 CXM-8/24
