ILME C-Type Metallic Hood, Size 44.27, 3/4" NPT, 2 Pegs


ILME CAVT-06.5L

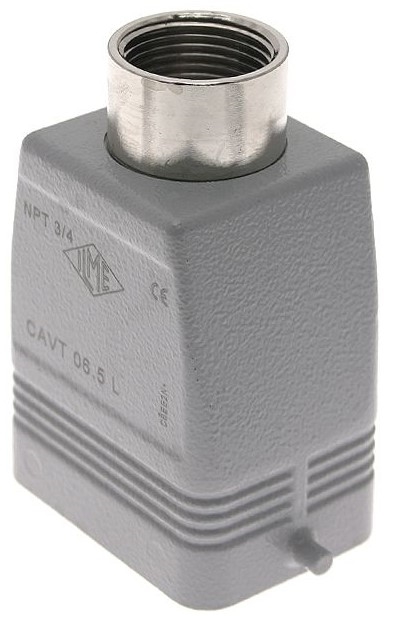

ILME CAVT-06.5L C-Type Metallic Hood, Size 44.27, 3/4" NPT, 2 Pegs

Alternative Views:


Price: $34.48
MFG P/N: CAVT-06.5L
MFG: ILME
Weight (lbs): 0.4



Availability:
In Stock
Product Code: CAVT-06.5L
Qty:


Description


The ILME CAVT-06.5L C-Type standard metallic hood is size 44.27 and features 2 pegs with a 3/4" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 44 x 27 mm (1.73" x 1.06"). Rated IP 66. The CAVT-06.5L is durable and has a life expectancy over 500 cycles.

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • ILME Series- CA
  • Insert Dimension- 44.27
  • Enclosure Dimension- 44.27
  • Housing Type- Metallic, Standard
  • Enclosure Type- Hoods for Single Lever
  • Mounting Style- Cable
  • Hood Entry- Top
  • Hood Thread- 3/4" NPT
  • Pegs- 2 Pegs
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Approvals- UL, CUL

Compatible Inserts

Series Part Number
CDD CDDF-24
CDDM-24
CQE,CCE CQEF-10
CQEM-10
CCEM-06
CCEF-06
CSH, CDSH CSHM-06, CSHF-06
CDSHF-09, CDSHM-09
CNE,CSE CNEF-06T, CNEF-06TX, CNEM-06T
CNEM-06TX, CSEM-06, CSEF-06
CSS CSSF-06
CSSM-06

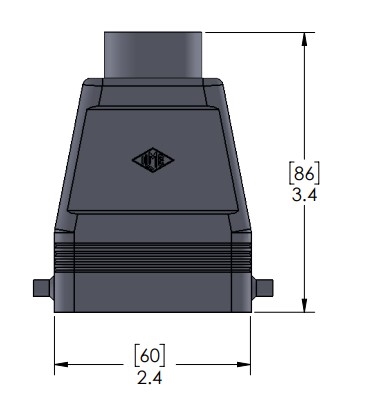

CAVT-06.5L Top Entry 3/4" NPT Standard Metallic Hood
