ILME CHVT-06.4L
ILME CHVT-06.4L C-Type Metallic Hood, Size 44.27, 1/2" NPT, 2 Pegs

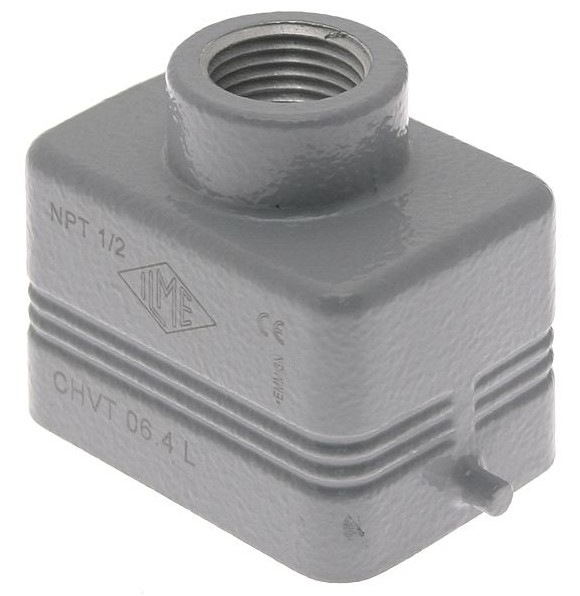

Larger Photo




ILME CHVT-06.4L C-Type Metallic Hood, Size 44.27, 1/2" NPT, 2 Pegs

Price: $12.26
Note: Please call or email sales@majorelectronix.com for alternatives
MFG P/N: CHVT-06.4L
MFG: ILME
Weight (lbs): 0.2

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: CHVT-06.4L
Qty:

View quantity discounts
Description


The ILME CHVT-06.4L C-Type standard metallic hood is size 44.27 and features 2 pegs with a 1/2" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 44 x 27 mm (1.73" x 1.06"). Rated IP 66. The CHVT-06.4L is durable and has a life expectancy over 500 cycles.

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • ILME Series- CH
  • Insert Dimension- 44.27
  • Enclosure Dimension- 44.27
  • Housing Type- Metallic, Standard
  • Enclosure Type- Hoods for Single Lever
  • Mounting Style- Cable
  • Hood Entry- Top
  • Hood Thread- 1/2" NPT
  • Pegs- 2 Pegs
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Approvals- UL, CUL


Compatible Inserts

Series Part Number
CDD CDDF-24
CDDM-24
CQE,CCE CQEF-10
CQEM-10
CCEM-06
CCEF-06
CSH, CDSH CSHM-06, CSHF-06
CDSHF-09, CDSHM-09
CNE,CSE CNEF-06T, CNEF-06TX, CNEM-06T
CNEM-06TX, CSEM-06, CSEF-06
CSS CSSF-06
CSSM-06

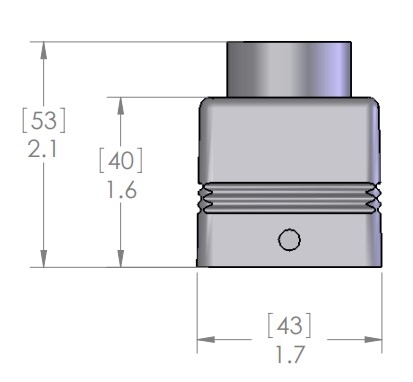

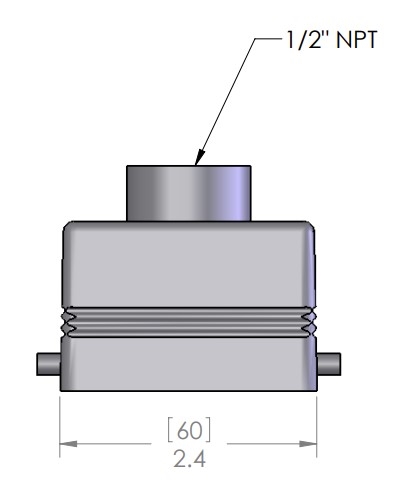

ILME CHVT-06.4L 1/2" NPT Rectangular Hood
