ILME CSAHM-10

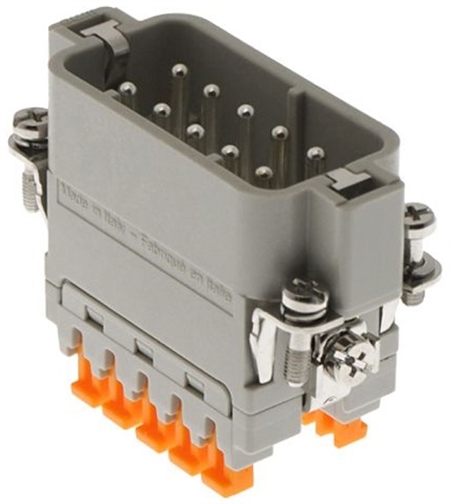

ILME CSAHM-10 CSH Series Insert, Male, Size 49.16, 10 Pin, 16A
Larger Photo




ILME CSH Series Insert, Male, Size 49.16, 10 Pin, 16A
Have a product question?Ask us

Price: $16.04
Note: Delivery: 2-5 Business Days
MFG P/N: CSAHM-10
MFG: ILME
Weight (lbs): 0.15

Quantity in Stock :23


Availability:
In Stock
Product Code: CSAHM-10
Qty:

View quantity discounts
Description


The ILME CSAHM-10 CSH series standard male insert fits size 49.16 enclosures and is 10 pin + ground with a voltage rating of 600V and a rated current of 16A. The housing is glass reinforced thermoplastic with silver plated contacts. The thermoplastic housing is self-extinguishing and is rated UL 94 V0. Rated IP 20. Termination: Squich spring. The Squich spring allows for wires to be inserted and attached without needing tools, speeding up installation.

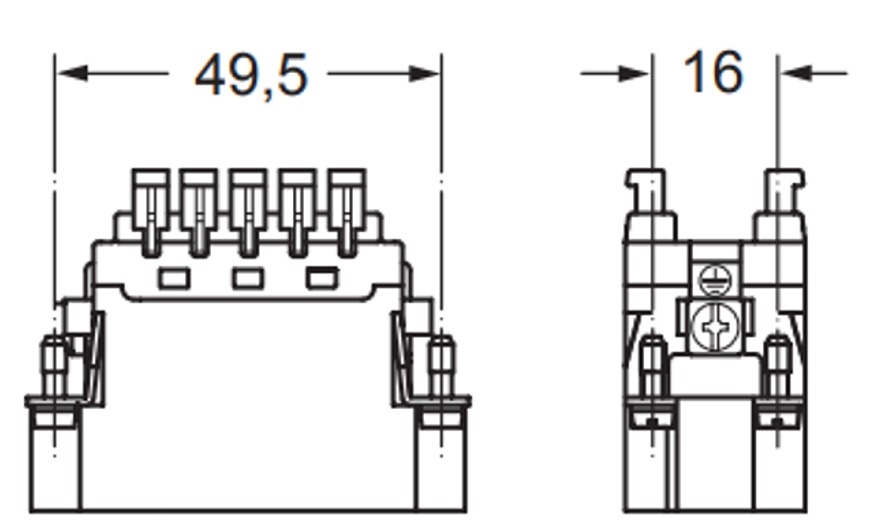

Specifications

  • Housing- Glass Reinforced Thermoplastic
  • Contacts- Silver Plated
  • Gender- Male
  • Pin Count- 10 + Ground
  • Rated Current- 16 Amps
  • Rated Voltage- 600 V
  • ILME Series- CSH
  • Housing Type- Standard
  • Operating Temperature- -40 C to 125 C (-40 F to 257 F)
  • Insert Dimension- 49.16
  • Enclosure Dimension- 49.16
  • Termination- Squich Spring
  • Upper AWG- 14
  • Lower AWG- 26
  • Insulation Resistance- >= 10GOhm
  • Mechanical Life- >= 500 Cycles
  • Contact Resistance- <= 3mOhm
  • Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
  • Approvals- UL, CSA, CQC, GL, EAC

Compatible Enclosures

Series Part Number
CZ-STANDARD CZI-15L, CZI-15LS, CZP-15L, CZP-15L2, CZP-15L21
CZP-15LS221, CZ7I-15L
CZ CZO-15L, CZAO-15L16, CZAO-15L21
CZV-15L, CZAV-15L16, CZAV-15L21
CZC-15L, CZC-15LG
CZ, MZ CZV-15L, CZV-15LG, MZV-15L20
CZ-AGGRESSIVE ENVIRONMENT CZPW-15L2
CZ-EMC CZOS-15L, CZAOS-15L21, CZAVS-15L21
