ILME C-Type Metallic Hood, Size 49.16, PG 16, 2 Pegs, Metal Side Entry


CZAO-15L16
ILME CZAO-15L16 C-Type Metallic Hood, Size 49.16, PG 16, 2 Pegs, Metal Side Entry

Alternative Views:


Price: $23.65
MFG P/N: CZAO-15L16
MFG: ILME
Weight (lbs): 0.3



Availability:
In Stock
Product Code: CZAO-15L16
Qty:


Description

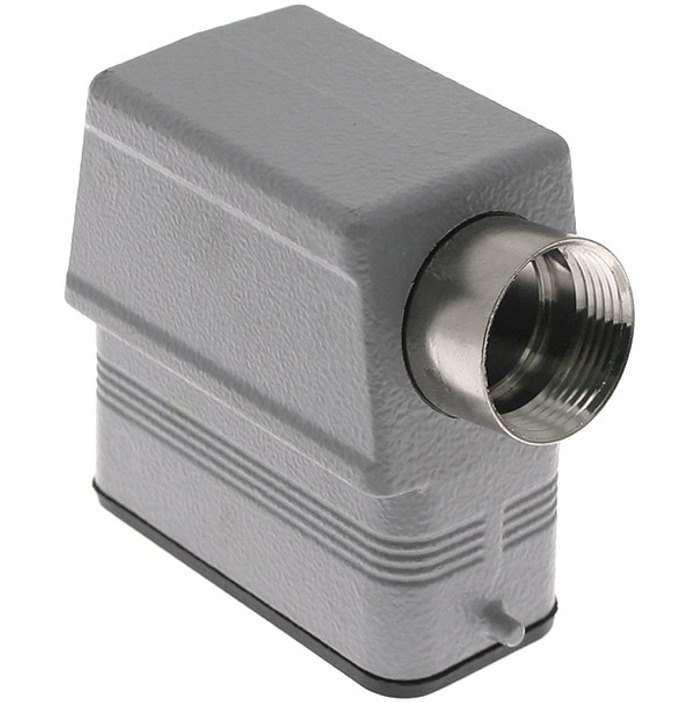

The ILME CZAO-15L16 C-Type standard metallic hood is size 49.16 and features 2 pegs with a PG 16 cable entry. The body is die cast aluminum with cable entry through the side. Rated IP 66 when attached and locked down. The CZAO-15L16 is durable and has a life expectancy over 500 cycles.

Specifications

  • Body- Die Cast Aluminum
  • ILME Series- CZ
  • Insert Dimension- 49.16
  • Enclosure Dimension- 49.16
  • Housing Type- Metallic, Standard
  • Enclosure Type- Hoods for Single Lever
  • Mounting Style- Cable
  • Hood Entry- Side
  • Hood Thread- PG 16
  • Pegs- 2 Pegs
  • Gasket- Yes
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CD CDF-15
CDM-15
CDA CDAF-10, CDAF-10X
CDAM-10, CDAM-10X
CDC CDCF-10
CDCM-10

ILME CZAO-15L16 Standard PG 16 49.16 Hood with 2 Pegs
