ILME CMSH Series Insert, Female, Size 104.27, 10 Pin, 16A

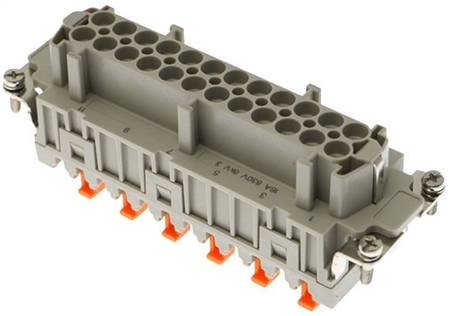

The ILME CMSHF-10 CMSH series standard female insert fits size 104.27 enclosures and is 10 pin + ground with 2 auxiliary pins. It has a voltage rating of 600V and a rated current of 16A. The thermoplastic housing has silver plated contacts and is self-extinguishing, rated UL 94 V0. Rated IP 20. Termination: Squich spring. The CMSHF-10 is intended for use with high voltage applications.

Specifications

• Housing- Thermoplastic
• Gender- Female
• Pin Count- 10 + Ground, 2 Auxiliary
• Rated Current- 16 Amps
• Rated Voltage- 600 V
• ILME Series- CMSH
• Insert Type- Standard
• Operating Temperature- -40 C to 125 C (-40 F to 257 F)
• Insert Dimension- 104.27
• Enclosure Dimension- 104.27
• Termination- Squich spring
• Upper AWG- 14
• Lower AWG- 26
• Insulation Resistance- >= 10 GOhm
• Mechanical Life- >= 500 Cycles
• Contact Resistance- <= 3 mOhm
• Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger
• Approvals- UL, CUL, GL, EAC, CQC
