ILME MHV-24L25

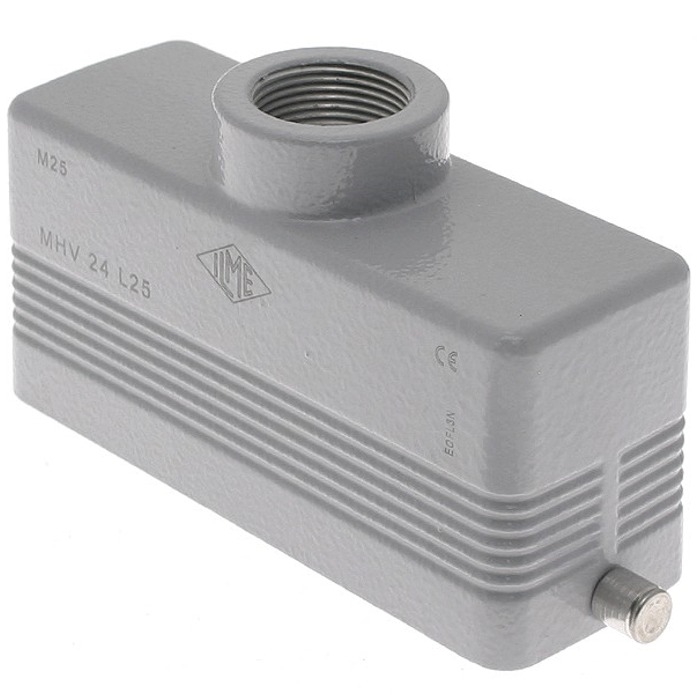

ILME MHV-24L25 C-Type Metallic Hood, Size 104.27, M25, 2 Pegs
Larger Photo




ILME C-Type Metallic Hood, Size 104.27, M25, 2 Pegs

Price: $21.97
Note: Delivery: 2-5 Business Days
MFG P/N: MHV-24L25
MFG: ILME
Weight (lbs): 0.4

Quantity in Stock :17


Availability:
In Stock
Product Code: MHV-24L25
Qty:

View quantity discounts
Description


The ILME MHV-24L25 C-Type standard metallic hood is size 104.27 and features 2 pegs with an M25 cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 104 x 27mm. Rated IP 66. The MHV-24L25 has a life expectancy over 500 cycles and the powder coat finish helps resist corrosion.

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • ILME Series- MH
  • Insert Dimension- 104.27
  • Enclosure Dimension- 104.27
  • Housing Type- Metallic, Standard
  • Enclosure Type- Hoods for Single Lever
  • Mounting Style- Cable
  • Hood Entry- Top
  • Hood Thread- M25
  • Pegs- 2 Pegs
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Insert Center Distance- 104 x 27 mm (4.09" x 1.06")
  • Approvals- C UR US, CQC, GL, CE, EAC

Compatible Inserts

Series Part Number
CD CDF-64, CDM-64
CDD CDDF-108, CDDM-108
CQE CQEF-46, CQEM-46
CSH, CDSH CSHF-24, CSHM-24
CDSHM-42, CDSHF-42
CCE CCEF-24, CCEM-24
CNE, CSE CNEF-24T, CNEF-24TX, CNEM-24T, CNEM-24TX
CSEF-24, CSEM-24
CSS CSSF-24, CSSM-24

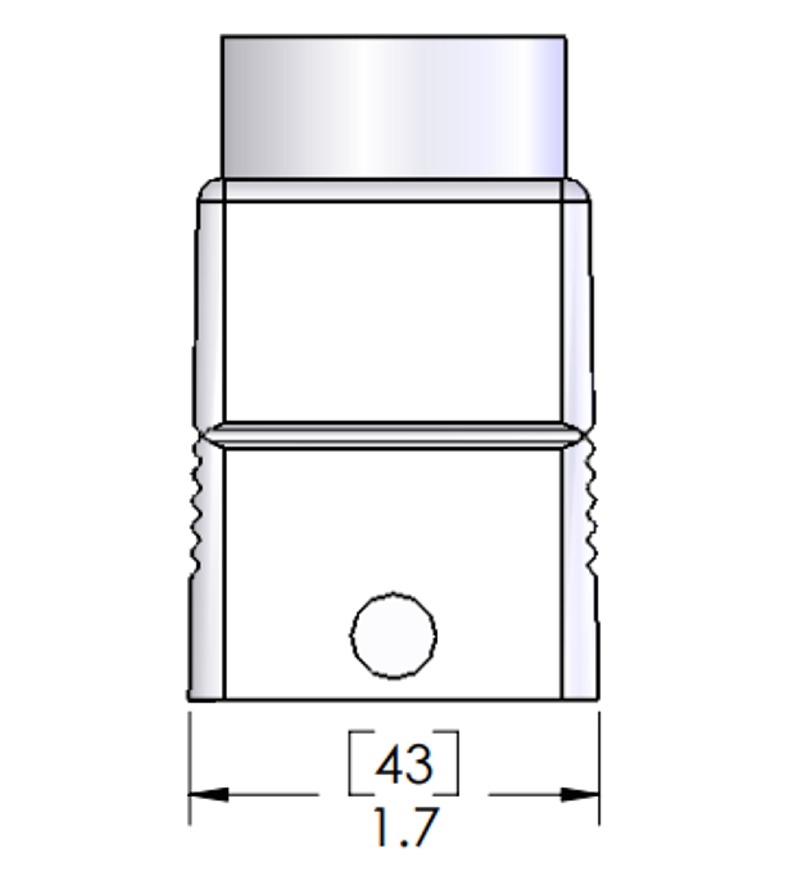

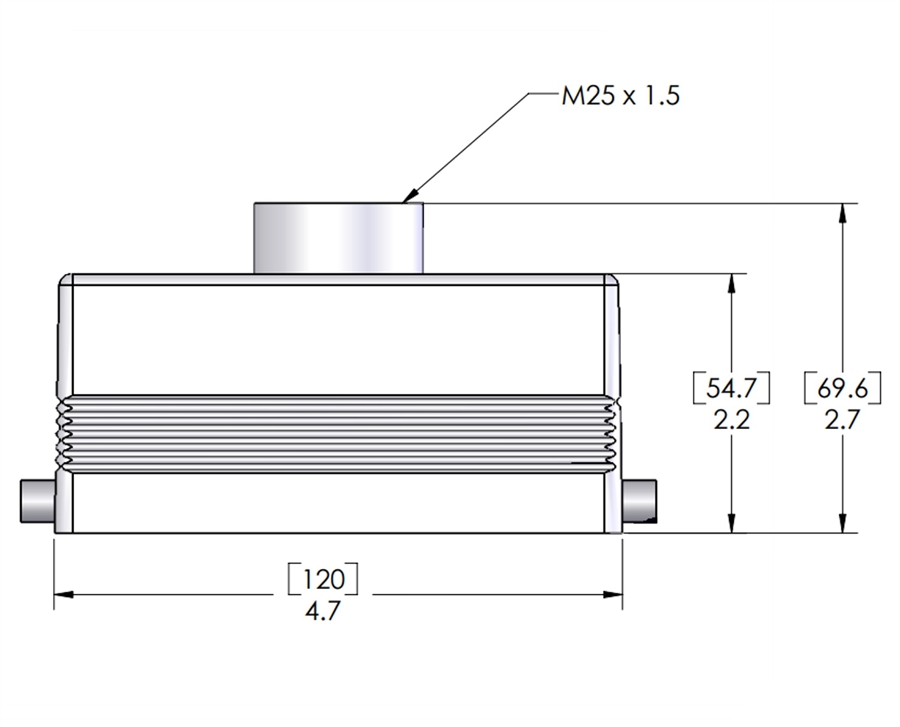

ILME MHV-24L25 104.27 Hood
