The Red Lion Sixnet

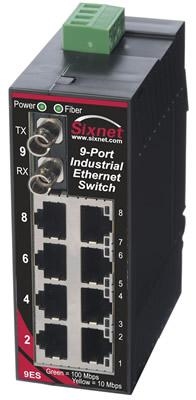

® Series SLX-9ES-3ST is an unmanaged nine port Industrial Ethernet Switch. This SlimLine Plus SLX series switch is housed in an aluminum DIN rail enclosure, and features 20 km singlemode fiber optic cable with an ST style fiber connector. It has eight 10/100BaseTX RJ45 ports and one 100BaseFX fiber port. It is made to operate at an optimum speed for real-time performance, as well as to meet the needs of industrial networks. The plug and play capability allows the switch to be fully functional without requiring a user set-up beforehand. The compact SlimLine housing conserves more room on the DIN-Rail.
PRODUCT FEATURES
- Compact Housing
- Unmanaged Plug & Play Capability
- Full IEEE 802.3 Compliance
- 9 Ports: Eight RJ45 Ports, One Fiber Optic Port
- Extended Environmental Specifications
- -40 C to 85 C Operating Temperature
- >1M+ Hours MTBF
- Supports Full/Half Duplex Operation
- LED Link/Activity Status Indication
- Auto Senses Speed and Flow
- MDIX Auto Sensing Cable
- Redundant Power Inputs (10-30 VDC)
- Power Inputs with Surge Protection
- Rugged Metal DIN-Rail Enclosure
- Fast wire-speed switching
- Intelligent routing to eliminate collisions
- UL/CSA (CUL), CE & Hazardous Locations (Zone 2), maritime rated
Red Lion Sixnet SLX-9ES Series User Manual
Red Lion Sixnet Unmanaged 9 Port Ethernet Switch SLX-9ES-3ST
Ethernet Performance
Unmanaged, Store & Forward Wire Speed Switching
Automatic Learning, Aging, Migration for Addresses
Typical Latency for 10Mbps Ports: 16 us + frame time- varies on load
Typical Latency for 100Mbps Ports: 5 us + frame time- varies on load
Full Duplex Operation w/ Flow Control
MAC Addresses supported: 1024
Memory Bandwidth: 3.2 Gbps
Ethernet Isolation: 1500 VRMS 1 min
Ethernet Ports
Shielded RJ45 Ports: 10/100BaseTX
RJ45 Port Speed Auto-negotiation
RJ45 MDI/MDIX Auto-crossover
Auto-Polarity corrects crossed +/- signals
Fiber Optic Port Speed: 100BaseFX
Fiber Wavelength: 1300 nm center
Fiber Max Distance: 20 KM
Typical Singlemode Fiber: 9 or 10/125 um ST
Ethernet Compliance
IEEE 802.3 (10Mbps Ethernet supports legacy devices)
IEEE 802.3u (Fast Ethernet 100Mbps for new devices)
IEEE 802.3x (Full-Duplex with flow control)
Power Input
Typical Input Power: 5 W (all ports active)
Transient Protection: 15,000 watts peak
Spike Protection: 5000 watts (10 times for 10 uS)
Environmental
Operating Temperature: -40 C to 85 C
Storage Temperature: -40 C to 85 C
Humidity (Non-Condensing): 5 to 95% RH
Vibration & Shock: IEC60068-2-6
Max Operating Altitude: 30,000 ft
Standards Compliance
Electrical Safety: UL 508/CSA C22.2/14, EN61010-1, CE
EMC: FCC Part 15, ICES-003, EN55022, EN61000-6, CE
Hazardous Locations: UL 1604/CSA C22.2/213 (Class I, Div 2),
EN60079-15 (Zone 2, Category 3), CE (ATEX)
Maritime: Marine & Offshore per ABS
Eye Safety: IEC60825-1, Class 1; FDA 21 CFR 1040.10
& 1040.11
Physical
DIN-Rail or Panel Mount

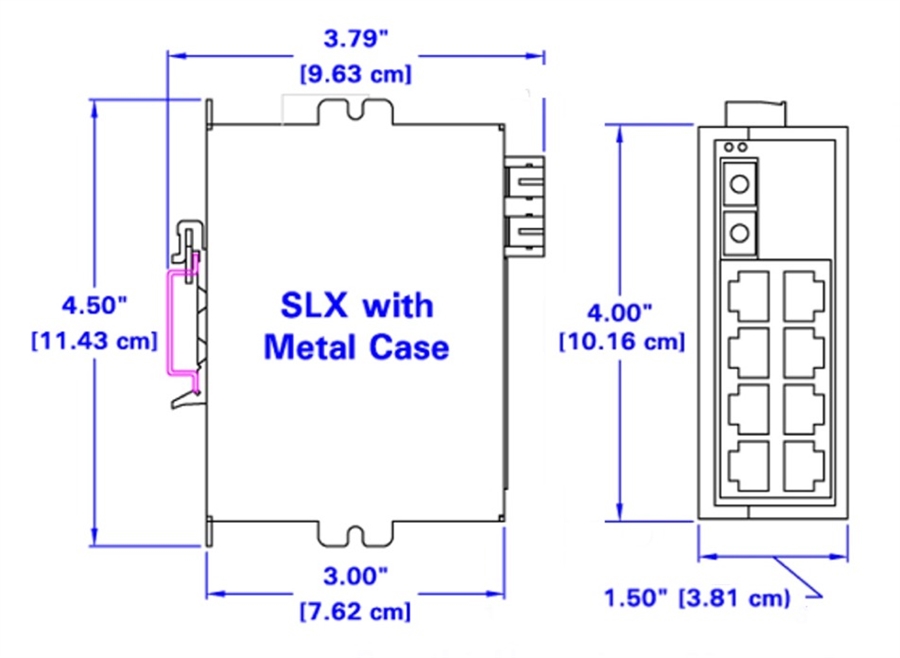

Dimensions: 4.5" H x 1.5" W x 3.79" L
Case: Corrosion resistant aluminum rated IP 40
|
|
|
