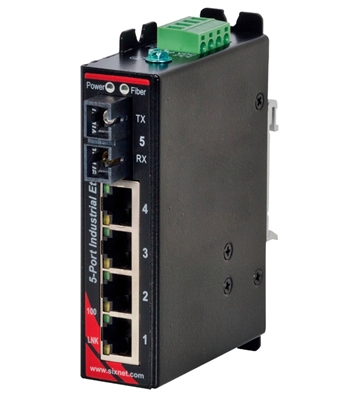

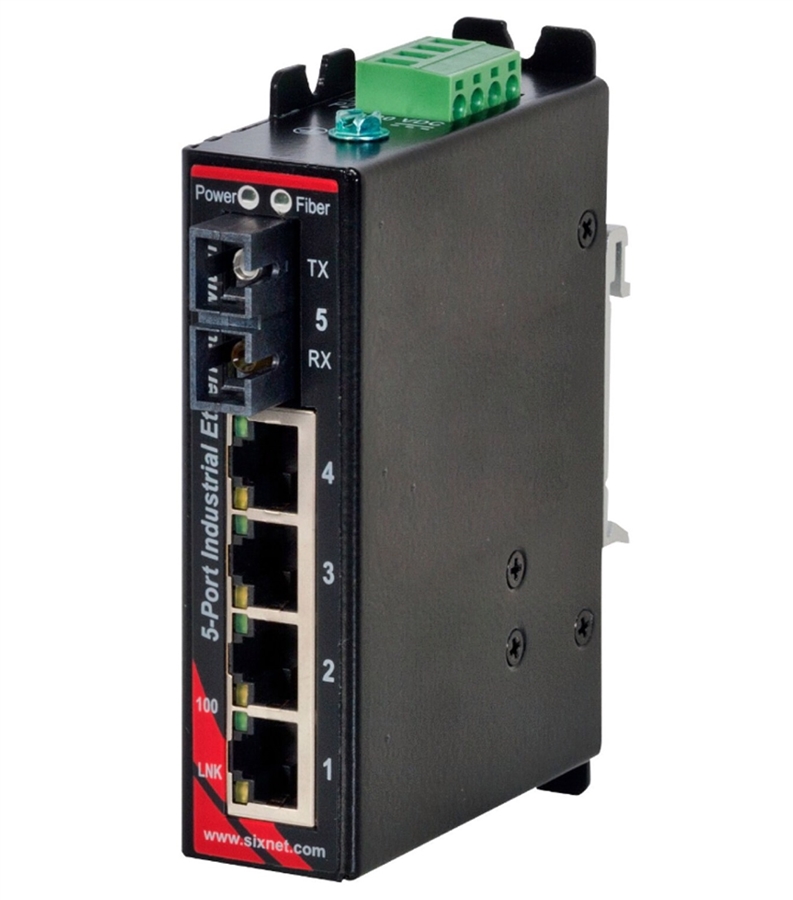

The Red Lion Sixnet ^® Series SLX-5ES-3SCL is a 5 port unmanaged Industrial Ethernet Switch. Housed in an aluminum DIN rail enclosure, this SlimLine Plus SLX series switch features 60km singlemode fiber optic cable with an SC style fiber connector. It has four 10/100BaseTX RJ45 ports and one 100BaseFX fiber port. It is made to work at an efficient speed to provide real-time operation, as well as to handle the conditions of industrial applications. The switch will run upon start-up without needing a complicated user set-up, due to the plug and play capability.

PRODUCT FEATURES

• Compact housing
• Unmanaged plug and play operation
• Full IEEE 802.3 Compliance
• 5 Ports: Four RJ45 ports, one fiber port
• Extended Environmental Specifications
• -40 C to 85 C Operating temperature
• >1M+ Hours MTBF
• Supports Full/Half Duplex Operation
• LED link/activity status indication
• Auto senses speed and flow
• MDIX auto sensing cable
• Redundant Power Inputs (10-30VDC)
• Power inputs with surge protection
• Rugged Metal DIN-Rail Enclosure
• UL/CSA (CUL), CE, Hazardous Locations (Zone 2), maritime rated

Red Lion Sixnet SLX-5ES Series User Manual

60 KM Singlemode Fiber 5 Port Ethernet Switch SLX-5ES-3SCL

Ethernet Performance
Unmanaged, Store & Forward Wire Speed Switching
Full Duplex Operation with flow control
Address learning, aging, migration automatic
MAC Addresses supported: 1024
Memory Bandwidth: 3.2 Gbps
Typical Latency for 10Mbps Ports: 16 us + frame time
Typical Latency for 100Mbps Ports: 5 us + frame time
Ethernet Isolation: 1500 VRMS 1 min
Ethernet Ports
RJ45 Ports: 10/100BaseTX
RJ45 MDI/MDIX Auto-crossover
Auto-polarity for crossed +/- signals
Auto negotiation for 10 or 100 Mbps
Fiber Optic Port Speed: 100BaseFX (100Mbps)
Full Duplex Operation
Typical Fiber Wavelength: 1300 nm center
Fiber max. Distance: 60 km SC
Ethernet Compliance
IEEE 802.3 (10Mbps Ethernet supports legacy devices)
IEEE 802.3u (Fast Ethernet 100Mbps for new devices)
IEEE 802.3x (Full-Duplex with flow control)
Power Input
Input Power: 3 W
Transient Protection: 15,000 watts peak
Spike Protection: 5000 watts (10 times for 10 uS)
Environmental
Operating Temperature: -40 C to 85 C (cold startup -40 C)
Storage Temperature: -40 C to 85 C
Humidity (Non-Condensing): 5 to 95% RH
Vibration & Shock: IEC60068-2-6
Standards Compliance
Electrical Safety: UL 508/CSA C22.2/14, EN61010-1, CE
EMC: FCC Part 15, ICES-003, EN55022, EN61000-6, CE
Hazardous Locations: UL 1604/CSA C22.2/213 (Class I, Div 2),
EN60079-15 (Zone 2, Category 3), CE (ATEX)
Maritime: Marine & Offshore per ABS
Physical
DIN-Rail or panel mount
Dimensions: 4.5" H x 1" W x 3.79" L
Case: Corrosion-resistant aluminum, rated IP 40
