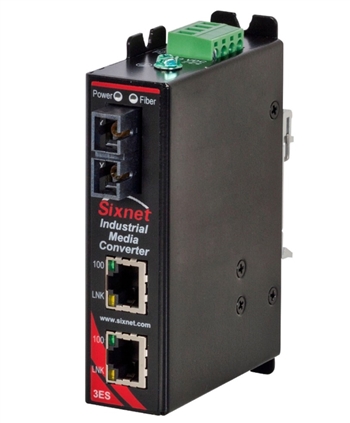

The Red Lion Sixnet ^® Series SLX-3ES-2SC is a 3 port unmanaged copper to fiber industrial media converter. This SlimLine Plus SLX series switch is housed in an aluminum DIN-Rail enclosure, and features 4km multimode fiber optic cable with an SC style fiber connector. It has two 10/100BaseTX RJ45 ports and one 100BaseFX fiber port. It is built to run at an efficient speed for real-time operation, as well as to meet the demands of industrial networks. The plug and play capability means that the switch is ready to go right away, without needing a user set-up. This switch works well in applications such as video & security, transportation, oil & gas, maritime, and mining. Comes with a 5 year warranty on defects in manufacturing or design.

PRODUCT FEATURES

• Compact housing
• Unmanaged plug and play operation
• Full IEEE 802.3 Compliance
• 3 Ports: Two RJ45 ports, One fiber port
• Extended Environmental Specifications
• -40 C to 85 C Operating temperature
• >1M+ Hours MTBF
• Supports Full/Half Duplex Operation
• LED link/activity status indication
• Auto senses speed and flow
• MDIX auto sensing cable
• Redundant Power Inputs (10-30VDC)
• Power inputs with surge protection
• Intelligent routing of messages
• Rugged Metal DIN-Rail Enclosure
• Hazardous Locations (Class I, Division 2 and Zone 2) rated

Red Lion Sixnet SLX-3ES Series User Manual

Sixnet SLX-3ES-2SC 3 Port Ethernet Media Converter
