Mencom LP1-DP1-RJ45-USB-AFAF-R Low Profile Programming Interface
Mencom LP1-DP1-RJ45-USB-AFAF-R Low Profile Panel Interface Connector, Simplex Outlet, USB-AFAF, RJ45, 3A Reset, Single Size Housing
Larger Photo




Mencom Low Profile Panel Interface Connector, Simplex Outlet, USB-AFAF, RJ45, 3A Reset, Single Size Housing

Price: $138.72
Note: Delivery: 2-5 Business Days
MFG P/N: LP1-DP1-RJ45-USB-AFAF-R
MFG: Mencom
Weight (lbs): 0.8

Quantity in Stock :1


Availability:
In Stock
Product Code: LP1-DP1-RJ45-USB-AFAF-R
Qty:

View quantity discounts
Description

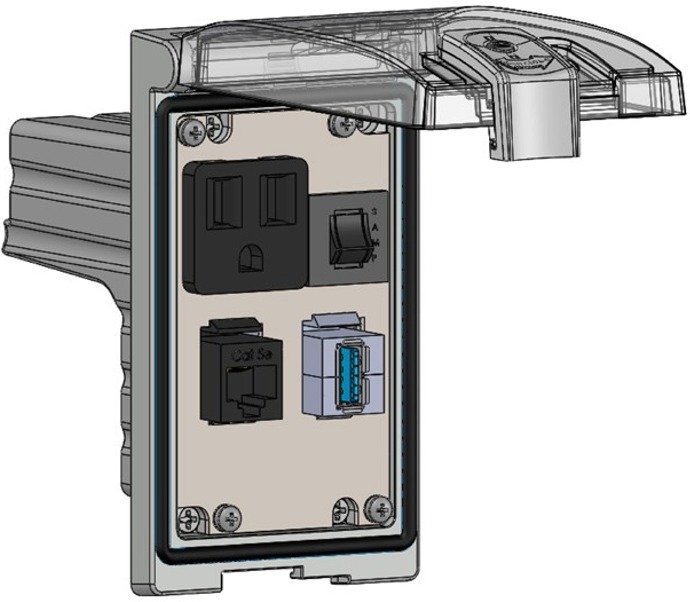

The Mencom LP1-DP1-RJ45-USB-AFAF-R panel interface connector (PIC) features a 120V simplex receptacle, Type A to Type A USB port, female/female RJ45 Ethernet & a 3A resettable fuse in a single cover housing. Housing is rated IP 65 and features a sliding lock mechanism that can be operated with a flat head screwdriver. Mencom PICs attach to the outside of the control cabinet and allow access to the PLC or PAC without having to open the panel door. The low profile housing is 75% lower than a standard PIC, & features a clear cover to view the components inside.

Specifications

  • Body- Nickel Plated Zinc
  • Front Cover- Polycarbonate
  • Latch & Lock- PBT
  • Back Cover- Polypropylene
  • Gasket- Nitrile/UL70
  • Housing- Single Cover Low Profile Housing
  • Power Ports- 120V Simplex Receptacle
  • USB- Form A to Form A Female/Female
  • RJ / Ethernet- RJ45 Female/Female Ethernet
  • Reset- 3A Resettable
  • Screw Size- M3
  • Torque- 0.9 N-m (0.675 Lb-Ft)
  • Panel Thickness- 5mm max.
  • IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
