Mencom Low Profile Panel Interface Connector, Simplex Outlet, DB9, Single Size Housing

Mencom LP1-DP1-DB9 Low Profile Programming Interface
Mencom LP1-DP1-DB9 Low Profile Panel Interface Connector, Simplex Outlet, DB9, Single Size Housing

Alternative Views:
Price: $110.03
Note: Please call or email [email protected] for alternatives
MFG P/N: LP1-DP1-DB9
MFG: Mencom
Weight (lbs): 0.8

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: LP1-DP1-DB9
Qty:


Description

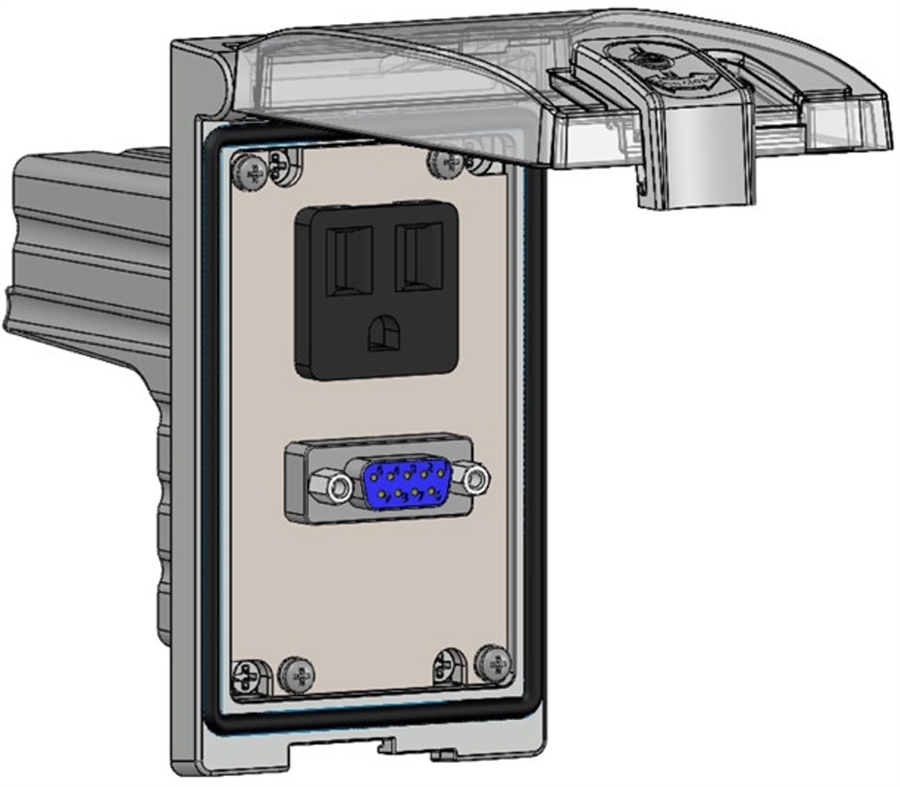

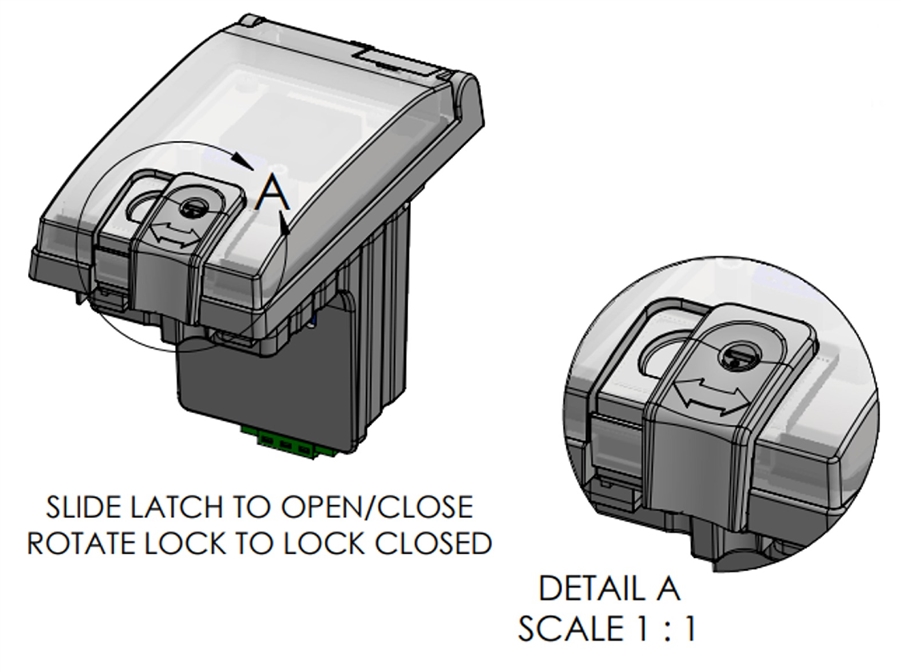

The Mencom LP1-DP1-DB9 panel interface connector (PIC) features a 120V simplex receptacle and a female ext./male int. 9 Pin D-Sub in a single cover housing. Housing is rated IP 65 and features a sliding lock mechanism that is operated with a flat head screwdriver. Mencom PICs attach to the outside of the control cabinet and allow access to the PLC or PAC without having to open the panel door. The low profile housing is 75% lower than a standard PIC, & features a clear cover to view the components inside.

Specifications

  • Body- Nickel Plated Zinc
  • Front Cover- Polycarbonate
  • Latch & Lock- PBT
  • Back Cover- Polypropylene
  • Gasket- Nitrile/UL70

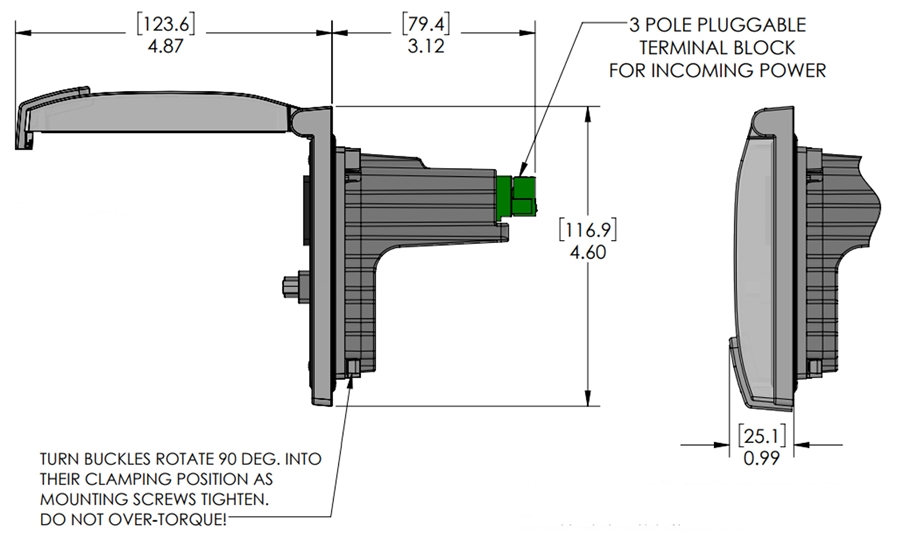

  • Dimensions- 2.57" Width x 4.6" Height x 4.11" Depth
  • Volts- 125V
  • Amps- 15 Amps
  • SCCR- 10kA
  • Housing- Single Cover Low Profile Housing
  • Power Ports- 120V Simplex Receptacle

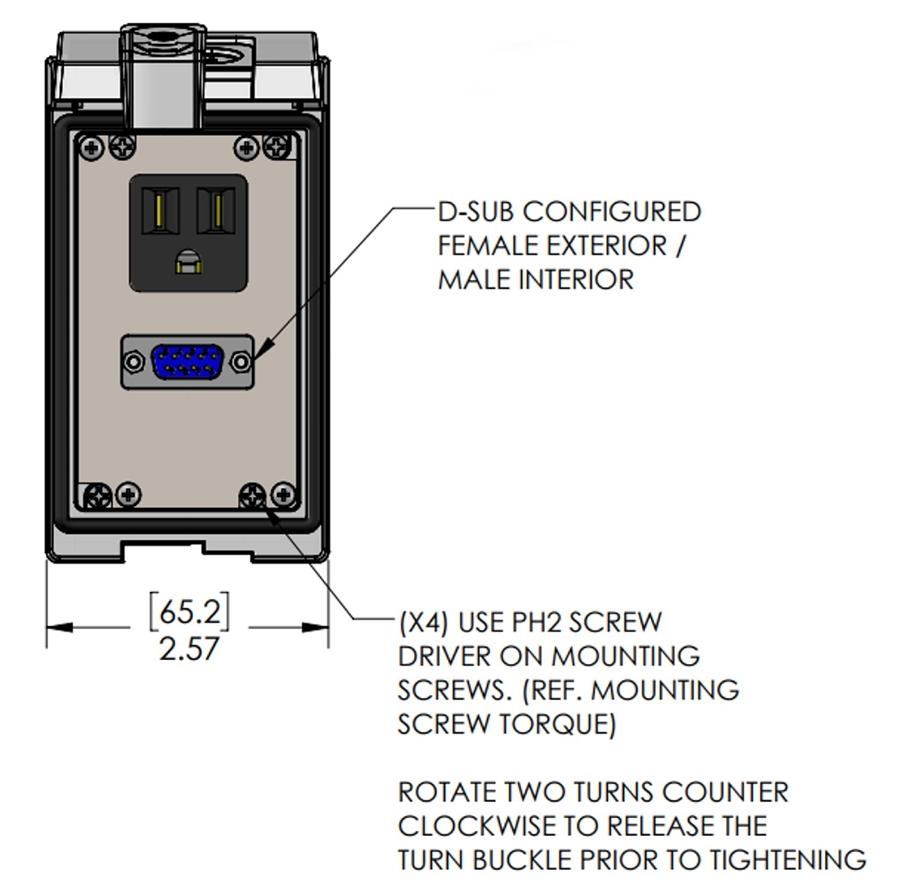

  • D-Subs- 9 Pin Female Ext/Male Int
  • Screw Size- M3
  • Torque- 0.9 N-m (0.675 Lb-Ft)

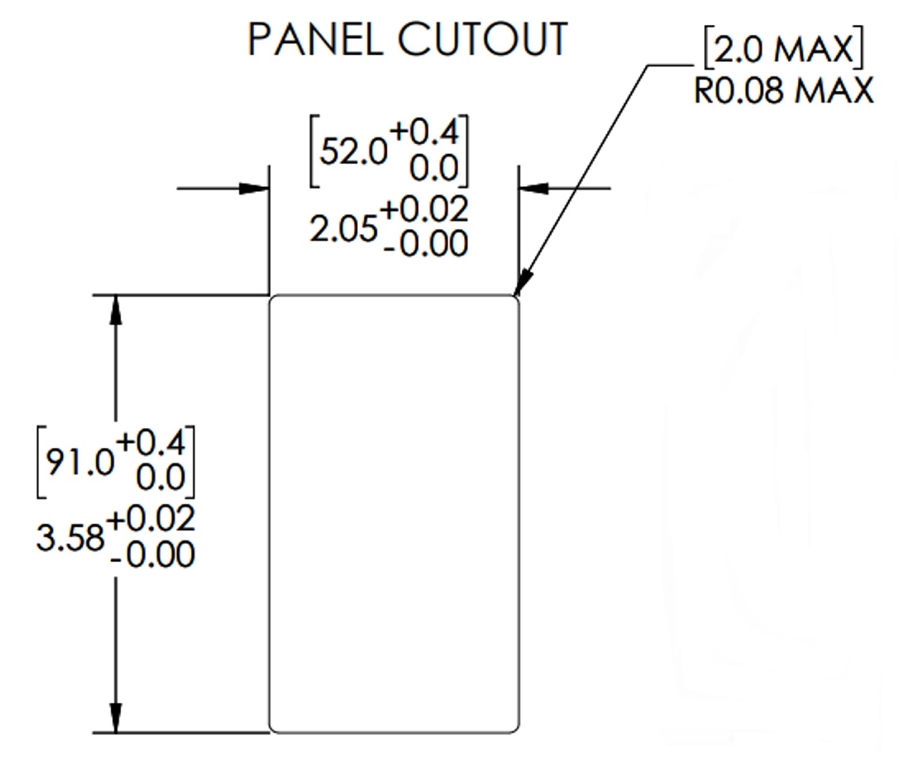

  • Panel Thickness- 5mm max.
  • IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
