Sealcon Straight Female Thread M23 Signal Connector, 16 Pole

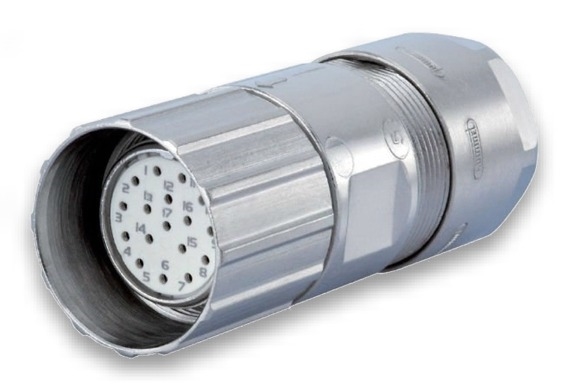

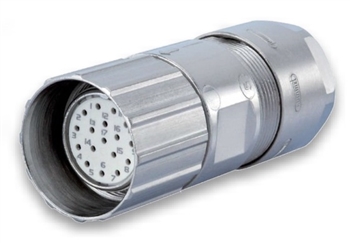

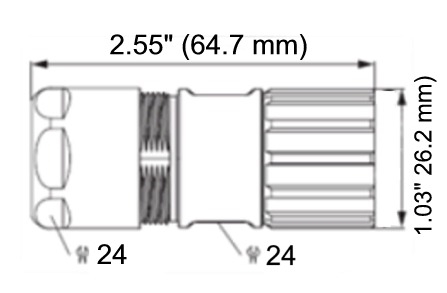

Sealcon 16 Pole Female Thread M23 Connector

Alternative Views:
Price: $15.77

MFG P/N: M23-FS16
MFG: Sealcon



Availability: In Stock
Product Code: M23-FS16

Housings


Inserts


Crimp Contacts



Qty:
Description


The Sealcon M23 straight signal connector features a 16 pole insert and female threads. The housing is nickel plated die cast zinc with gold plated brass alloy contacts. Housings, male/female inserts & optional crimp contacts are chosen based on customer preferences. Male or female inserts can be fitted into the same housing, increasing modularity. Features integrated strain relief. Operating temperature: - 40 C to 125 C (- 40 F to 257 F). Rated IP 67 / IP 69K, NEMA 4x. Note: 17 pole connector pictured.

Features

  • No tools are necessary to install or take out crimp contacts - Reduces chance of damage to the insert or contacts due to repeated installation or removal. The Euro Lock System inside the insert keeps the contacts in place
  • Crimp contacts machined
  • Solder contacts for manual soldering for PC boards
  • SLS (Spring Loaded Sockets) for applications experiencing high vibration - Socket contacts have an integrated spring to increase the reliability of the connection and add support, up to 50g of shock and 10g continuous force.
  • Color coded spacers for male and female inserts
  • UL & CSA approvals
  • RoHS & Deca BDE compliant

Inserts
Contact Diameter- 1mm
Nominal current- 8A
Nominal voltage (Degree of protection 2)- 400 V
Nominal voltage (Degree of protection 3)- 160 V
Test voltage (Breakdown voltage)- 1500 V
Insulation resistance- >10 MOhm
Max. contact resistance- 3mOhm
Crimp Contacts Crimp Range
7.010.901.031: 0.08 mm2 - 0.56 mm2, AWG 28 - AWG 20
7.010.901.001: 0.14 mm2 - 1.0 mm2, AWG 26 - AWG 17
7.010.901.012: 0.08 mm2 - 0.56 mm2, AWG 28 - AWG 20
7.010.901.002: 0.34 mm2 - 1 mm2, AWG 22 - AWG 17
7.010.901.021: 1 mm2 - 1.5 mm2, AWG 17 - AWG 16
7.010.901.022: 0.75 mm2 - 1.5 mm2, AWG 18 - AWG 16

HOW TO ORDER

  1. Select a housing - Connector housings offer 3 different cable ranges
  2. Select an insert - 16 pole male (pin) and female (socket) inserts are available with solder contacts or no contacts (for crimping).
  3. Select optional crimp contacts - Choose from either 1mm pin or socket crimp contacts (sold in sets of 16). Please Note: Separate contacts are not needed for inserts with solder contacts (choose the No Contacts Required option)

Female Straight M23 16 Pole Sealcon Signal Connector
