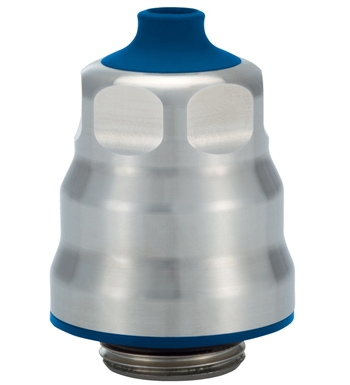

Sealcon FP25MA-6S high quality stainless steel hygienic cord grip is designed for the toughest applications. Also known as Hummel 1.740.2502.50. Sold Individually.
Locking nut sold separately. Note: Special order item, please allow for a longer lead time.
Specifications
- Thread Size: M25 x 1.5
- Cable O.D. Range: .51" - .71" (13 - 18 mm)
- Through Hole Diameter: 1.57" (40 mm)
- Body Length: 1.63" (41.5 mm)
- Thread Length: .24" (6 mm)
- Wrench Flat: 1.18" (30 mm)
Features
- 316L Stainless Steel Material
- Perfect in wash down IP68 (NEMA 6) applications
- Prevents bacteria and micro-organism build-up
- Smooth surface keeps foreign material from collecting
- Higher temp rating - 40 F to 248 F (-40 C to 120 C)
- Resists disinfectant, cleaners, acids and alkalis
- Water cannot collect on the surface or in the cable gland
- NEMA 6 (IP68)
- 150 psig (10 bar) Pressure Rating
- Durable Rugged Construction
- FDA conformed, EHEDG listed
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of
Chemicals
- Waste Electrical and Electronic Equipment Directive

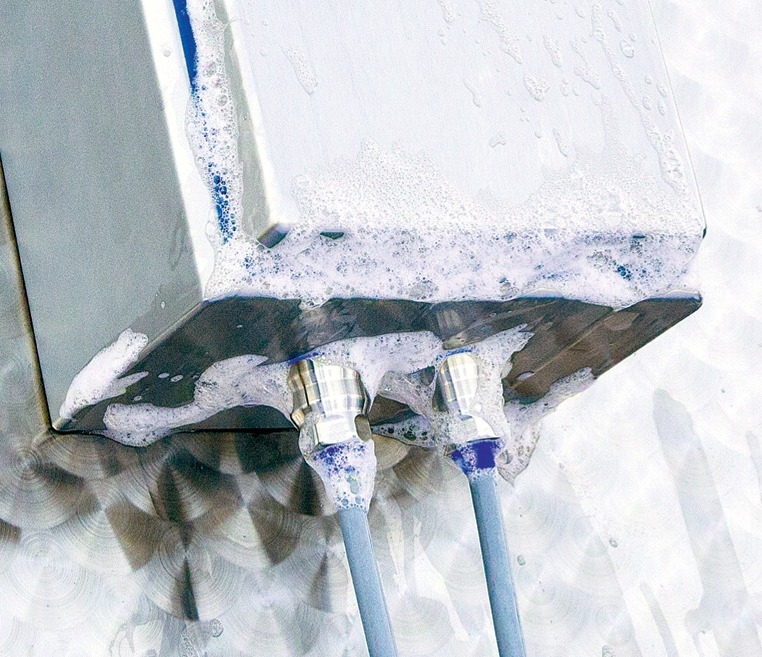

Sealcon M25 x 1.5 Metric stainless steel strain relief fittings, also known as cable glands or cord grips, are used to help customers in connecting cable or wire to different applications. This cable gland provides a NEMA 6 (IP 68) Liquid Tight Rating. The FP25MA-6S cord grip is made from 316L stainless steel, which is a harder material than 303 stainless steel. It also stands up to salt water and works well for chemical applications. Hygienic cable glands are recommended for use primarily in food processing. Examples of possible applications and industries include bottling & beverage plants, dairy or meat processing, food production and packaging, medicine and agriculture.
Hummel 1.740.2502.50 M25 Hygienic Steel Cable Gland
|
|
|
