Sealcon M23 Right Angle Panel Mount Signal Connector, 9 Pole

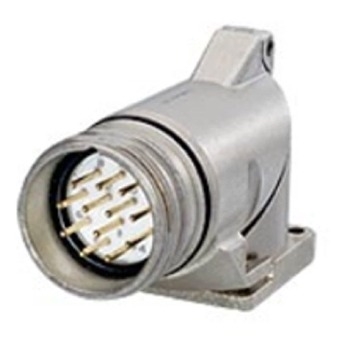

Sealcon 9 Pole Elbow Panel Mount M23 Connector

Alternative Views:
Price: $17.26

MFG P/N: M23-RAM9
MFG: Sealcon



Availability: In Stock
Product Code: M23-RAM9

Housings


Inserts


Crimp Contacts



Additional Crimp Contacts:

Qty:
Description


The Sealcon M23 right angle panel mounted signal connector features a 9 pole insert and male threads. The body is die cast zinc with a nickel plated brass surface and gold plated brass alloy contacts. Housings can be fixed or rotating, depending on the part. The insert takes eight 1mm contacts and one 2mm contact. Housings, male/female inserts & optional crimp contacts are chosen based on customer requirements. Male or female inserts can be used in the same type of housing, which increases adaptability. Operating temperature: - 40 C to 125 C (- 40 F to 257 F). Rated IP 67 / IP 69K, NEMA 4x. Note: Image is for reference, actual part may differ.

Features

  • No tools are needed to install or remove crimp contacts - Less risk of damage to the insert or contacts caused by repeated installation or removal. The Euro Lock System inside the insert keeps the contacts in position
  • Crimp contacts machined
  • Solder contacts for dip soldering for PC boards
  • SLS (Spring Loaded Sockets) for high vibration applications - Socket contacts feature an integrated spring to increase the reliability of the connection and add support, up to 50g of shock and 10g continuous force.
  • Color coded spacers for male and female inserts
  • UL & CSA approvals
  • RoHS & Deca BDE compliant

Inserts
Contact Diameter- 1mm (8), 2mm (1)
Nominal current- 8 A (1mm), 20 A (2mm)
Nominal voltage (Degree of protection 2)- 500 V
Nominal voltage (Degree of protection 3)- 200 V
Test voltage (Breakdown voltage)- 2500 V
Insulation resistance- >10 MOhm
Max. contact resistance- 3 mOhm
Crimp Contacts Crimp Range
7.010.901.031: 0.08 mm2 - 0.56 mm2, AWG 28 - AWG 20
7.010.901.001: 0.14 mm2 - 1.0 mm2, AWG 26 - AWG 17
7.010.901.012: 0.08 mm2 - 0.56 mm2, AWG 28 - AWG 20
7.010.901.002: 0.34 mm2 - 1 mm2, AWG 22 - AWG 17
7.010.901.021: 1 mm2 - 1.5 mm2, AWG 17 - AWG 16
7.010.901.022: 0.75 mm2 - 1.5 mm2, AWG 18 - AWG 16
7.010.902.001: 0.75 mm2 - 2.5 mm2, AWG 18 - AWG 14
7.010.902.002: 0.75 mm2- 2.5 mm2, AWG 18 - AWG 14

HOW TO ORDER

  1. Select a housing - Panel connector housings come in 5 different types. Fixed housings have easy fixation with M2.5 screws. The 300° rotating housings have a 1.5 mm locking screw at flange. (300° rotating flange type- 4 holes .11" (2.7 mm))
  2. Select an insert - 9 pole male (pin) and female (socket) inserts are available with dip solder contacts or no contacts (for crimping).
  3. Select optional crimp contacts - Choose from either 1mm pin or socket crimp contacts (sold in sets of 8). Then select either a 2mm pin or socket crimp contact. Please Note: Separate contacts are not needed for inserts with soldered contacts (choose the No Contacts Required option)

Right Angle Sealcon 9 Pole M23 Signal Connector
