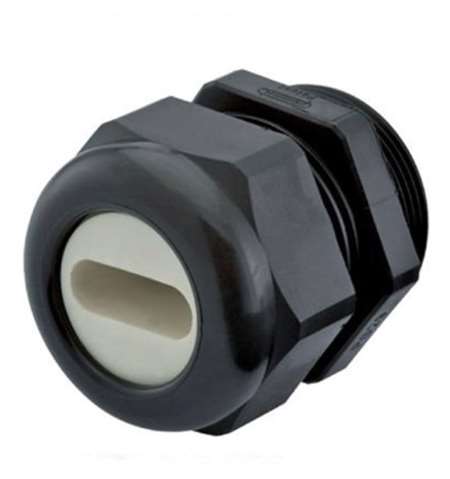

Sealcon CD16AS-03 high quality black nylon Romex cord grips are designed for the toughest applications. Accommodates flat cable. Also known as Hummel 1.587.1600.01. Sold Individually.
Locking nut & O-Ring sold separately

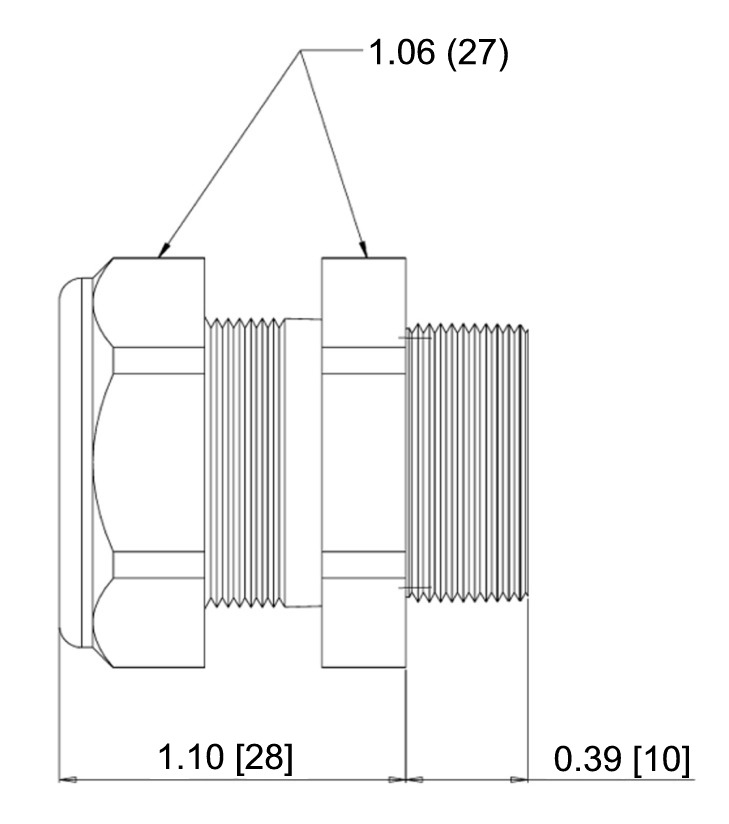

Specifications
- Thread Size: PG 16

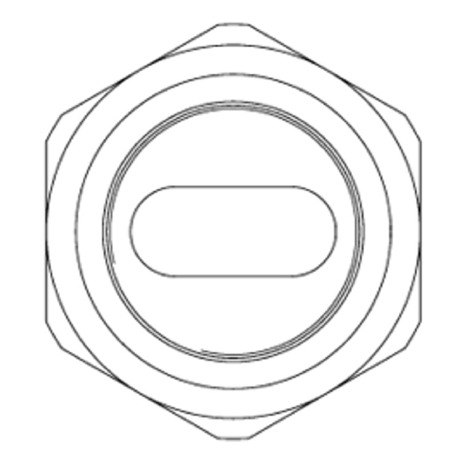

- Cable Slot Size: .20" x .45" (5 x 11.5 mm)
- Through Hole Diameter: .88" (22.3 mm)
- Body Length: 1.1" (28 mm)
- Thread Length: .39" (10 mm)
- Wrench Flat Dome: 1.06" (27 mm)
- Wrench Flat Body: 1.06" (27 mm)
Features
- Nylon 6/6 Material with Elastomer Seal
- Operating Temperature: -40 C to 100 C (-40 F to 212 F)
- Submersible to 300 ft. / NEMA 4x & 6 (IP68)
- IP 69 K is possible, provided that there is an ideal fit and the O-Ring is used
- 150 psig (10 bar) Pressure Rating
- Flame Protected to UL 94
- Halogen and Phosphorous Free
- Vibration Resistant Dome
- Resists salt water, acids, alkalis', gasoline & oils.
- Durable Rugged Construction
- RoHS & Deca BDE, CSA approval
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of
Chemicals
- Waste Electrical and Electronic Equipment Directive
- EAC
- CE
- German Lloyd
- V0 UL94 Rated / Approved
Sealcon PG 16 Nylon / Plastic Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers in all industries connect their cable or wire to their applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K is possible, provided that there is an ideal fit and the O-Ring is used), 150 PSIG (10 bar) Liquid Tight Rating. It has an insert for flat cables and is made from Nylon with Elastomer form seal. Sealcon patented overlapping clamping splines, recessed custom grommets help protect your cable from damage and the elements. The CD16AS-03 fitting provides a substantial amount of Pull-out resistance by applying concentric force on all points of the cable. Romex is a registered trademark of Southwire Company.
Sealcon Black Nylon Flat Cable Insert Cord Grip
|
|
|
