Sealcon M23 Panel Mount Signal Connector with Radius, 12 Pole

Sealcon 12 Pole Panel Mount M23 Connector with Radius

Alternative Views:
Price: $21.53

MFG P/N: M23-RADM12
MFG: Sealcon



Availability: In Stock
Product Code: M23-RADM12

Housings


Inserts


Crimp Contacts



Qty:
Description

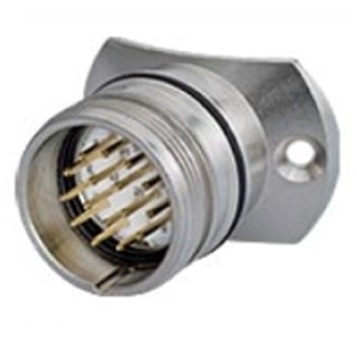

The Sealcon M23 panel mounted signal connector with radius features a 12 pole insert and male threads. The body is copper-zinc alloy with a nickel plated surface and gold plated brass alloy contacts. Housings, male/female inserts & optional crimp contacts are determined by the needs of the application. Male or female inserts can be fitted in the same type of housing, which increases flexibility. Operating temperature: - 40 C to 125 C (- 40 F to 257 F). Rated IP 67 / IP 69K, NEMA 4x. Note: Image is for reference, actual part may differ.

Features

  • Tools are not necessary to install or remove crimp contacts - Reduces chance of damage to the insert or contacts caused by repeated installation or removal. The Euro Lock System inside the insert keeps the contacts in place
  • Crimp contacts machined
  • Solder contacts for dip soldering for PC boards
  • SLS (Spring Loaded Sockets) for high vibration environments - Socket contacts have an integrated spring to increase the reliability of the connection and add support, up to 50g of shock and 10g continuous force.
  • Color coded spacers for male and female inserts
  • UL & CSA approvals
  • RoHS & Deca BDE compliant

Inserts

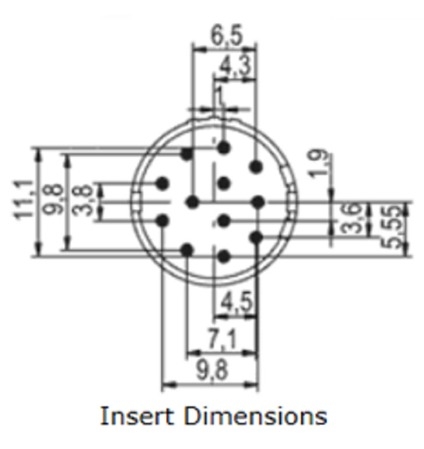

Contact Diameter- 1mm
Nominal current- 8 A
Nominal voltage (Degree of protection 2)- 500 V
Nominal voltage (Degree of protection 3)- 200 V
Test voltage (Breakdown voltage)- 2500 V
Insulation resistance- >10 MOhm
Max. contact resistance- 3 mOhm
Crimp Contacts Crimp Range
7.010.901.031: 0.08 mm2 - 0.56 mm2, AWG 28 - AWG 20
7.010.901.001: 0.14 mm2 - 1.0 mm2, AWG 26 - AWG 17
7.010.901.012: 0.08 mm2 - 0.56 mm2, AWG 28 - AWG 20
7.010.901.002: 0.34 mm2 - 1 mm2, AWG 22 - AWG 17
7.010.901.021: 1 mm2 - 1.5 mm2, AWG 17 - AWG 16
7.010.901.022: 0.75 mm2 - 1.5 mm2, AWG 18 - AWG 16

HOW TO ORDER

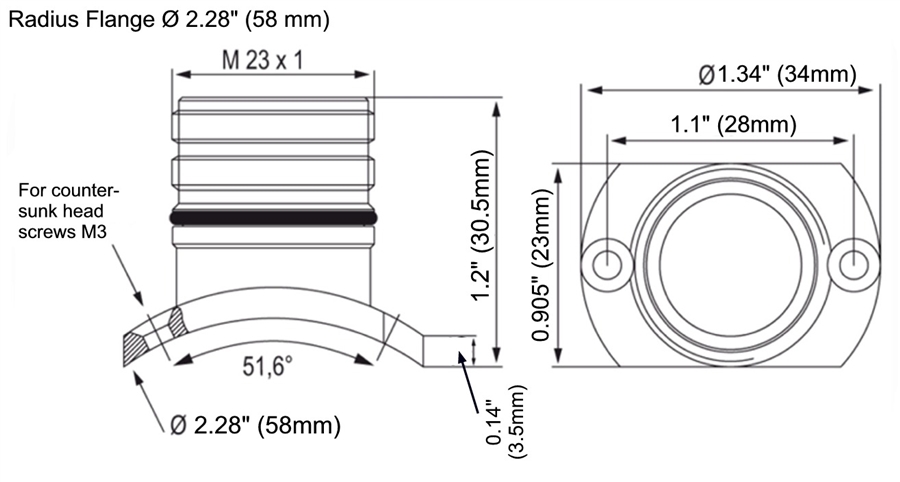

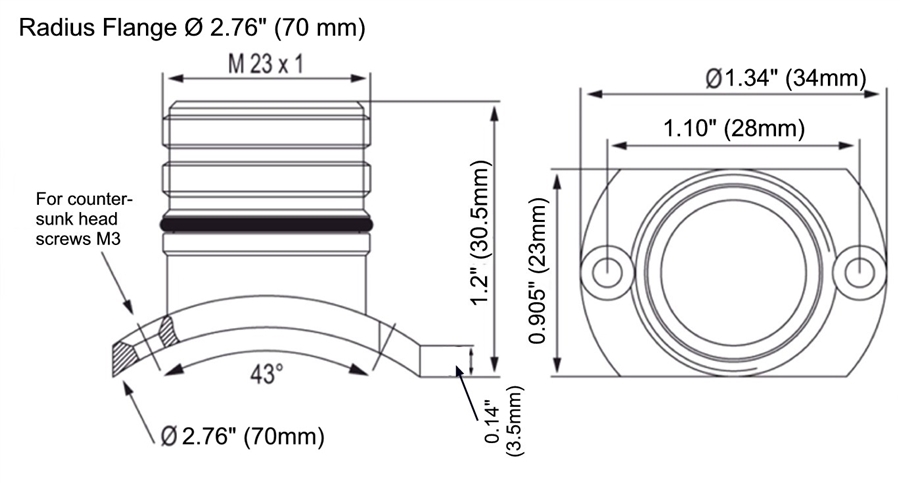

  1. Select a housing - Panel connector housings offer 3 different radius flange types and have an anti-vibration O-Ring and flat body gasket.

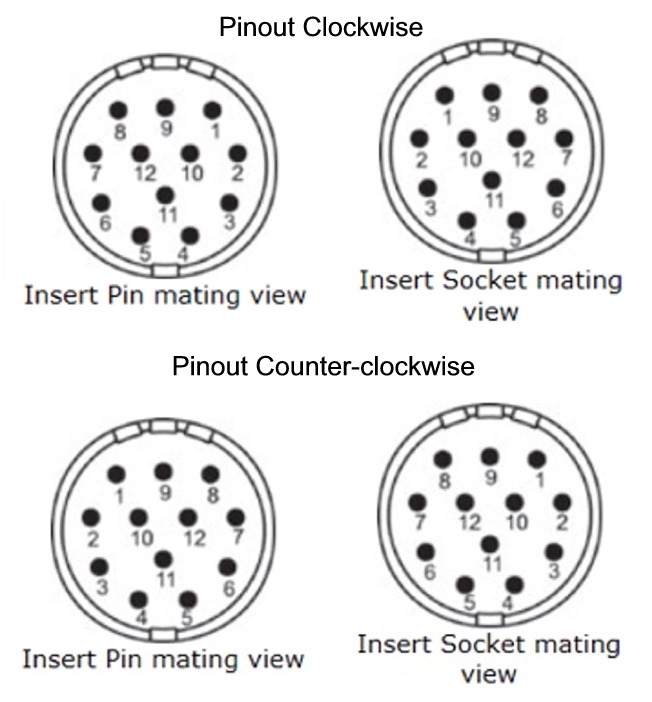

  2. Select an insert - 12 pole male (pin) and female (socket) inserts are available with dip solder contacts or no contacts (for crimping). Inserts with ground (PE) have the ground located at position 9

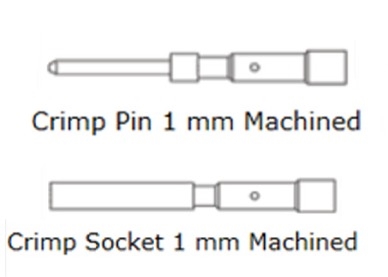

  3. Select optional crimp contacts - Choose from either 1mm pin or socket crimp contacts (sold in sets of 12). Please Note: Separate contacts are not required for inserts with soldered contacts (choose the No Contacts Required option)

Sealcon Panel Mount 12 Pin M23 Signal Connector w/ Radius
