Sealcon OR-18-VT 1/2" NPT Viton O-Ring

OR-18-VT
Sealcon 1/2" NPT Viton O-Ring

Alternative Views:
Price: $2.95
MFG P/N: OR-18-VT
MFG: Sealcon
Ships From: Eastlake, OH
Weight (lbs): 0.006

Quantity in Stock :2036


Availability: In Stock
Product Code: OR-18-VT
Qty:


Description

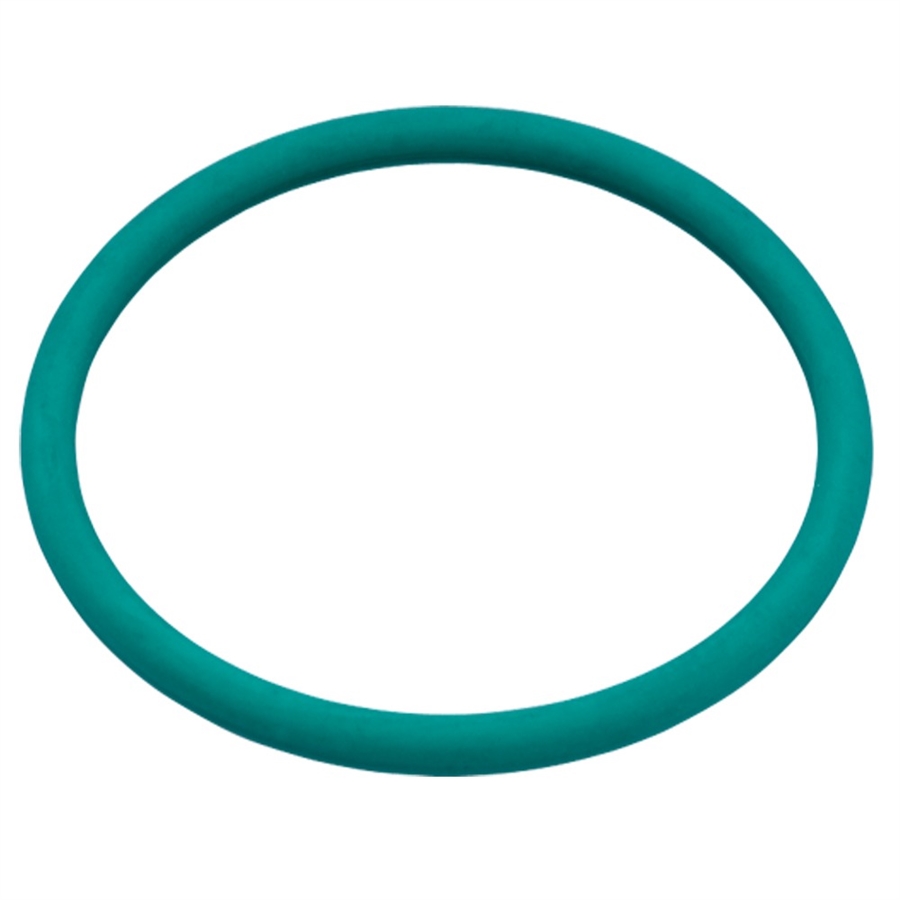

Sealcon OR-18-VT high quality Viton O-Rings are liquid tight to 150 psi. 1/2" NPT Thread. Sold Individually. Also known as Hummel # 1.321.1200.78.

Specifications

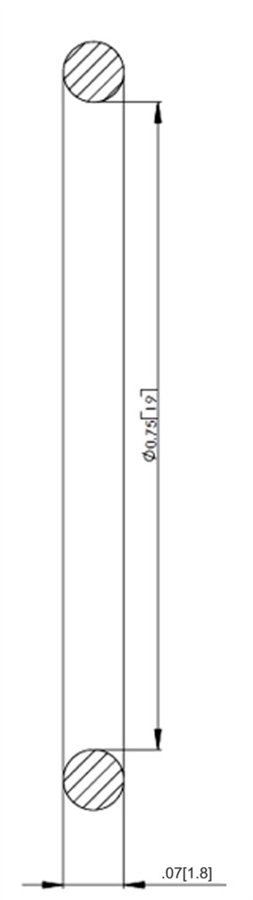

  • Thread Size: 1/2" NPT
  • Inner Diameter: .75" (19 mm)
  • Height: .07" (1.8 mm)

Features

  • Viton Material
  • Operating Temperature - -40 F to 392 F (-40 C to 200 C)
  • Submersible to 300 Ft - NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 PSIG (10 Bar) Rating
  • RoHS & Deca BDE approval

The Straight Strain Relief fittings feature a molded O-Ring groove. The Snap Elbows and some of the Conduit Fittings do not have recess for an O-Ring. In that case, the Seal Ring would be the best choice, unless the hole can be beveled to accommodate an O-Ring. If NEMA 4x or 6 (European IP 68 - submersible) is required, O-Rings or Seal Rings should be used when mounting Strain Relief Fittings to a control panel, secured with a locking nut. Viton is a federally registered trademark of DuPont Dow Elastomer.

Sealcon 1/2" NPT Viton O-Ring
