Home > Electrical Enclosures > Push Button Boxes >

Saginaw Push Button Enclosure, 6 Position, 30.5mm, 2x2

Saginaw SCE-6PB Push Button Box, 6 Position, 30.5mm
Saginaw SCE-6PB Push Button Enclosure, 6 Position, 30.5mm, 2x2

Alternative Views:
Price: $95.50
MFG P/N: SCE-6PB
MFG: Saginaw Control & Engineering
Weight (lbs): 8



Availability: In Stock
Product Code: SCE-6PB
Qty:

Description


Saginaw Control & Engineering SCE-6PB is a 6 position push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and 30.5mm pushbutton entrances in a 2x3 configuration. Used for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture.

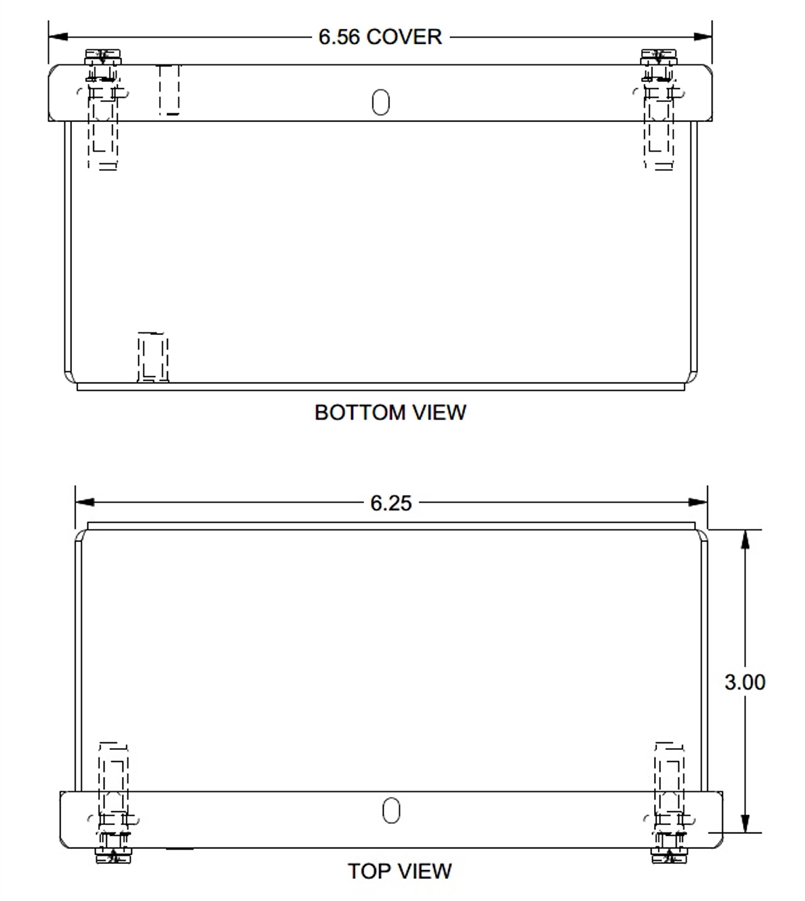

  • 9.5" H x 6.25" W x 3" D (241.3mm x 158.75mm x 76.2mm)
  • Seams are continuously welded
  • Cover screws thread into sealed wells
  • Accepts any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrances
  • Gasket is oil & water resistant
  • Welded mounting provision located on the back at the top and bottom
  • IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66

Saginaw SCE-6PB 6 Position 30.5mm Steel Push Button Enclosure
