Saginaw Push Button Enclosure, Stainless Steel, 4 Position, 30.5mm, 1x4

Saginaw Push Button Box, Stainless Steel, 4 Position, 30.5mm
Saginaw SCE-4PBSS Push Button Enclosure, Stainless Steel, 4 Position, 30.5mm, 1x4

Alternative Views:
Price: $215.45
MFG P/N: SCE-4PBSS
MFG: Saginaw Control & Engineering
Weight (lbs): 5



Availability: In Stock
Product Code: SCE-4PBSS
Qty:

Description

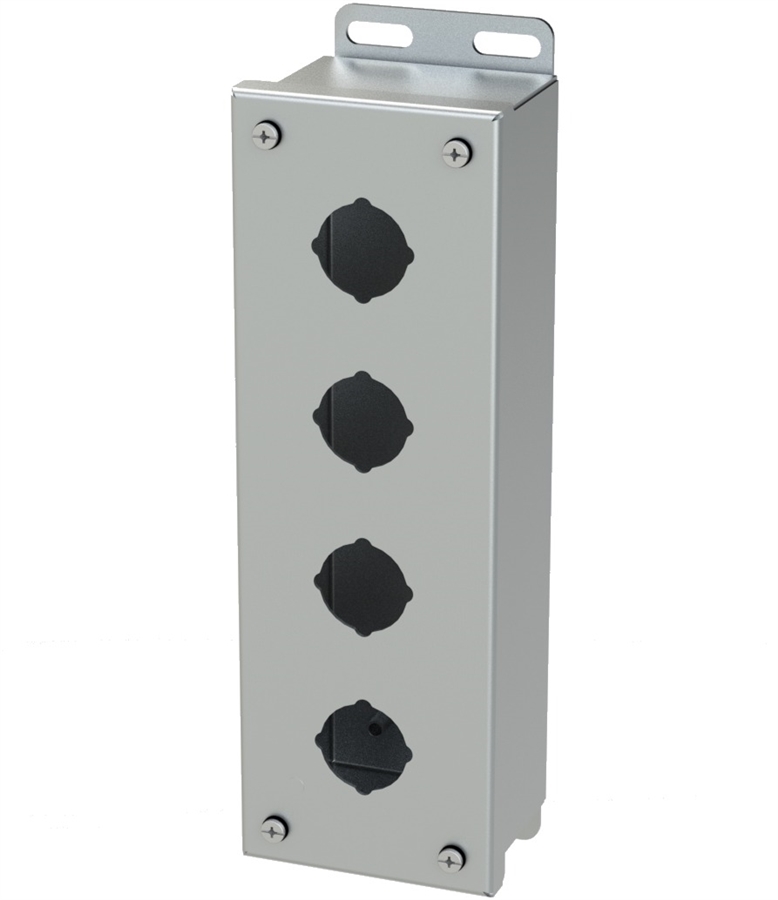

Saginaw Control & Engineering SCE-4PBSS is a 4 position push button enclosure. It is made from 0.063" 304 stainless steel with a #4 brushed finish and four 30.5mm pushbutton entrances in a 1x4 layout. Ideal for wash down/hose down applications and around corrosive areas.

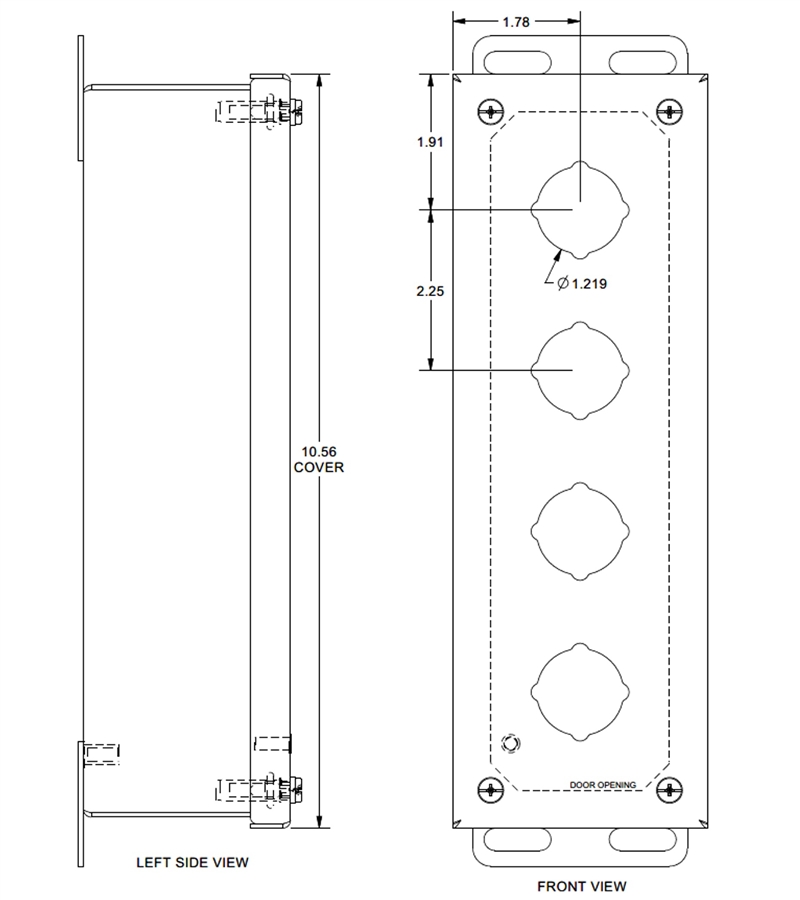

  • 10.25" H x 3.25" W x 2.75" D (260.35mm x 82.55mm x 69.85mm)
  • Continuously welded seams
  • Cover screws thread into sealed wells
  • Compatible with any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrances
  • Removable cover
  • Oil / water resistant gasket
  • Welded mounting provision located on the back at the top and bottom
  • IS5 industry standards - NEMA Type 4, 4x, 12 and Type 13, UL Listed Type 4, 4x, and 12, CSA Type 4, 4x, and 12, IEC 60529, IP 66

4 Position 30.5mm 304 Stainless Steel Push Button Box Saginaw SCE-4PBSS
