Saginaw Push Button Enclosure, Stainless Steel, 3 Position, 30.5mm

Saginaw SCE-3PBSS Push Button Box, 3 Position, 30.5mm
Saginaw SCE-3PBSS Push Button Enclosure, Stainless Steel, 3 Position, 30.5mm

Alternative Views:
Price: $190.11
MFG P/N: SCE-3PBSS
MFG: Saginaw Control & Engineering
Weight (lbs): 3



Availability: In Stock
Product Code: SCE-3PBSS
Qty:

Description

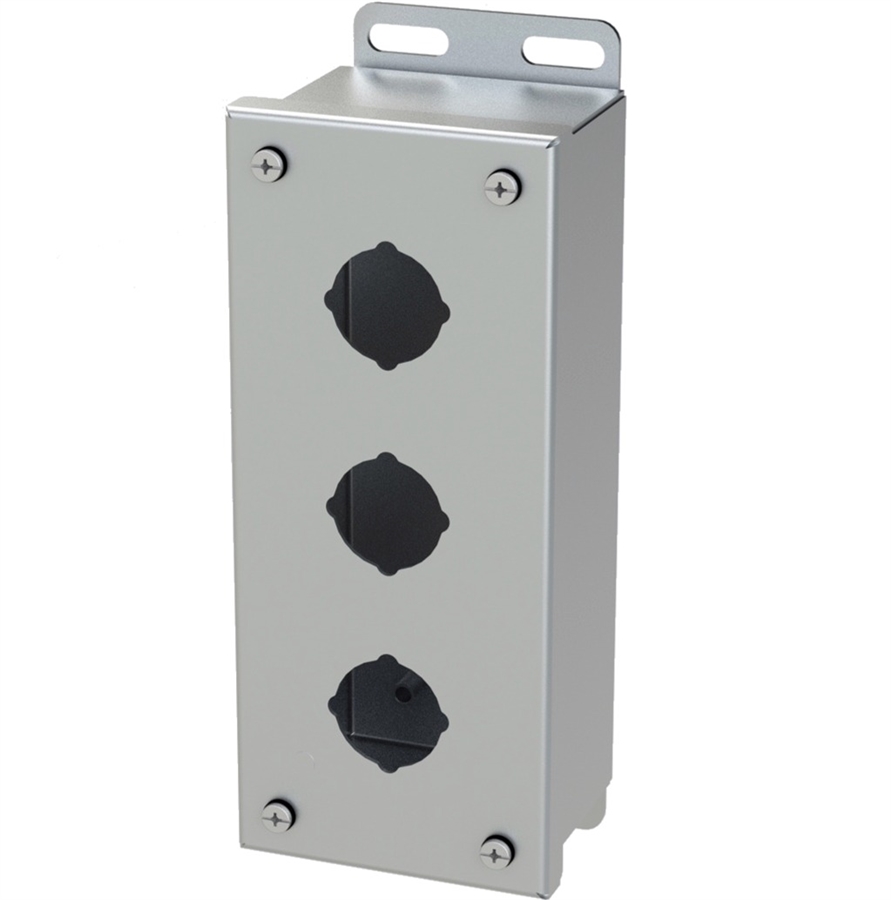

Saginaw Control & Engineering SCE-3PBSS is a 3 position push button enclosure. It is made from 0.063" 304 stainless steel with a #4 brushed finish and three 30.5mm pushbutton entrances in a 1x3 configuration. Used for keeping oil-tight push buttons, switches, and pilot lights protected in hose down applications or corrosive areas.

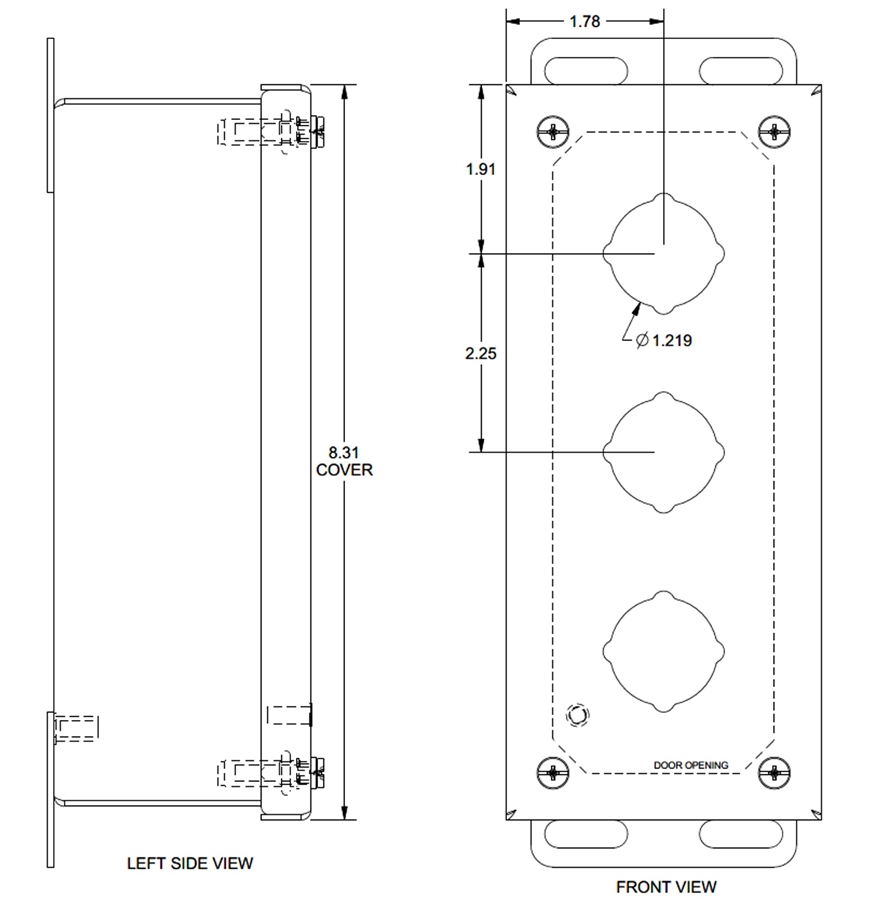

  • 8" H x 3.25" W x 2.75" D (203.2mm x 82.55mm x 69.85mm)
  • Seams are continuously welded
  • Cover screws thread into sealed wells
  • Accepts any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrances
  • Cover is removable
  • Gasket is oil & water resistant
  • Welded mounting provision located on the back at the top and bottom
  • IS5 industry standards - NEMA Type 4, 4x, 12 and Type 13, UL Listed Type 4, 4x, and 12, CSA Type 4, 4x, and 12, IEC 60529, IP 66

Saginaw SCE-3PBSS 3 Position 30.5mm 304 Stainless Steel Push Button Box
