Saginaw Extra Deep Push Button Enclosure, Stainless Steel, 3 Position, 30.5mm

Saginaw Extra Deep Push Button Box, Stainless Steel, 3 Position, 30.5mm

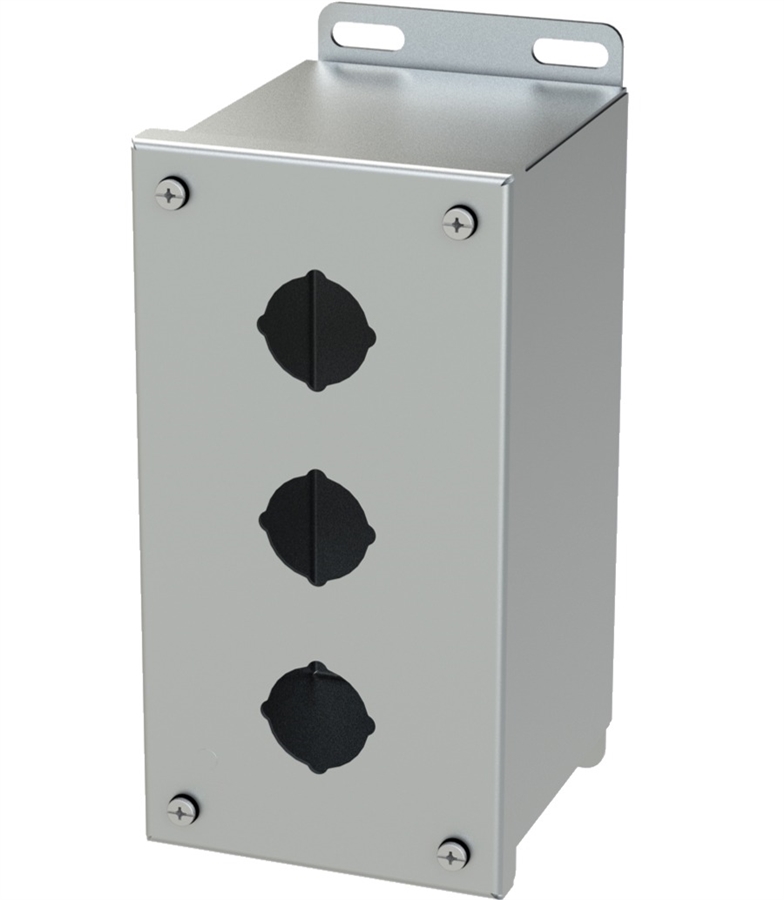

Saginaw SCE-3PBXSS Extra Deep Push Button Enclosure, Stainless Steel, 3 Position, 30.5mm

Alternative Views:
Price: $247.32
MFG P/N: SCE-3PBXSS
MFG: Saginaw Control & Engineering
Weight (lbs): 5



Availability: In Stock
Product Code: SCE-3PBXSS
Qty:

Description


Saginaw Control & Engineering SCE-3PBXSS is a 3 position extra deep push button enclosure. It is made from 0.063" 304 stainless steel with a #4 brushed finish and three 30.5mm pushbutton entrances in a 1x3 layout. Ideal for oil-tight push buttons, switches, and pilot lights when in a corrosive area or for hose down applications.

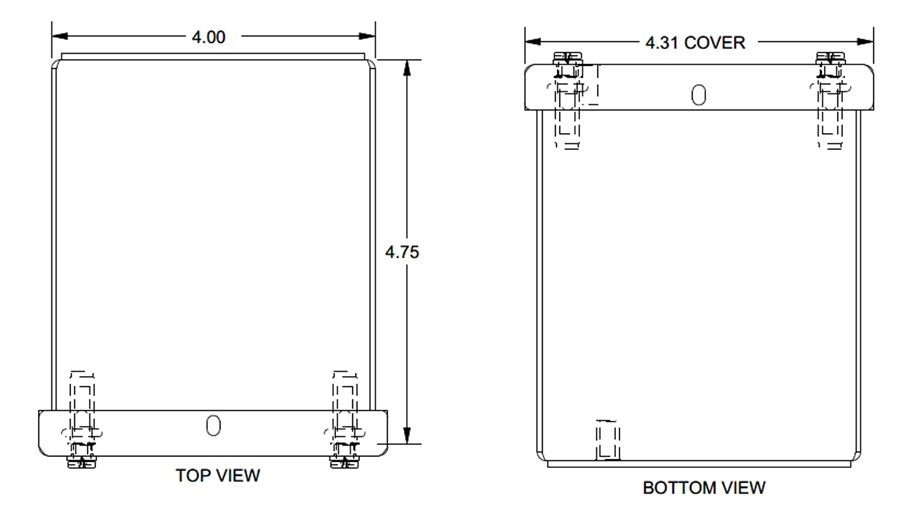

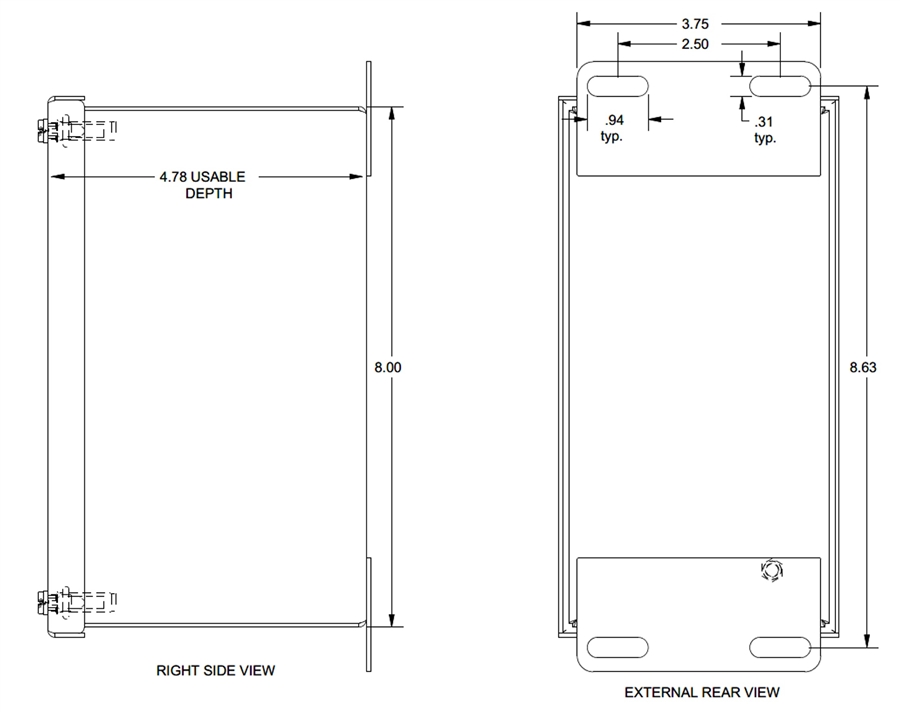

  • 8" H x 4" W x 4.75" D (203.2mm x 101.6mm x 120.65mm)
  • Continuously welded seams
  • Cover screws thread into sealed wells
  • Compatible with any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrance
  • Cover can be immediately removed
  • Oil / water resistant gasket
  • Welded mounting provision located on the back at the top and bottom
  • IS5 industry standards - NEMA Type 4, 4x, 12 and Type 13, UL Listed Type 4, 4x, and 12, CSA Type 4, 4x, and 12, IEC 60529, IP 66

3 Position 30.5mm 304 Stainless Steel Push Button Box Saginaw SCE-3PBXSS
