Saginaw Push Button Enclosure, Stainless Steel, 2 Position, 30.5mm


Saginaw SCE-2PBSS Push Button Box, Stainless Steel, 2 Position, 30.5mm
Saginaw SCE-2PBSS Push Button Enclosure, Stainless Steel, 2 Position, 30.5mm

Alternative Views:


Price: $174.61
MFG P/N: SCE-2PBSS
MFG: Saginaw Control & Engineering
Weight (lbs): 2



Availability:
In Stock
Product Code: SCE-2PBSS
Qty:

Description

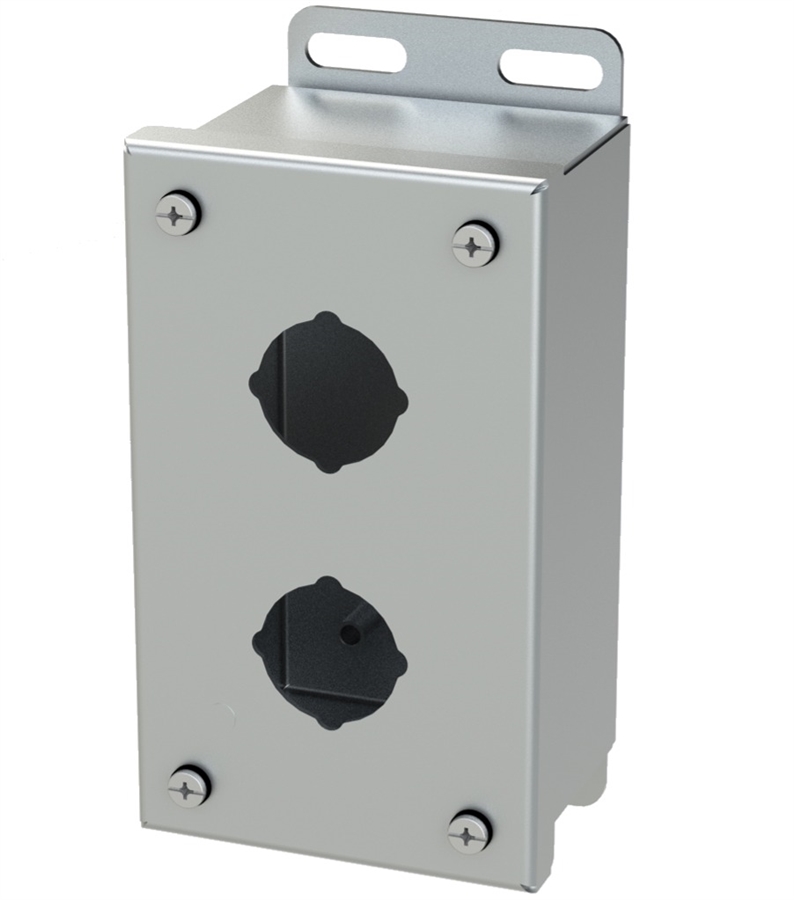

Saginaw Control & Engineering SCE-2PBSS is a 2 position push button enclosure. It is made from 0.063" 304 stainless steel with a #4 brushed finish and two 30.5mm pushbutton entrances in a 1x2 configuration. Used for keeping oil-tight push buttons, switches, and pilot lights protected in corrosive environments or hose down applications.

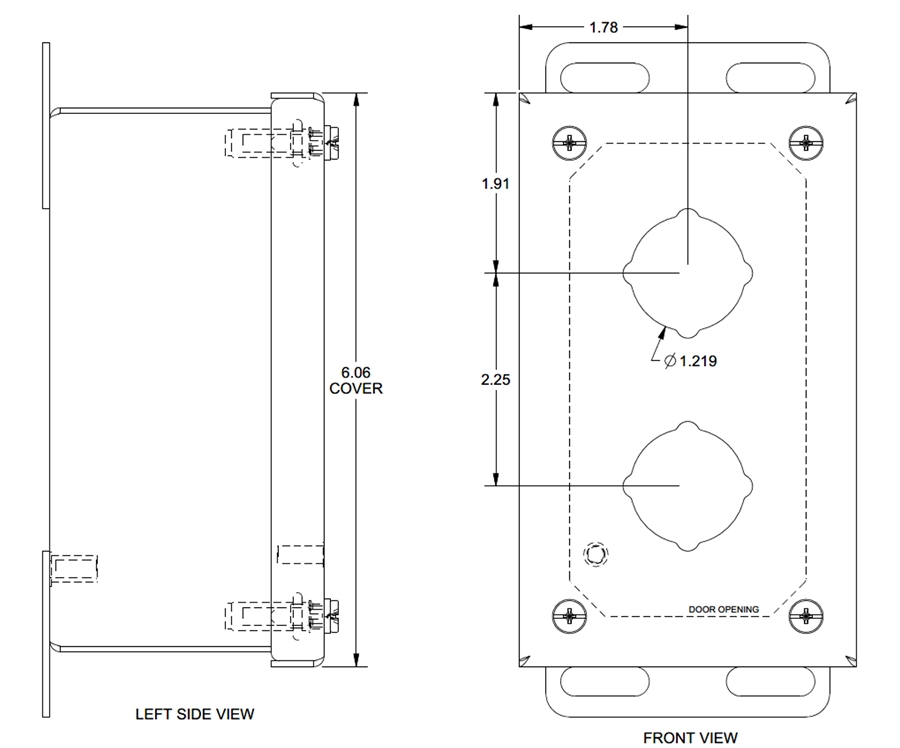

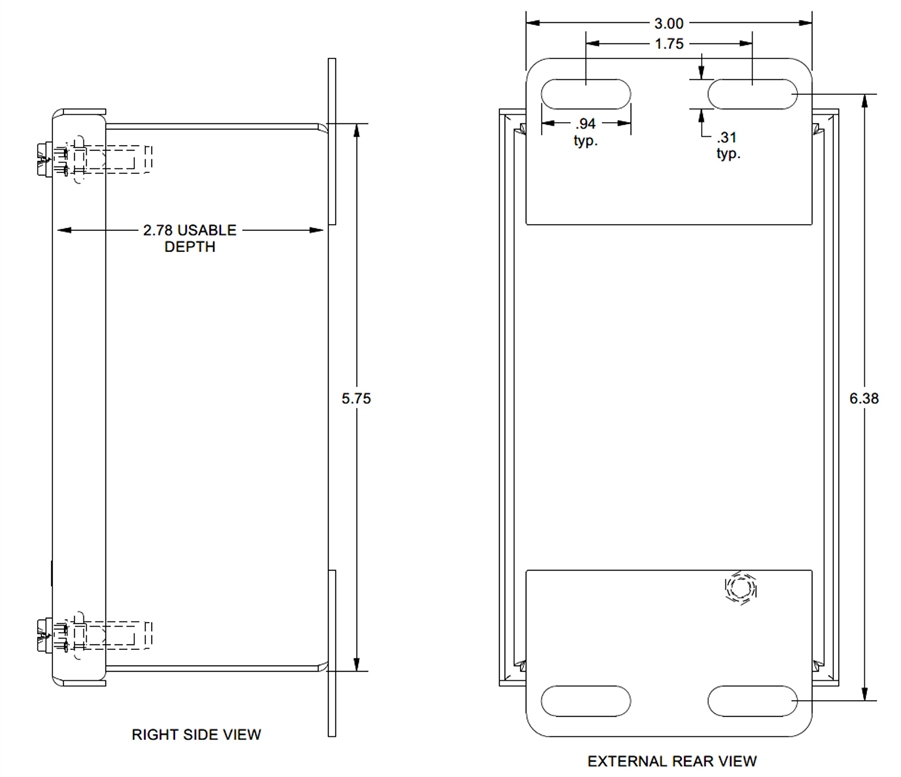

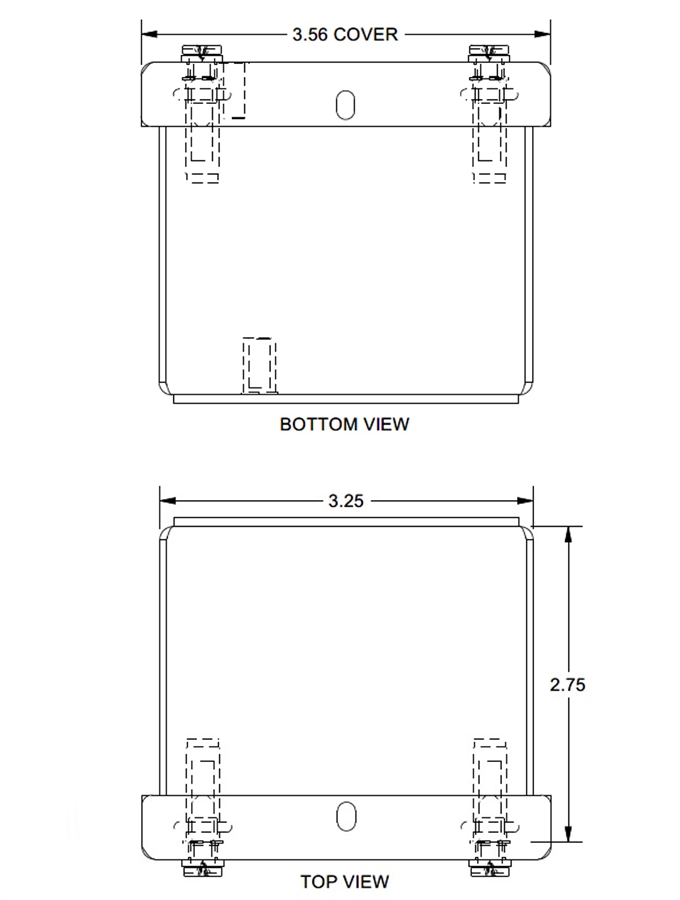

  • 5.75" H x 3.25" W x 2.75" D (146.05mm x 82.55mm x 69.85mm)
  • Seams are continuously welded
  • Cover screws thread into sealed wells
  • Accepts any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrances
  • Cover can be immediately removed
  • Gasket is oil & water resistant
  • Welded mounting provision located on the back at the top and bottom
  • IS5 industry standards - NEMA Type 4, 4x, 12 and Type 13, UL Listed Type 4, 4x, and 12, CSA Type 4, 4x, and 12, IEC 60529, IP 66

Saginaw SCE-2PBSS 2 Position 30.5mm 304 Stainless Steel Push Button Box
