Saginaw Extra Deep Push Button Enclosure, Stainless Steel, 1 Position, 22.5mm

Saginaw Extra Deep Push Button Box, Stainless Steel, 1 Position, 22.5mm
Saginaw SCE-1PBXSSI Extra Deep Push Button Enclosure, Stainless Steel, 1 Position, 22.5mm

Alternative Views:
Price: $185.71
MFG P/N: SCE-1PBXSSI
MFG: Saginaw Control & Engineering
Weight (lbs): 3



Availability: In Stock
Product Code: SCE-1PBXSSI
Qty:

Description


Saginaw Control & Engineering SCE-1PBXSSI is a 1 position extra deep push button enclosure. It is made from 0.063" 304 stainless steel with a #4 brushed finish and a 22.5mm pushbutton entrance. Ideal for keeping oil-tight push buttons, switches, and pilot lights protected in hose down applications or corrosive environments.

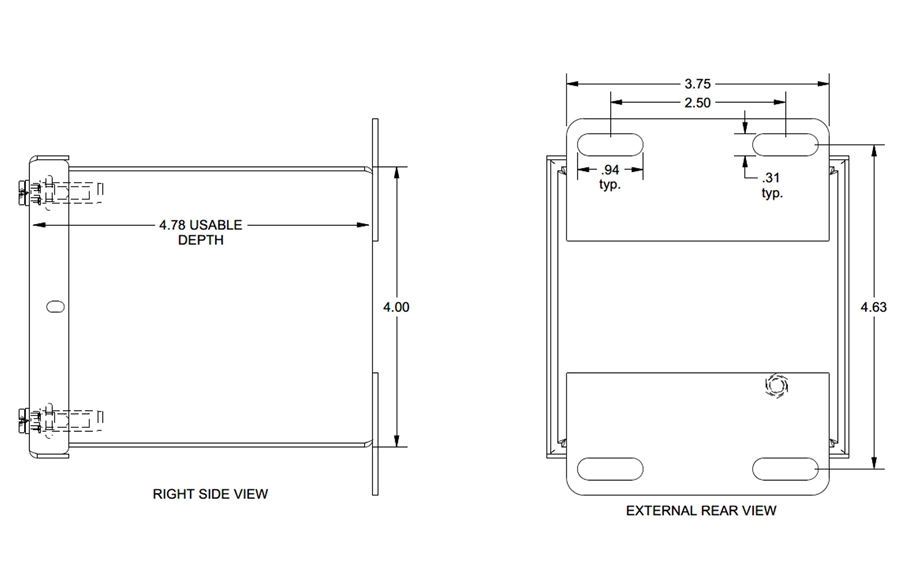

  • 4" H x 4" W x 4.75" D (101.6mm x 101.6mm x 120.65mm)
  • Continuously welded seams
  • Cover screws thread into sealed wells
  • Compatible with any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrance
  • Cover is removable
  • Gasket is oil & water resistant
  • Welded mounting provision located on the back at the top and bottom
  • IS5 industry standards - NEMA Type 4, 4x, 12 and Type 13, UL Listed Type 4, 4x, and 12, CSA Type 4, 4x, and 12, IEC 60529, IP 66

1 Position 22.5mm Stainless Steel Push Button Box Saginaw SCE-1PBXSSI
