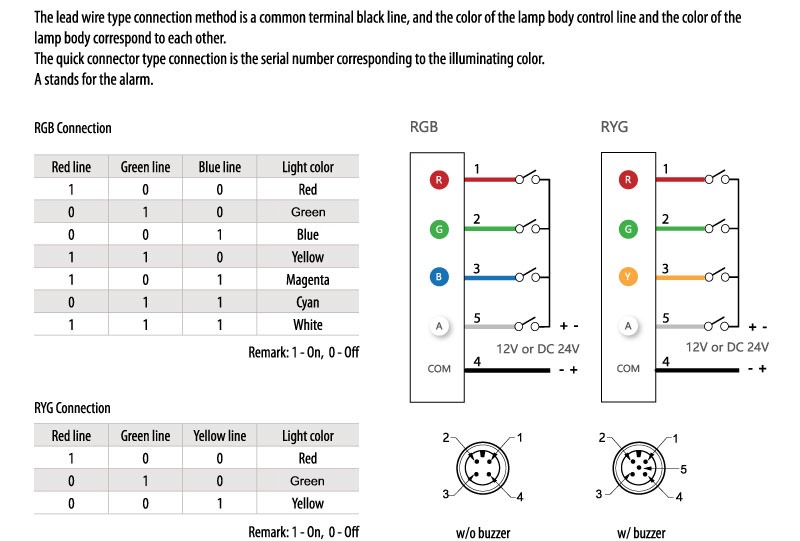

The Qronz RL50BK-ARGB-QD12 50mm LED beacon light is 12V DC with 7 possible colors, a diffused lens, & an alarm with a continuous sound. Male M12 quick disconnect. Steady LED. Colors include red, green, blue, yellow, magenta, cyan, & white (see wiring chart below). The built-in pigtail line resists corrosion and has 105 C temperature resistance. Rated IP 69K.
Specifications
- Voltage- 12V DC
- Current- 160 mA +/-10% (Alarm 30 mA +/-10%)
- Colors- Red, Green, Blue, Yellow, Magenta, Cyan, & White
- Light Style- Steady
- Light Type- LED
- Alarm- 80 dB at 1M @ 2.7KHz +/-500Hz
- Connection- 0.3M PVC Cable w/ 5 Pin Male M12 Quick Disconnect (requiring mating cordset)
- Dimensions- 50.5mm H x 50mm Diameter
- Input Type- Bi-polar Model
- Input Response Time- 10ms max. On/Off
- Operating Temperature- -40 C to 50 C (-40 F to 122 F)
- Body Material- ABS Plastic (70%) / Polycarbonate (30%)
- Lens Material- Polycarbonate
- IP Protection- IEC IP 69K
- Approvals- CE, FCC Certification
|
|
|
 |
|
 |
|
