Qronz 70 mm 4 Stack LED Tower Light, Red Yellow Green Blue, Quick Disconnect, 24V, w/ Alarm


Qronz BTL70BK-AFRYGB-QD24 Red Yellow Green Blue LED Tower Light, Quick Disconnect, 24V
Qronz BTL70BK-AFRYGB-QD24 70 mm 4 Stack LED Tower Light, Red Yellow Green Blue, Quick Disconnect, 24V, w/ Alarm

Alternative Views:


Price: $195.72
MFG P/N: BTL70BK-AFRYGB-QD24
MFG: Qronz
Weight (lbs): 1.2



Availability:
In Stock
Product Code: BTL70BK-AFRYGB-QD24
Qty:

Description


The Qronz BTL70BK-AFRYGB-QD24 4 tier high brightness LED tower signaling light has a 70mm diameter and is rated for 24V DC. Steady light with transparent red, yellow, green, & blue lenses. Has alarm with continuous tone. Male M12 quick disconnect. The integrated pigtail line has 105 C temperature resistance and prevents corrosion. Made for pole mounting. Poles, adapters, and bases sold separately. Rated IP 53.

Accessories needed to mount light:

  1. Light to Pole Adapter
  2. Tower Light Pole
  3. Pole to Base Adapter
  4. Surface Mount or Swivel Mount Base

Specifications

  • Voltage- 24V DC
  • Current- 25mA +/- 10%
  • Alarm Current- 25mA +/- 10%
  • Colors- Red Yellow Green & Blue
  • Light Style- Steady
  • Light Type- High Intensity LED

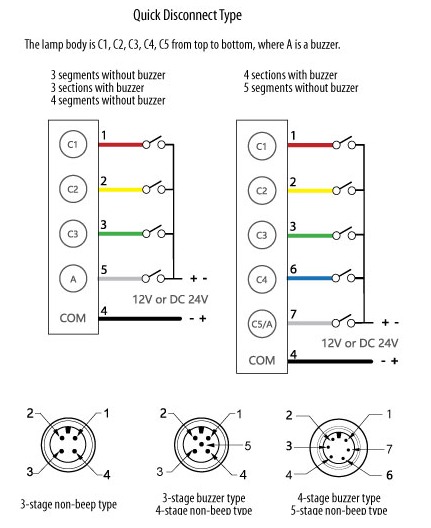

  • Connection- 0.3M PVC Cable w/ Male M12 Quick Disconnect (requires mating cordset)
  • Dimensions- 275mm H x 70mm Diameter
  • Input Type- Bi-polar Model
  • Input Response Time- 10ms max. On/Off
  • Alarm- 95dB at 1M (3.3ft) @ 2.7 KHz +/-500Hz
  • Operating Temperature- -20 C to 50 C (-4 F to 122 F)
  • Material- ABS Plastic (70%) / Polycarbonate (30%)
  • IP Protection- IEC IP 53
  • Approvals- CE, FCC Certification

24V 70mm 4 Tier LED Signal Light BTL70BK-AFRYGB-QD24
