Red Lion N-Tron Multimode, ST Style Managed Gigabit Ethernet Switch, 2 KM, 12 Port

N-Tron 7012FX2 Industrial Ethernet Switch

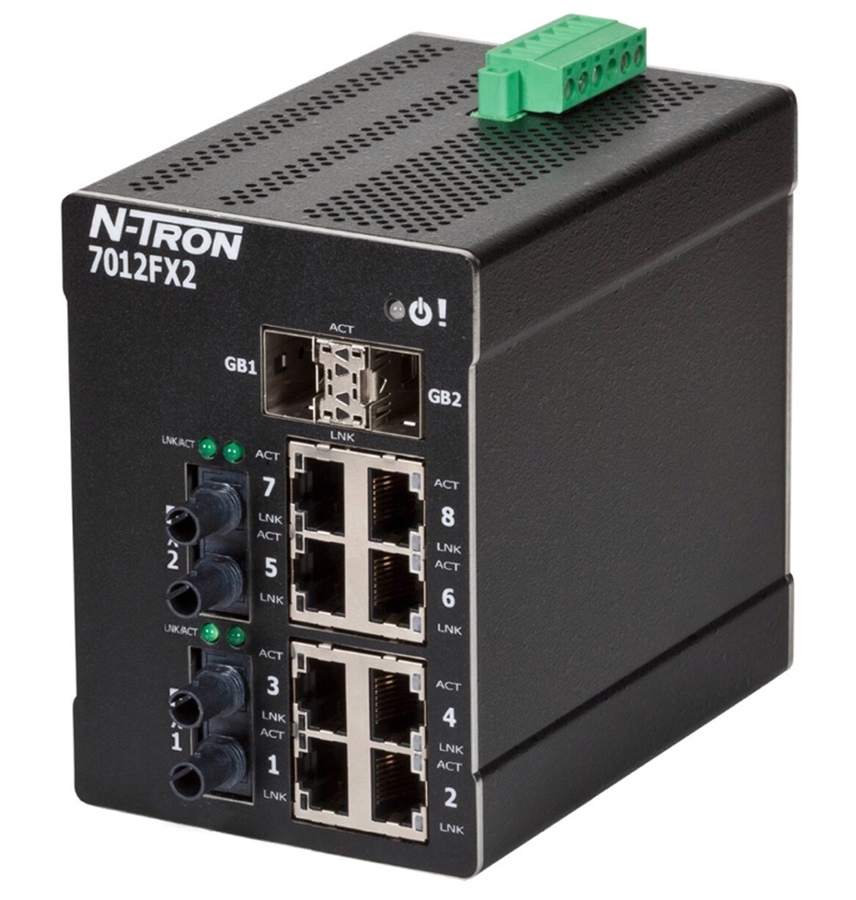

Red Lion N-Tron 7012FX2-ST Multimode, ST Style Managed Gigabit Ethernet Switch, 2 KM, 12 Port

Alternative Views:

Price: $2,358.00

Note: Call 800-966-2345 for Lead Time
MFG P/N: 7012FX2-ST
MFG: Red Lion N-Tron
Weight (lbs): 1.4

Availability: In Stock
Product Code: 7012FX2-ST

Qty:

Description

Technical Specs

The Red Lion N-Tron ^® Series 7012FX2-ST is a fully managed twelve port Industrial Ethernet Switch. Housed in a rugged DIN-Rail enclosure, it features 2km fiber optic multimode cable with an ST style fiber connector. The 7012FX2-ST is compact and made to perform under harsh conditions, especially in industrial, transportation and utility applications.

PRODUCT FEATURES

(8) 10/100BaseTX RJ-45 Ports
(2) 100BaseFX Fiber Ports, ST Style
(2) SFP Gigabit Ports (Modules Sold Separately)
Onboard Temperature Sensor
Store-and-forward Technology
Auto Sensing 10/100BaseTX, Duplex, & MDIX
Redundant Power Inputs (10-49 VDC)
ESD & Surge Protection Diodes on all Ports
Rugged DIN-Rail Enclosure
SNMP v1, v2, v3 & Web Browser Management
Configuration Backup by Optional SD Card
Detailed Ring Map & Fault Location Charting
N-Ring Technology with ~30ms Healing
N-View OPC Monitoring

N-Link Redundant N-Ring Coupling
IGMP Auto Configuration
802.1Q Tag VLAN and Port VLAN
802.1p QoS, Port QoS & DSCP
Ethernet/IP CIP Messaging
Link Layer Discovery Protocol
Trunking
Port Mirroring
IEEE 802.1D RSTP
802.1d, 802.1w, 802.1D RSTP
DHCP Server, Option 82 Relay, Option 61, IP Fallback
Local Port IP Addressing
Port Security- MAC Address Based

The N-TRON 7012FX2-ST Industrial Ethernet Switch features eight 10/100BaseTX copper ports, two 100BaseFX fiber ports and two SFP gigabit ports. The 7012FX2-ST auto-negotiates the speed and performance capabilities of the TX port connections, and can be hard coded via the user interface. The 10/100BaseTX ports on the 7012FX2-ST are auto sensing and auto configuring. A high speed processor permits wire speed capability simultaneously on all ports. The 7012FX2-ST has extended industrial specifications such as greater temperature range, greater shock & vibration specs, and redundant power inputs. The 7012FX2-ST features management functions such as remote monitoring and N-Ring technology. Note: SFP transceiver modules on the 7012FX2-ST are sold separately.

Red Lion N-Tron Series 7012FX2 User Manual

Ethernet Switch with 2 KM Fiber Optic Cable 7012FX2-ST

Additional Product Information

Ideal for factory floor networks, utilities, water treatment plants and traffic control

The web-based interface features a control panel to configure switch options and monitor traffic, trending and alarming. The 7012FX2-ST also features N-TRON N-View OLE for Process Control (OPC) Server Software. N-View can be combined with popular HMI software packages to add monitoring to any application using N-TRON switches configured with the N-View option. There is iSNMP software is available for switch link and status monitoring. The LEDs can be configured to respond to power failure and indicate N-Ring status.

N-Ring Technology provides greater ring size capacity, detailed fault diagnostics, and a standard healing time of approximately 30ms. The 7012FX2-ST Ring Manager checks the health of the Ring via packets. A ring map and fault location chart will be on the Ring Manager's web browser and OPC server. N-Link technology can connect multiple N-Rings and up to 250 switches can be on each N-Ring
