The Red Lion N-Tron
® Series 317FX-SC is an unmanaged seventeen port Industrial Ethernet Switch. Housed in a rugged DIN-Rail enclosure, it features 2km multimode fiber optic cable with an SC style fiber connector. The 317FX-SC is designed for industrial data acquisition, control & Ethernet I/O applications and is made to perform under harsh conditions.

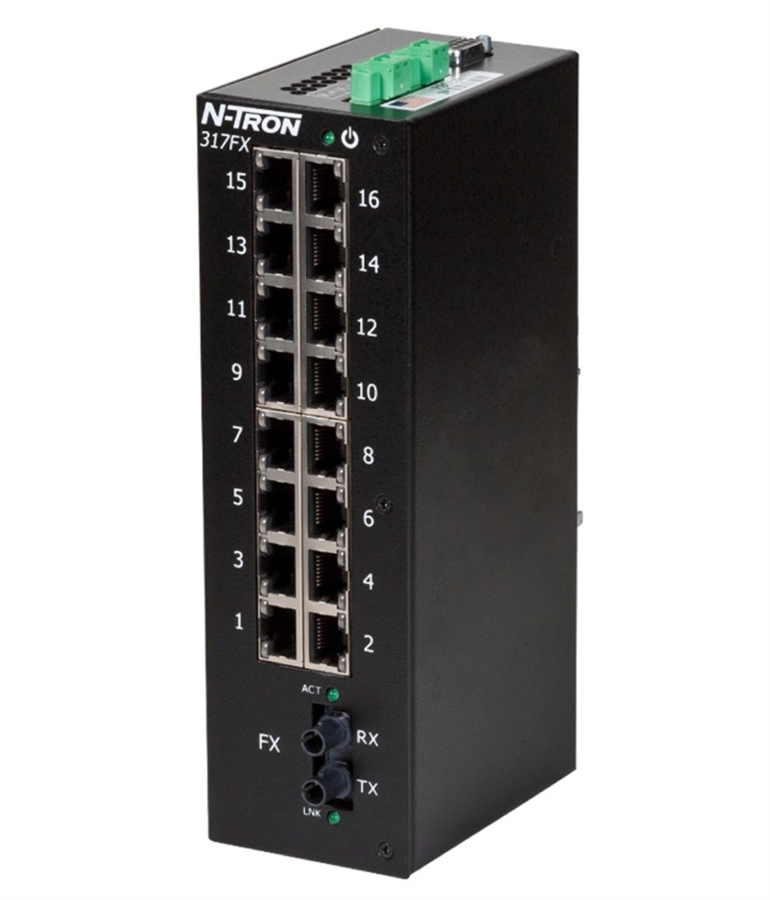

Note: ST model pictured
PRODUCT FEATURES
- Compact Size
- Full IEEE 802.3 and 1613 Compliance
- NEMA TS1/TS2 Compliance
- (16) 10/100BaseTX RJ-45 Ports
- (1) 100BaseFX Port SC
- Extended Environmental Specifications
- Supports Full/Half Duplex Operation
- LED Link/Activity Status Indication
- Auto Sensing Speed and Flow Control
- MDIX Auto Cable Sensing (RJ-45)
- Store-and-forward Technology
- Up to 2.6 Gb/s Maximum Throughput
- Rugged Industrial DIN-Rail Enclosure
- Redundant Power Inputs (10-30V DC)
- Bi-Color Status LEDs for Link, Speed, Activity & Duplex
- Port Control
The N-TRON 317FX-SC Industrial Network Switch is designed to solve the most demanding industrial communications requirements while providing high throughput and minimum downtime. The 317FX-SC provides sixteen RJ-45 auto sensing 10/100BaseTX ports. All TX ports are full/half duplex capable, using "state of the art" Ethernet switching technology. The 317FX-SC auto-negotiates the speed and flow control capabilities of the sixteen TX port connections, and configures itself automatically. The fiber optic port supports full 200Mb/s communications by 100BaseFX. Bi-Color LED's are provided to display the link status and activity of each port, as well as power on/off status. Since the 317FX-SC is auto sensing, there will be no need to make extensive wiring changes if upgrades are made to the host computers, plant systems, or Ethernet I/O modules. The switching fabric simply scales up or down automatically to match your specific network environment. The 317FX-SC supports up to 4,000 MAC addresses, thus enabling these products to support extremely sophisticated and complex network architectures. The N-TRON 317FX-SC is an ideal candidate for upgrading existing hubs and repeaters to increase bandwidth and determinism by virtually eliminating network collisions. The 317FX-SC also keeps the network affordable, while maintaining the plug & play simplicity of the unmanaged hub. The 317FX-SC can simplify plant wiring by eliminating the need to bring data acquisition and control network connections back to a climate controlled environment. The 317FX-SC has extended operating environmental specifications to meet the harsh needs of the industrial environment. For cost savings and convenience the 317FX-SC can be DIN-Rail mounted alongside Ethernet I/O or other industrial equipment. In addition, as with other DIN-Rail devices, the 317FX-SC can be panel mounted. To increase reliability, the 317FX-SC contains redundant power inputs.
