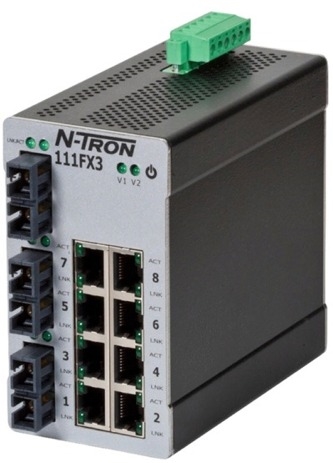

The Red Lion N-Tron
® Series 111FX3-SC is an unmanaged eleven port Industrial Ethernet Switch. Housed in a hardened metal, DIN-Rail enclosure, it features 2km multimode fiber optic cable with an SC style fiber connector. The N-Tron 111FX3-SC is designed for mission critical data acquisition, control & Ethernet I/O applications.
PRODUCT FEATURES
- Compact Space Saving Design
- Unmanaged Operation
- Full IEEE 802.3 Compliance
- (8) 10/100BaseTX RJ-45 Ports
- (3) 100BaseFX Ports, SC Style
- Extended Environmental Specifications
- -40 C to 80 C Operating Temperature
- >2M Hours MTBF
- Supports Full/Half Duplex Operation
- Auto Sensing Duplex, 10/100BaseTX, and MDIX
- Full Wire Speed Communication
- Store-and-forward Technology
- ESD Protection Diodes on all RJ-45 Ports
- Surge Protection Diodes on Power Inputs
- LED Link/Activity Status Indication
- Redundant Power Inputs (10-49 VDC)
- Hardened Metal DIN-Rail Enclosure
The N-TRON 111FX3-SC Industrial Network Switch is designed to solve the most demanding industrial communications requirements while providing high throughput and minimum downtime. The 111FX3-SC is made to operate under harsh conditons, featuring a greater temperature range, resistance to shock & vibration, redundant power inputs and surge protection. The 111FX3-SC comes with a DIN-rail bracket for a fast installation. The 111FX3-SC provides eight RJ-45 auto sensing 10/100BaseTX ports. All ports are full/half duplex capable, using "state of the art" Ethernet switching technology. The 111FX3-SC auto-negotiates the speed and flow control capabilities of all the copper port connections, and configures itself automatically. The three other ports are 100BaseFX fiber optic ports which are useful when EMI immunity or communication over long distances is needed. The 111FX3-SC offers plug-and-play solutions while virtually eliminating network collisions. The 111FX3-SC supports up to 8,000 MAC addresses, thus enabling it to support complex network architectures. The 111FX3-SC also features greater communication processing with store-and-forward programming. The auto-sensing ports on the 111FX3-SC automatically recognize and solve 10/100BaseTX, MDIX, and duplex conflicts. LEDs are provided to display the link status and activity of each port.
Red Lion N-Tron Series 111FX3 User Manual
11 Port Unmanaged N-TRON Ethernet Switch
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
Switch Properties
# of MAC Addresses: 8000
Typical Latency: 2.6 µs
Switching Method: Store-and-Forward

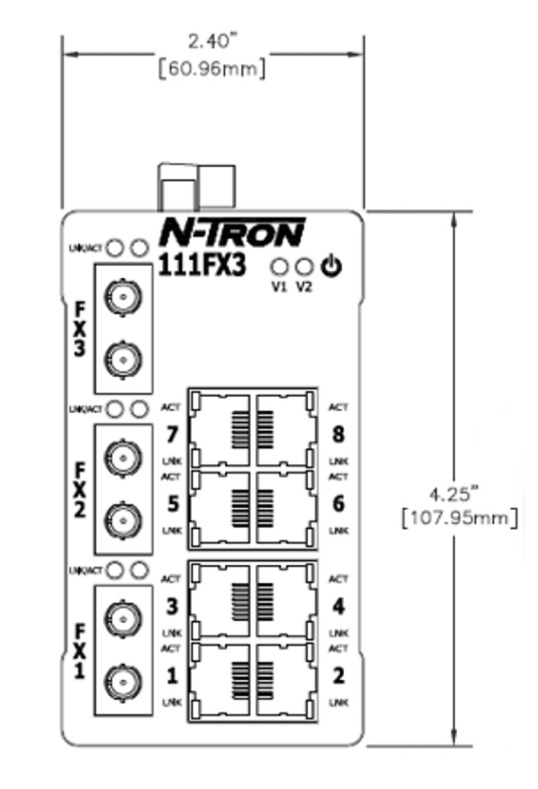

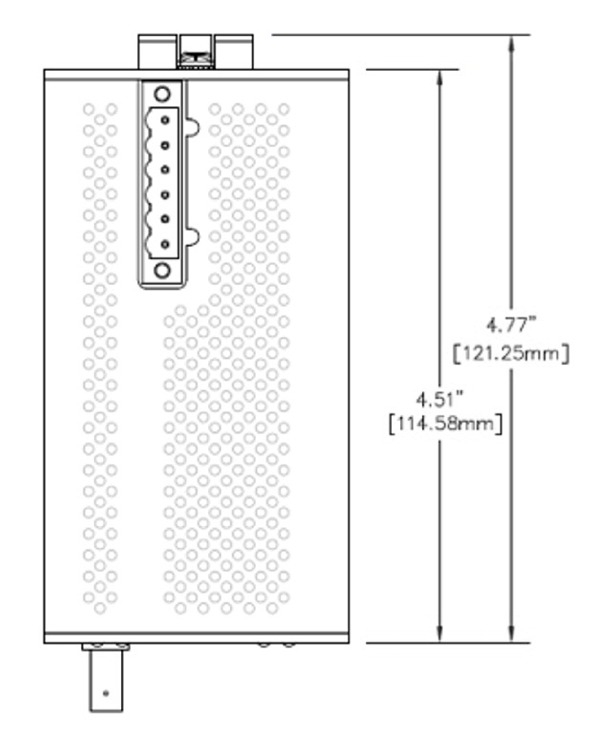

Physical
Height: 4.25" (10.8 cm)
Width: 2.4" (6.1 cm)
Depth: 4.51" (11.46 cm)
Weight: 1.4 lbs. (0.64 kg)
DIN-Rail: 35mm
Fiber Length: 2km (Multimode)
Electrical
Redundant Input: 10-49V DC
Input Current (max.): 410mA@24V
BTU/hr: 33.6@24V DC
N-TRON Power Supply: NTPS-24-1.3 (1.3A@24V)
Environmental
Operating Temperature: -40 C to 80 C
Storage Temperature: -40 C to 85 C
Operating Humidity: 5% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Shock and Vibration (bulkhead mounted)
Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200hz, Triaxial
Reliability
MTBF: >2 Million Hours
Network Media
10BaseT: =Cat3 Cable
100BaseTX: =Cat5 Cable
Connectors
10/100BaseTX: Eight RJ-45 Copper Ports
100BaseFX: Two SC Fiber Duplex Ports
|
|
|
|
|
|
|
