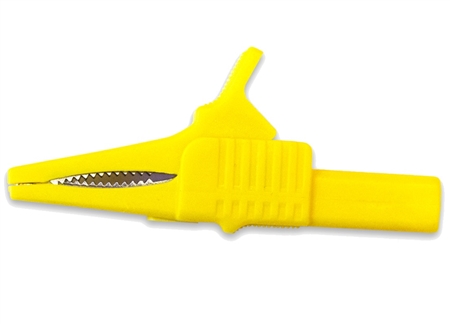

The Mueller BU-65-4 Large Safety Alligator Clip is made from nickel plated steel with a yellow nylon housing. It can mount to a shrouded, unshrouded or retractable 0.16" (4mm) banana plug and has a jaw opening of 0.75" (19mm). It is rated for 30A and 1000V. RoHS 3 Compliant. Sold individually.
Specifications
- Body- Nickel Plated Steel
- Housing- Yellow Nylon
- Dimensions- 3.3" Length x 0.5" Width x 1.4" Height
- Rated Current- 30 Amps
- Rated Voltage- 1000 V Cat II
- Connection- 4 mm Banana Plug
- Jaw Opening- 0.75" (19 mm)
- Approvals- IEC 61010 Compliant, UL Listed, CE Certified
Mueller BU-65 Datasheet
Mueller Yellow Large Safety Alligator Clip
|
|
