Menics 2 Stack LED Tower Light, Red Green, Flashing, 24V

Menics PWEF-202-RG 2 Tier LED Tower Light, Red/Green
Menics PWEF-202-RG 2 Stack LED Tower Light, Red Green, Flashing, 24V

Alternative Views:
Price: $123.96
MFG P/N: PWEF-202-RG
MFG: Menics
Weight (lbs): 1

Quantity in Stock :29


Availability: In Stock
Product Code: PWEF-202-RG
Qty:

Description

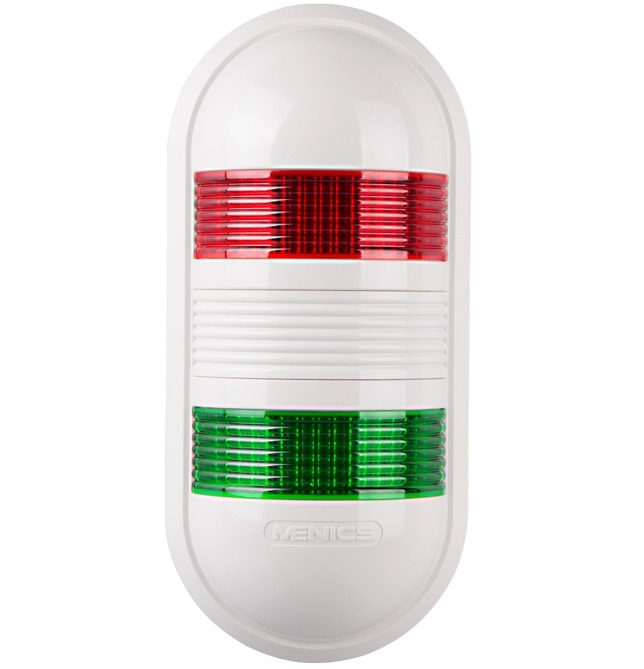

The Menics PWEF-202-RG 2 stack LED tower light has a low profile cream colored housing and is rated for 24V. It has red & green lenses, with steady & flashing lights. Designed for wall mounting, either horizontally or vertically. The signal light itself comes pre-wired with 800 mm (31.5") lead wire. Provides an equal brightness at any angle due to the reflective structure inside the lens. Vibration & moisture resistant. Useful in situations in which a pole mounted tower light would be impractical. Rated IP 65.

Specifications

  • Mounting- Wall Mount
  • Housing Material- White Plastic
  • Lens Material- Polycarbonate Resin
  • Light Operation- Steady & Flashing
  • Power Supply- 24V AC/DC
  • Current Consumption- 0.07 Amps (Red), 0.09 Amps (Green)
  • LED Colors- Red & Green
  • Number of LED Tiers- 2 Stack
  • Dimensions- 194 mm Height x 90 mm Width x 40 mm Depth (7.64" x 3.54" x 1.57")
  • Buzzer- None
  • Flashing Rate- 80 flashes per minute
  • Vibration- 3mm @ 10-55Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- 1007 UL / 22 AWG
  • IP Protection- IP 65 (Total protection from dust and water jets in any direction)
  • Approvals- UL Listed, CE, RoHS

Menics PWEF-202-RG Steady & Flashing Red/Green 24V LED Signal Light
