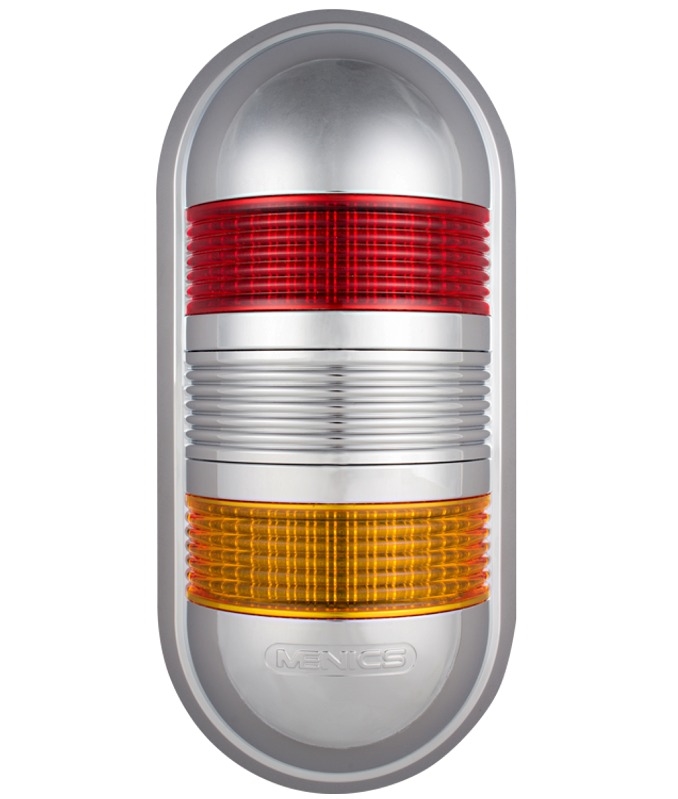

The Menics PWEC-202-RY 2 stack LED tower light has a low profile chrome finish housing and is rated for 24V. It has red & yellow lenses, with a steady light. Made for wall mounting, either horizontally or vertically. The signal light itself comes pre-wired with 800 mm (31.5") lead wire. Provides an equal brightness at any angle due to the reflective structure inside the lens. Resistant to vibration & moisture. Useful in situations in which a pole mounted tower light would be impractical. Rated IP 65.
Specifications
- Mounting- Wall Mount
- Housing Material- Chrome Finish Plastic
- Lens Material- Polycarbonate Resin
- Light Operation- Steady
- Power Supply- 24V AC/DC
- Current Consumption- 0.07 Amps (Red), 0.075 Amps (Yellow)
- LED Colors- Red & Yellow
- Number of LED Tiers- 2 Stack

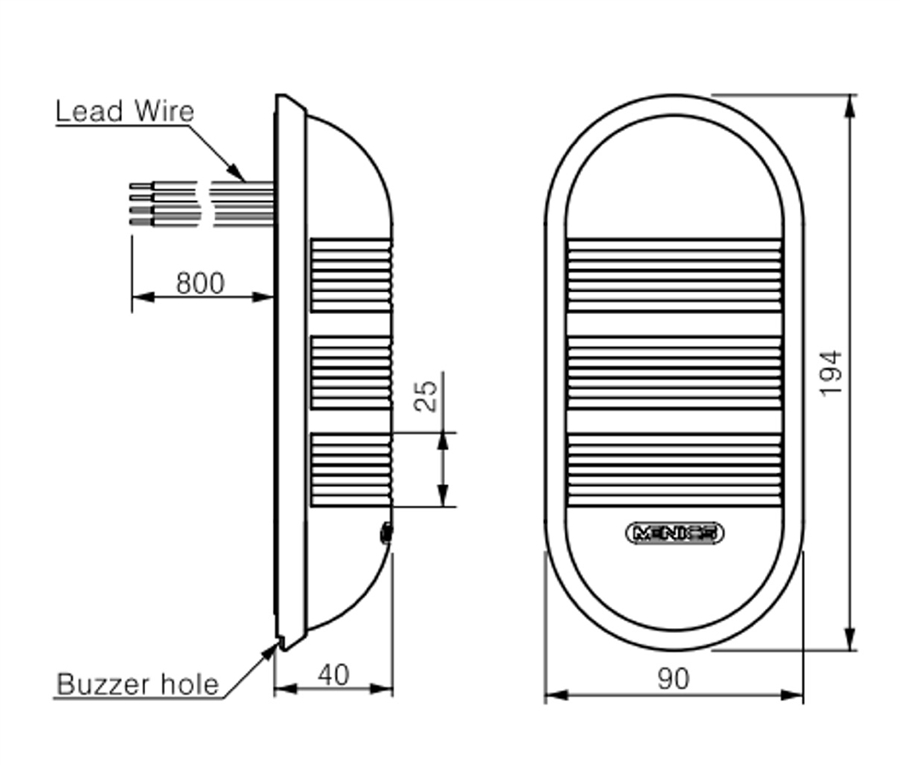

- Dimensions- 194 mm Height x 90 mm Width x 40 mm Depth (7.64" x 3.54" x 1.57")
- Buzzer- None
- Vibration- 3mm @ 10-55Hz
- Ambient Temperature- -15 C to 40 C (5 F to 104 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- 1007 UL / 22 AWG
- IP Protection- IP 65 (Total protection from dust and water jets in any direction)
- Approvals- UL Listed, CE, RoHS
Menics PWEC-202-RY 2 Tier Red & Yellow 24V Chrome LED Signal Light
|
|
|
 |
|
 |
|
