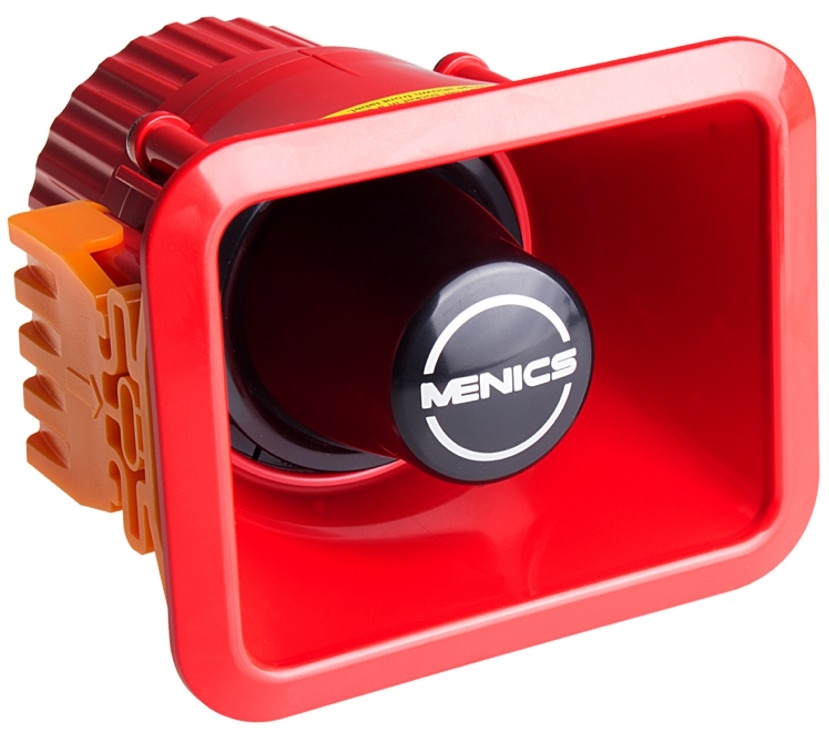

The Menics MSP-TPS-FF-R is a red panel mount alarm buzzer with a terminal connection and a rated voltage of 100-240V AC. Plays one of 3 siren sounds, depending on the connection (see diagram). Features space saving housing. Front panel is rated IP 65, which is ideal for environments with excess dirt, dust, and moisture. Crimping tools are unnecessary due to the one-touch terminal block. RoHS compliant.

Specifications

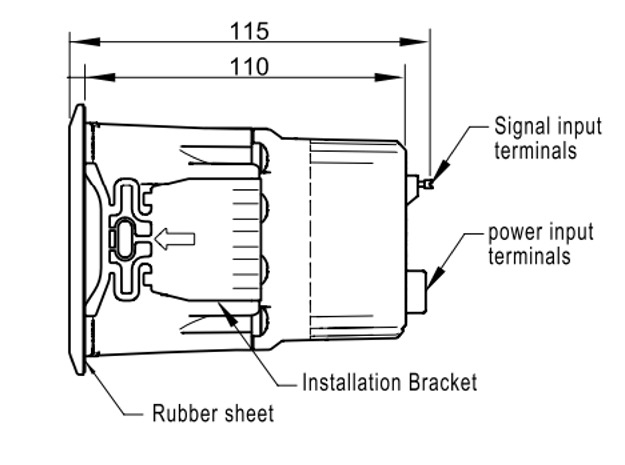

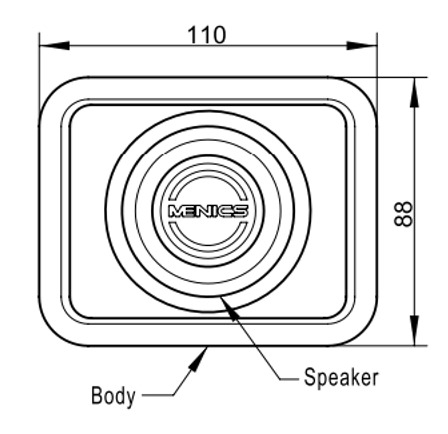

• Alarm Dimensions- 110 mm Width x 88 mm Height x 115 mm Length (4.33" x 3.46" x 4.52")
• Connection- Terminal (see MSP-LPS-FF-R below for model with lead wire connection)
• Mounting- Panel Mount (see MSP-TBS-FF-R below for wall mount version)
• Sound Type- 3 Channel Siren (Fire Truck, Police Car, Ambulance) - see MSP-TPM-FF-R below for 3 channel melody
• Rated Voltage- 100-240V AC
• Current Consumption- 0.13 Amp
• Alarm Housing Color- Red with Black Horn
• Housing Material- ABS Plastic Body with NBR Horn
• Max Volume- 110 decibels (1 Meter)
• Insulation Resistance- Over 100 MOhm (500V DC mega between terminal & case)
• Withstand Voltage- 500V AC 50/60Hz 1 min.
• Operating Temperature- -20 C to 50 C (-4 F to 122 F)
• Storage Temperature- -20 C to 65 C (-4 F to 149 F)
• Operating Humidity- 45-85% Relative Humidity
• Protection Rating- IP 65 (Total protection from dust and water jets from any direction)
• Approvals- RoHS Compliant

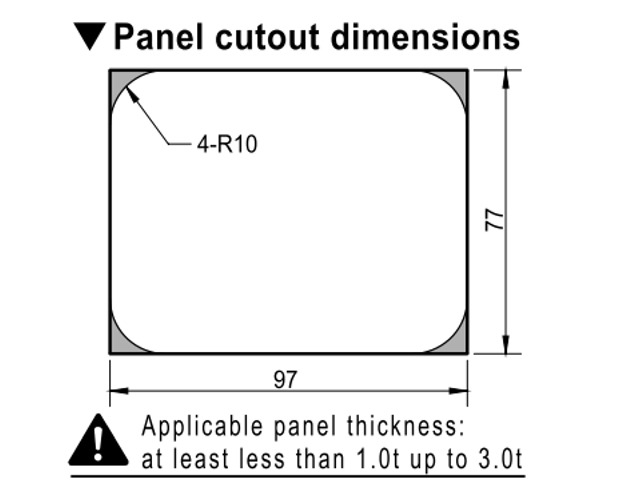

Installation: Use a screwdriver to remove the orange installation brackets on the sides. Insert the speaker into the panel from the front side. Reattach the installation brackets to the housing from the back side of the panel, fixing them with the screws to keep the fixture secure.
