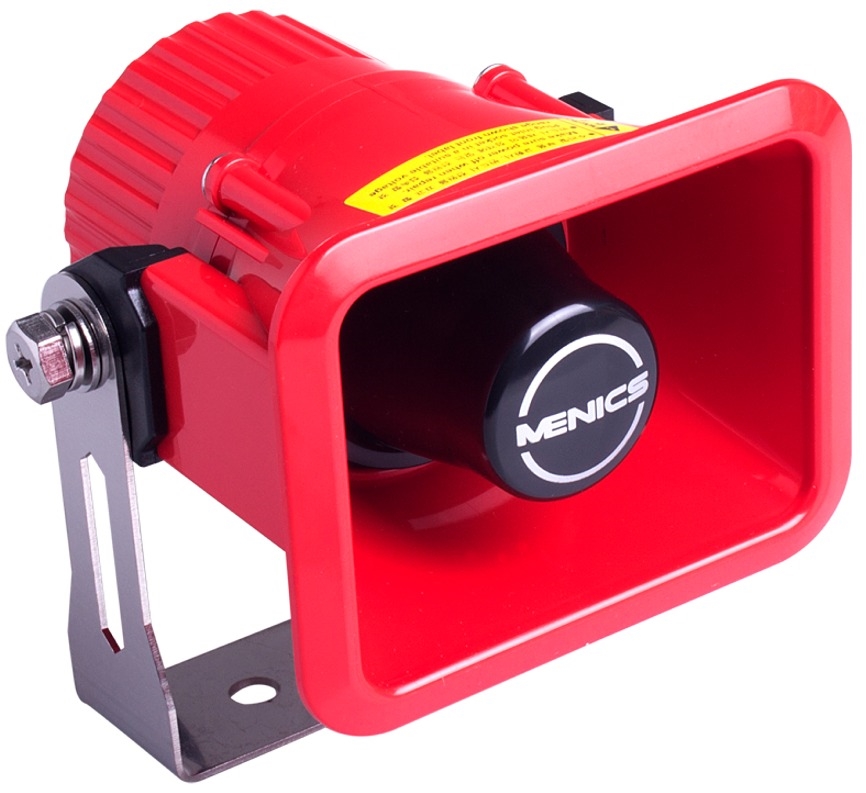

The Menics MSP-LBS-FF-R is a red wall bracket mount alarm buzzer with a lead wire connection and a rated voltage of 100-240V AC. Plays one of 3 siren sounds, depending on the wiring (see diagram). Front panel is rated IP 65, ideal for environments with excess dust or moisture. Features space saving housing. RoHS compliant.
Specifications

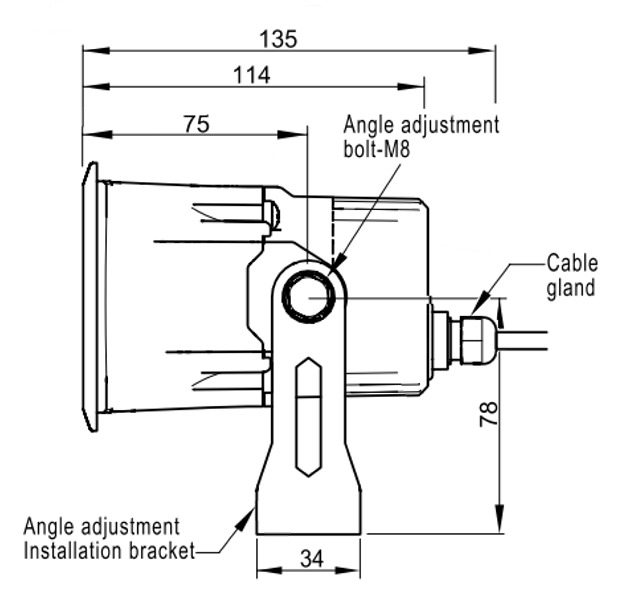

Installation: Two M8 bolts come included with the alarm buzzer and secure the bracket. Bracket mounting holes are 50mm apart. If it is being mounted outdoors the housing needs to face down to prevent water or anything else from collecting inside. Once the bracket is secure, angle the speaker as desired and then tighten the adjustment bolts on the sides (tightening torque: 5-6N.m). Please note that vibration absorbing rubber should be used if mounting in an area with a lot of vibration.
