Mencom M25 0.312" - 0.663" (8 - 17 mm) O.D. Cable Gland, Gray

Mencom PCGU-M25 M25 Gray Strain Relief Fitting
Mencom PCGU-M25 M25 0.312" - 0.663" (8 - 17 mm) O.D. Cable Gland, Gray

Alternative Views:
Price: $2.52
MFG P/N: PCGU-M25
MFG: Mencom
Weight (lbs): 0.02

Quantity in Stock :593


Availability: In Stock
Product Code: PCGU-M25
Qty:


Description

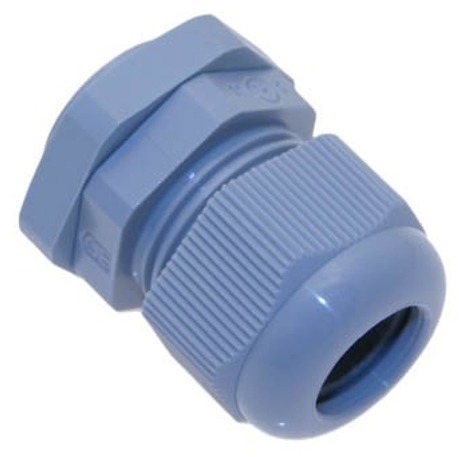

Mencom PCGU-M25 gray plastic cable gland has M25 x 1.5 Thread. Accommodates 0.312" - 0.663" (8 - 17 mm) O.D. cable. Sold Individually. This strain relief fitting has a dual grommet system to accommodate more cable sizes. For larger diameter cables, the inner seal needs to be removed from the outer seal. For smaller cables, no change to the strain relief is needed. Comes with locknut. An O-Ring is not needed for this size. Rated IP 68. UL & CUL Recognized.

Specifications

  • Cord Grip Material - Polyamide
  • Inner Grommet- TPE
  • Outer Grommet- CR/NBR
  • Tightening Torque- 5 Nm
  • Temperature- -20 C to 100 C
  • Color - Gray
  • Mounting Thread- M25 x 1.5
  • Mounting Hole Clearance- 25.2 mm
  • Gland Upper Range- 0.663" (17mm)
  • Gland Lower Range- 0.312" (8mm)
  • Nut- Yes
  • Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)
  • Approvals- UL & CUL Recognized

Mencom M25 x 1.5 8-17mm Gray Cord Grip PCGU-M25
