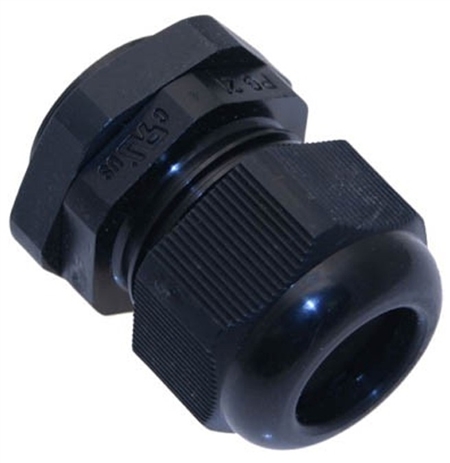

PCG-21-B black plastic cable gland has PG 21 thread. Accommodates .512-.708" (13-18mm) cable. This cord grip is designed to be liquid tight and can be used with ILME enclosures and hoods. The PCG21B can be found in many different applications and industries, as it creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for protection when encountering dirt and moisture.
Temperature Range: -20 C to 100 C. UL & CUL Recognized - Gives strain relief for cable connections
- Tight seal keeps out dirt and moisture
- IP 68-5 BAR rating, which is similar to NEMA 6P
- Withstands up to 5 atmospheres of pressure under water
- Grommet provides the seal around cable
- No O-rings are necessary to reach an IP 68 rated seal against the enclosure
- Raised rings underneath the hex nut provide the seal
- Intended for use with round cables, do not use with flat or ribbon cables.
- Wide clamping range
- UL & CUL Recognized
MENCOM PCG-21-B CABLE GLAND WITH PG 21 THREAD
Cable Gland Material- Polyamide
Grommet- Neoprene
O-Ring- Not necessary for sizes PG 7 to PG 21
Color- Black
Temperature- -20 C to 100 C
Tightening Torque- 7.5 Nm
Mounting Hole Clearance- 28.6 mm (1.125")
Mounting Thread- PG 21
Gland Upper Range- 0.708"
Gland Lower Range- 0.512"
Nut- Yes
Ingress Protection- IP 68
Approvals- UL & CUL Recognized
|
|
|
 |
|
 |
